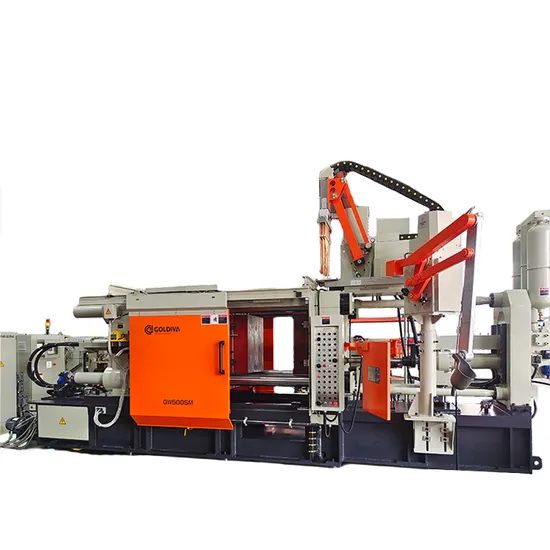

Gw650sm 650t Cold Chamber Die Casting Machine with Servo Motor

Product Description

Product Description

Items	Unit	Technical Parameters
die casting unit
Die Locking Force	KN	6500
Die Stroke	mm	670
Die Height (min.-Max.)	mm	350-900
Platen Dimension (HXV)	mm	1280X1280
Tie-Bar Space (HXV)	mm	850X850
Tie-Bar Diameter	mm	160
Injection Unit
Shot Force	KN	320
Shot Stroke	mm	410
Plunger Diameter	mm	50,60,70
Injection Weight(AI)	Kg	1.5,2.1,2.9
Casting Pressure(Intensification)	MPa	163,113,83
Casting Area	cm²	182,263,357
Casting Area Max.(40MPa)	cm²	750
Shot Position	mm	0,-125
Plunger Following Stroke	mm	155
Shot Sleeve Flange Diameter	mm	120
Shot Sleeve Flange Protrusion	mm	15
Ejector Unit
Ejector Force	KN	300
Ejector Stroke	mm	150
Others
Motor Capacity	kW	37
Working Pressure	MPa	16
Oil Tank Capacity	L	1000
Machine Weight	Kg	30500
Machine Dimensions(LXWXH)	mm	7900X2050X3000

Advantages Introduction for the newly machine GDC300SM
01.Innovative invention patent technology
The cartridge valve can reach 12ms under a small opening angle.
02.Copyrighted flexible control software
Precise slope control, linear descent for proportional valves output, and opening and closing mould parking is smoother and more accurate at any location, repeat accuracy within 1mm.
03.Servo control software with independent intellectual property rights
The problem of frequent impact of servo motor and gear pump has been solved, significantly reducing the number of shocks, which helps servo motors extend 50%-60% service life under the
same hardware
configuration conditions.
04.With humanized "Human-machine interface" and flat modular design, we simplify the parameter management, making it clear and accountable and easy to use with less operation and time, which improve efficiency and productivity.
05. The isolation box for strong and weak power, not only to improve safety, reduce electromagnetic interference and temperature drift, but also to enhance system stability and accuracy.
06.With simple and clear pipeline design of oil circuit, we reduce the number of internal through-hole and straight corner, and lead to less pressure loss, decreasing the heat generated by hydraulic oil.
FREE SWITCHING BETWEEN THICK AND THIN-WALLED PARTS.
DIE CASTING TECHNOLOGY OF 0.38 mm
THINNESS
WHICH IS FASTER THAN OTHER DIE
CASTING MACHINES.
The newly GDC series of cold chamber die casting machine developed , has the original invention patent afast-iniect and cut-off mechanism.
Performance and effect
The processing of thick and thin parts can be freety switched and used for the magnesium and aluminum alloy production at the same time, creating a new era of multi-function that casting wall thickness of the die casting machine is consistent,more powerful and compact.
Performance and effect
Integrated structure of front cylinder cover and bottom manifold
Solider machine with enhanced structure
Longer service life and lower cast
The original integrated cylinder head structure of the injection cylinder on the fully new GOC/GW series of cold chamber die casting machine developed has permanently solves the easily aging and oil leakage problems among the traditional seal-assembled structure between the front cover and bottom valve body. The new integrated structure strengths the firmness of the front cover and installation efficiency after installation.
The newly GDC/GW series of cold chamber die casting machine developed can solve problems when one or more I/O control and power supply of the traditional control system occurs at the same time,including the overall safety control, driver damage easily,system resources waste and the inconvenience of figuring out the alarm content and so on. With the redesign of the circuit and program.it can realize the intelligent division of I/O and multifunctional control of complicated tasks.
The single W/O realizes the intelligent distinction and controllyf enabling, power and many other judgment conditions without adding the port and expansion module, which can reduce the customer's machine cost.
Simplify circuit design to improve reliability
Ensure system safety when the alarm rings in the machine or servo system.
It can solve the frequent impact of servo motor and gear pump, and can prolong 50%-60% Lifetime of the machine.
SLIGHT AMPLITUDE INERTIAL SWING
The series cold chamber die casting machine can solve the problems of traditional die casting machines. including the instabitity of safety door, complicated installation and disassembly procedure low firmness of lifting.The newly designed safety door adopts new lifting structure with slightly inertial oscillations to reduce the pump action's force and save 70% effort,which brings us safer operation environment and higher efficiency with reasonable design.
Performance and effect
Flexible connection, push and pull tight, labor saving 70% + Reduce labor intensity, and simplify operation procedures
Good stability of running and moving with the lubrication design from inside to outside + Convenient and automatic switch of the front and back door
