Low Irom Mirror for Csp Solar Mirror

Product Description

Low Irom Mirror For CSP Solar Mirror
SINOY solar mirror is produced with top grade low iron ultra clear float glass.
Our Solar Mirror has totally 7 coating layers on the back of glass(sensitive layer, super sensitive layer, silver layer, passivation layer, first solar paint protection, second paint protection, resistant UV paint protection).

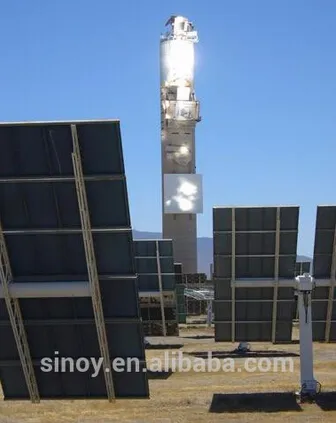

Can be used on Tower, Sterling, solar plant to collect as much light as possible.
Detailed Product Description
1) Made of 1.1m/3mm/3.2mm/4mm low iron ultra clear float glass
2) UV resistant
3) Light reflectivity: > 93.7%
4) Can be used for about 20 years outside.

Performance Parameters

Testing Contents	Performance Parameters
Resistance to Humidity	DIN EN ISO 6270-2 CH 2005: 480 h
Resistance to salt spray	DIN EN ISO 9227 NSS 2006: 480 h
Resistance to CASS	DIN EN ISO 9227 CASS 2006: 120 h
Stability in climatic cycling	4 h: + 90°C; 4 h: -40°C;16 h: DIN EN ISO 6270-2 CH 2005: 10 cycles
Weather O Meter	Combination of light, temperature and water
UV Resistance	UVA 340 at 60°C;39W/sm
ARC Degree	Y=X2/6600 to Y=X2/7080
Concentrating Rate	Measured by Laser Beam over 99%
Reflective Rate	4mm≥93%, 5mm≥92%
Mechanical Strength	69~90MPa

Competitive Advantage

1) More Competitive prices
2) 100% Quality Guarantee
3) Professional export packing
4) Quick Delivery
5) 10 Years export experience
6) Excellent customer service
7) Cash back on product faulty
Packaging & Delivery

Packaging Details:	Packed in seaworthy strong wooden crates or ending-caps with water-proof paper interleaved between each piece, suitable for long-distance sea transportation.
Delivery Detail:	Within 4 weeks after receiving the deposit or L/C at sight
