Finishing Stand High Pass Life HSS Roll for Tmt Bar Wire Rod Structural Steel Hot Rolling Industry

Product Description

Product Description

Brief Introduction of HSS Roll
High-speed steel (HSS) rolls are advanced metallurgical products widely used in the modern steel industry for hot rolling applications. These rolls are known for their exceptional wear resistance, high-temperature hardness, and thermal fatigue resistance. Composed of alloy elements such as tungsten (W), molybdenum (Mo), vanadium (V), and chromium (Cr), HSS rolls exhibit superior durability and performance compared to traditional cast iron and cast steel rolls.
By adopting high-speed steel rolls, steel manufacturers can achieve improved efficiency, lower maintenance costs, and superior product quality.

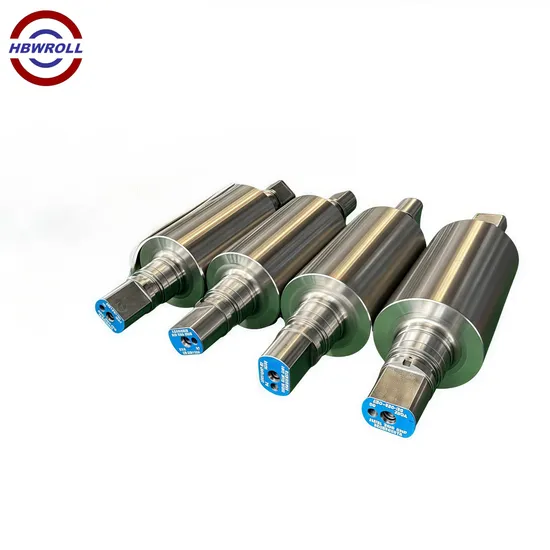

Detailed Photos
Product Parameters
Physical Parameter

	Normal	Enhanced	High Strength	Slitting	Dogbone
Roll Specification	Ø280 - Ø850
Density	7.6 g/cm³	7.8 g/cm³	8 g/cm³	7.6 g/cm³	7.6 g/cm³
Casting	Centrifugal Casting
Heat Treatment	HBW Patented
Hardness	General: 82-89HSD Different range based on stands73-77HSD			73-77HSD	79-83HSD
Hardness Drop	≤3HSD
Rolling Temperature	780ºC-1100ºC
Pass Life	4-5 times than CI Rolls	1.3 tims than HSS Normal	1.5 tims than HSS Normal	24-32 hours Continue Rolling (2-3 times than High-boron Rolls)
Dressing	1.0-1.5mm
Use Periods	8-10 Cycles
Application	Intermediate and Finishing stands in bar mill Fours stands before pre-finishing stands in wire mill Hot strip and plate steel working rolls Section steel universal mill			Slitting stand in bar mill	Dogbone stand in bar mill

Properties	Barrel	Core
Tensile Strength(N/mm²)	≥700MPa	≥450MPa
Compressive Strength	≥2500MPa

Chemical Analysis (Proportion differert based on HSS Grade)

Material

HBW Patented Chemical Composition (%)

HSS Normal

C

Si

Mn

Cr

Ni

Mo

V

W

P & S

Nb

Co

Others

1.5-2.10

0.30-0.7

0.30~1.0

3.00~ 6.00

0.50~1.50

3.0-7.0

2.08.0

1.0-8.0

≤0.03

Depends on HSS Grade

We also have HSS Enhanced& HSS High Strength Grade Material!
(Welcome Inquiry)
Advantage of High-Speed Steel Rolls
1. High Wear Resistance
• Crafted with a generous blend of hard carbides such as tungsten, vanadium, and chromium, these HSS rolls offer unmatched wear resistance, making them a top choice for challenging rolling tasks.
• Perfectly designed for the rigors of rolling high-strength steel, stainless steel, and other demanding materials, ensuring exceptional performance.
2. High Hardness
• Achieving a working layer hardness of 65 HRC or higher, these rolls are engineered to maintain their formidable hardness even when subjected to intense high-temperature conditions.
• A consistently uniform hardness distribution effectively prolongs the service life of the roll, offering enduring reliability.
3. Excellent Thermal Crack Resistance
• Engineered to withstand high-temperature rolling scenarios, the surface is resilient against cracking caused by rapid cooling or thermal stress challenges.
• Exceptionally suited for continuous operations in high-temperature and high-stress settings, showcasing unparalleled durability.
4. Thermal Fatigue Resistance
• With outstanding resistance to thermal fatigue, these rolls deliver stable performance across repeated cycles of heating and cooling, minimizing fatigue crack development.
5. Long Service Life
• Boasting a lifespan 3-6 times greater than traditional cast iron or cast steel rolls, HSS rolls significantly cut down on replacement frequency and downtime, enhancing operational efficiency.
6. Strong Versatility
• Versatile enough for hot rolling processes, excelling both in normal and low temperature rolling environments as well as meeting the stringent surface quality and dimensional accuracy standards.
7. Advanced Manufacturing Technology
• Produced using state-of-the-art centrifugal composite casting technology, these rolls feature HSS as the robust working layer with ductile cast iron as the core, marrying wear resistance with impact toughness seamlessly.
Applications
1. Hot Rolling:
• Used for rolling rebar, wire rods, bars, and plates.

2. Special Material Rolling:
• Suitable for rolling high-strength alloy steel, stainless steel, and other special alloys.
Benefits for Clients
• Reduced Production Costs: Longer service life minimizes replacement frequency and downtime, improving production efficiency.
• Enhanced Product Quality: Provides higher surface finish and dimensional accuracy.
• Energy Efficiency and Environmental Benefits: High wear resistance reduces material waste.
Usage Considerations
1. Proper Installation and Maintenance: Ensure precise fitment with equipment to avoid abnormal wear.
2. Adequate Lubrication: Reduces friction and heat buildup, extending the rolls' service life.
3. Regular Inspection and Replacement: Address wear or cracks promptly to prevent impacts on product quality.
In Summary: High-speed steel rolls are indispensable components in modern steel rolling industries.
HSS Roll's high performance and reliability meet the demands of efficient and precise rolling, making them an ideal choice for improving production efficiency and product quality.
