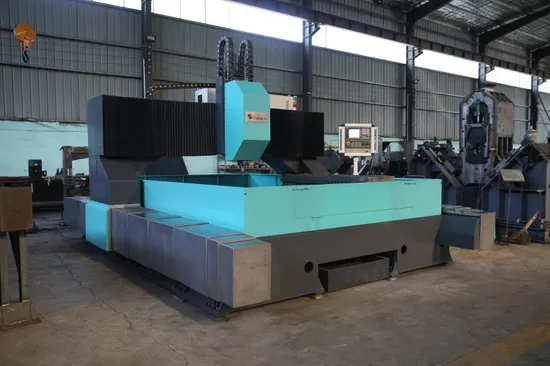

CNC Flange Drilling and Milling Machine

Product Description

Our Advantages
CNC DRILLING MACHINE FOR STEEL PLATE STEEL TUBESHEET AND FLANGE Apply scope:
The machine is mainly used for drilling and milling of steel structure,iron tower,bridge,mechanical processing and other industries,such as connecting plate and floor board,drilling and milling of tubes,baffles and flanges in industries such as boiler,
petrochemical,pressure vessel and so on;drilling holes,blind holes,step holes,chamfering and light milling.

Product structure:
This machine is mainly composed of bed,gantry,drilling and milling power head,electric control system,centralized lubrication system,cooling system and chips removal system etc.
The characteristics:
1.The bed is made of high quality gray cast iron, no need foundation.
2.Double side lead screw synchronous driving system, stable performance, flexible movement, accurate positioning.
3.Adopting slide head drilling and milling power head, it can realize the automatic conversion of fast forward, drillng and quickly, and has the function of automatic chip breaking.
4.Adopt BT50 high speed internal cooling precision spindle, can adopt hard alloy internal cold drill bit, processing efficiency is high.
5.Equipped with pneumatic knife cylinder automatic knife replacement, optional tool magazine.
6. KND CNC system+ servo motor control, can directly transfer Auto CAD drawings to general processing program.
7.Automatic chip removal, cooling liquid recycling.
Technical parameters:

Model		PHD1616	PHD2016	PHD2020
Processing size	LxW(mm)	1600x1600	2000x1600	2000x2000
	Thickness(mm)	15-100
Drilling spindle	Quan. of spindle	1
	Model of spindle	BT50
	Speed of spindle(r/min)	30-4500
	Feeding stroke(mm)	260(Servo feeding)
	Tapping diameter(mm)	M20
Clamping mode		Manual
Power of motor	Spindle motor(KW)	7.5 /11(Servo motor)
	X-axis(KW)	2×2.3
	Y- axis(KW)	2.3
	Z- axis(KW)	2.3 (with brake)
Precision of positioning(mm)		0.1
Precision of repeating positioning(mm)		0.08
Control mode		KND CNC system, model: KND1000
Weight of machine(T)		5.5	6.6	7.2
Dimension(m)		3800x2050x2750	4200x2450x2750	4200x2850x2750
Optional- Tool magazine		6units of Straight tools
Optional- automatic clamp		12 units of hydraulic clamper
