CNC Press Brake Plate Bending Machine for Sheet Metal Folding Bender Folder

Product Description

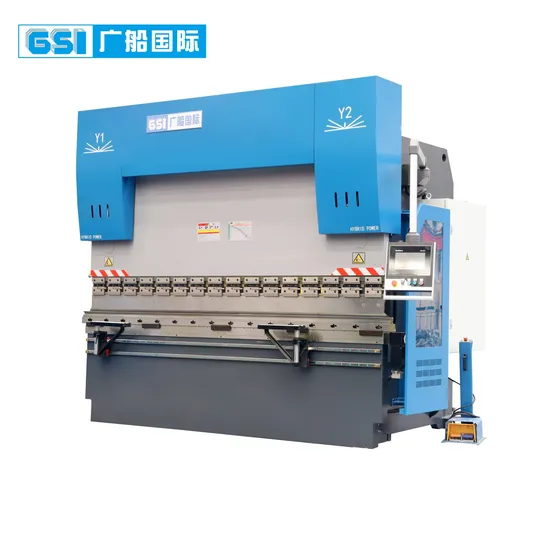

Product Description WE125/2500 Hybrid CNC Press Brake
1. Adopt oil-electric hybrid technology to achieve high efficiency, energy saving, environmental protection and low noise of the machine.
2. Supply oil on demand, reduce overflow, effectively reduce oil temperature, and extend the service life of hydraulic system and components.
3. Electro-hydraulic servo valve system, full closed-loop control slider synchronization, accuracy 0.01mm.
4. The whole machine adopts all steel plate welding structure.
5. Use CNC system to control the hydraulic deflection compensation device.
6. The rear stop is equipped with high-performance servo motor and ball screw.
7. The upper slider is equipped with a wedge type deflection compensation mechanism.
8. You can choose the square multi-V die or the same core double V die.
DETAILED IMAGE
Quick Clamp
The standard equipped fast clamp will help you replace the top punch in very short time. Convenient and time-saving. Fast intermediate loading and unloading function to improve work efficiency. Front Supportor With Linear Guide Rail
Installed on the front of the workbench and moving along the linear guide rail. It can be arked at any position,with rotation and height adjustment functions to help you to bend.
Electrical Cabinet
1. The electrical components mainly adopt the French brand, which meets international standards, is safe and reliable, and has strong anti-interference ability.
2. The wiring of the electrical cabinet is reasonable and clear, easy to repair or troubleshoot, and has good heat dissipation effect. Main Servo Motor
The main motor adopts servo motor, which has small pressure leakage loss during standby and pressure maintaining, significant energy-saving effect, indirect carbon emission reduction, environmental protection and efficiency; The reduction of oil volume reduces the disposal of waste hydraulic oil; Low noise, improving the working environment of operators. HIWIN Ball Screw
Adopt the HIWIN brand from Taiwan Ball Screw and guide linear , promise the high precision and speed when working.
OPKON Magnetic Railing Ruler
A magnetic grating ruler imported from Germany is installed on the C-shaped plates on both sides of the rack to detect and feed back the synchronous movement status of the two oil cylinders to control the stroke position of the sliding block. CNC Control System GSI GT15 (Standard)
-- 15'' high-definition true color touch screen, 1920 × 1080 pixels.
-- Quad core CPU, turn on in 5 seconds.
-- Standard 4+1 axes, can be expanded up to 6+1 axes.
-- 2D graphical programming.
-- Switch self diagnosis.
-- The back gauge retreat function.
-- High speed bending function.
-- Standard USB interface, multi workpiece storage function.
-- Angle compensation function.
-- Special functions: bridge function, large arc bending, one click backup and recovery factory function.
-- Wireless remote control.
CNC System (Optional)
Main Technical Parameters of WE Series Hybrid CNC Bending Machine

No.	Model	Nominal Pressure (kN)	Table Length (mm)	Distance Between Columns (mm)	Throat Depth (mm)	Slide Stroke (mm)	Opening Height (mm)	Main Motor Power(kw)	Back Gauge Operating Range (mm)	Speed (mm/s)			Overall Dimension			Weight (kg)
										Approaching	Working	Return	L(mm)	W(mm)	H(mm)
1	WE40/1500	400	1500	1160	320	160	410	5.7	600	180	0~16	180	2300	1510	2535	4000
2	WE50/2000	500	2000	1500	320	160	410	5.7	600	180	0~16	180	2600	1560	2545	4500
3	WE63/2500	630	2500	2000	320	160	450	7.5	600	180	0~16	180	3100	1500	2600	5500
4	WE80/2500	800	2500	2000	400	200	470	7.5	600	180	0~15	180	3100	1650	2675	6000
5	WE100/2500	1000	2500	2000	400	250	525	8.5	600	180	0~15	180	3100	1650	2750	6500
6	WE100/3200	1000	3200	2700	400	250	525	8.5	600	180	0~15	180	3800	1650	2800	8000
7	WE100/4000	1000	4000	3500	400	250	525	8.5	600	180	0~15	180	4600	1650	2800	9000
8	WE125/2500	1250	2500	2000	400	250	525	12.5	600	160	0~14	160	3100	1700	2700	8000
9	WE125/3200	1250	3200	2700	400	250	525	12.5	600	160	0~14	160	3800	1700	2750	8500
10	WE125/4000	1250	4000	3500	400	250	525	12.5	600	160	0~14	160	4600	1700	2985	9500
11	WE160/3200	1600	3200	2700	400	250	525	17.8	600	160	0~13	160	3800	1800	2850	9000
12	WE160/4000	1600	4000	3500	400	250	525	17.8	600	160	0~13	160	4600	1800	2850	10500
13	WE160/5000	1600	5000	4100	400	250	525	17.8	600	160	0~13	160	5600	1800	3000	12000
14	WE160/6000	1600	6000	5100	400	250	525	17.8	600	160	0~13	160	6600	1800	3200	15500
15	WE200/3200	2000	3200	2700	400	250	550	21.4	600	150	0~12	150	3800	1800	2850	12000
16	WE200/4000	2000	4000	3300	400	250	550	21.4	600	150	0~12	150	4600	1800	3050	14000
17	WE200/5000	2000	5000	4100	400	250	550	21.4	600	150	0~12	150	5600	1800	3150	15500
18	WE200/6000	2000	6000	5100	400	250	550	21.4	600	150	0~12	150	6600	1800	3300	18000
19	WE250/3200	2500	3200	2700	400	250	550	21.4	600	135	0~10	135	3800	1900	3100	14500
20	WE250/4000	2500	4000	3300	400	250	550	21.4	600	135	0~10	135	4600	1900	3200	16000
21	WE250/5000	2500	5000	4100	400	250	550	21.4	600	135	0~10	135	5600	1900	3350	17500
22	WE250/6000	2500	6000	5100	400	250	550	21.4	600	135	0~10	135	6600	1900	3500	21000
23	WE320/3200	3200	3200	2700	400	300	600	25.1	600	100	0~10	100	3800	2100	3200	17500
24	WE320/4000	3200	4000	3300	400	300	600	25.1	600	100	0~10	100	4600	2100	3300	20000
25	WE320/5000	3200	5000	4100	400	300	600	25.1	600	100	0~10	100	5600	2100	3600	24500
26	WE320/6000	3200	6000	5100	400	300	600	25.1	600	100	0~10	100	6600	2100	3850	29000
27	WE400/3200	4000	3200	2700	400	300	620	31.2	600	80	0~10	80	3800	2500	3600	23000
28	WE400/4000	4000	4000	3200	400	300	620	31.2	600	80	0~10	80	4600	2500	3850	28000

View more products , pls click here
https://gsi--tfm.en.made-in-china.com/product-list-1.html
Company Profile
Guangdong GSI Elevator Electromechanical Equipment Company Limited started to introduce international technology since 1983 and produce hydraulic plate shears, hydraulic press brake and grooving machines. In China, it is one of the earliest enterprises to produce hydraulic plate shears and hydraulic press brake. After more than 40 years of technology development, improvement and innovation, more than 100 patented technologies have been obtained, with the technical level of the products continuously improving. And the products have been exported to all over the world.
