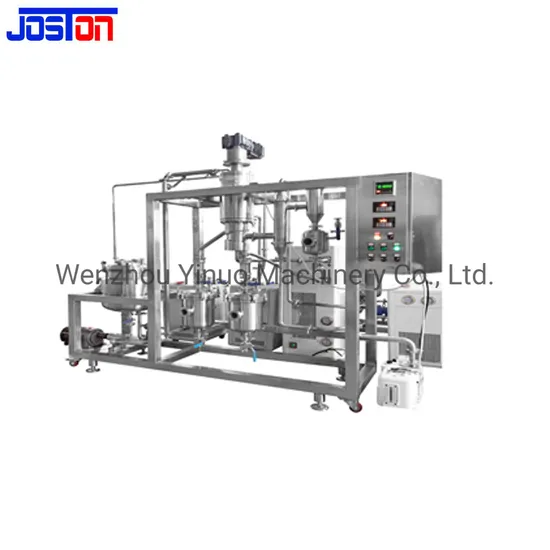

SS316L Hemp Oil Fish Oil Flower Oil Making Evaporator Agitated Film Vacuum Short Path Molecular Distillation Machine

Product Description

Short path molecular distillation (short-path distillation) is a new separation technique that addresses the problems that conventional distillation techniques cannot solve. It can achieve "liquid-liquid" separation at very low vacuum according to the mean free path difference of molecular motion under the temperature of much lower than the liquid boiling point; Mainly the use of scraper system forcing liquid film evaporation or distillation of a highly efficient evaporation, distillation equipment, deodorization, degassing reaction and supporting heating, cooling and other unit operations, can be widely used in food, fine chemicals , Electronic materials, plastic engineering and polymer (such as polyols, fatty acids, polyphenols, polyurethanes, epoxy resins, milk fat, GMS, flavors and fragrances, heavy oil and paraffin oil) purification and so on. The system can also be used to recover organic solvents from industrial effluents. Especially suitable for high boiling point, heat-sensitive, easily oxidized material separation and purification.
Principle of molecular distillation process:
The separation process is as shown in the figure. The material is added from the top of the evaporator and distributed continuously and uniformly on the heating surface through the material-liquid distributor. The film scraper scrapes the product into a very thin, turbulent liquid film. In this process, the light molecules escaping from the heating surface reach the condenser and condense into liquid, and flow down the condenser tube, and discharge through the discharge tube at the bottom of the evaporator; Residues, or heavy molecules, are collected in a circular channel under the heating zone and then discharged through a side discharge tube.
Features:
1. Jacketed pipeline has a good heat preservation.
When the melting point of material is higher than room temperature,will not congeal in pipeline.
2. Continous feeding with high precision gear pump.
The material flow rate does not change with pressure difference,as long as the set speed is the same, the delivery amounts is same.
3. Continous to discharge with two high precision gear pumps.
4. Connection with heater and chiller, convenient and ordered.
5. Large condenser area, high evaporation rate.

Advantages:
1. Short residense time.
2. High evaporation rate.
3. Low processing temperature.
4. Low vacuum.
5. Contionous feeding and discharging.
6. Plug and play.
7. High-thermal conductivity,high efficiency.
8. Durable in use.

Product model	evaporation tube specifications Φ (mm)	Evaporation tube heat transfer area(m2)	Built-in cooling area (m2)	Constant pressure feeding bottle( L)	Sample throughput (L/H)	Motor power (W)	motor speed (rpm)
FZ-60	60	0.05	0.03	1	0.8	140	800
FZ-80	80	0.1	0.25	1	1.5	140	800
FZ-100	100	0.15	0.3	1	3	180	800
FZ-150	150	0.25	0.4	2	5	180	800
FZ-200	200	0.4	0.5	3	8	250	800
FZ-300	300	0.6	0.8	5	10	250	500

SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)
