7 Inch 1080P Wireless Forklift Camera Monitoring System

Product Description

Product Description
7 inch 1080P Wireless Forklift Monitoring System

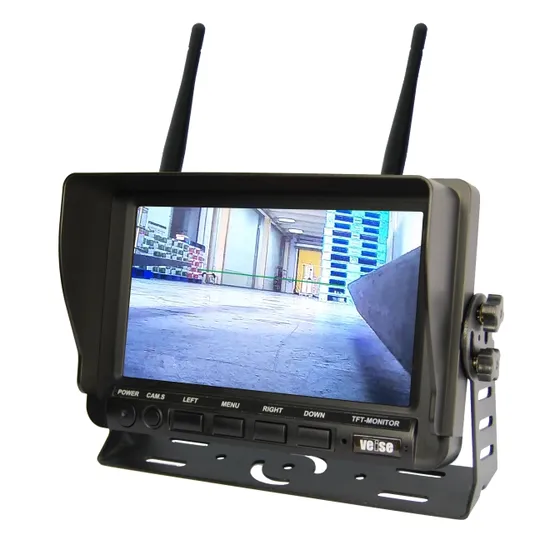

7 inch 2.4GHz digital wireless monitor (MWHD-774H)
Features ♦ 7 inch 2.4GHz digital wireless monitor♦Multi-frequency hopping frequency automatic code matching♦Open transmission distance 100 meters♦Automotive industrial grade digital video processor♦High temperature resistant ABS+PC plastic shell♦Detachable sun hat to prevent sunlight♦U-shaped bilateral fastened seismic metal support♦1024RGBX600 high resolution♦Anti-load-dump pulse voltage design♦DC8~32V wide range working voltage♦Built-in reverse polarity, LED constant current, load dump pulse voltage suppression protection

System model	HDWS-774H23B2M1
Waterproof Wireless High-Definition LCD Monitor (MWHD-774H)
Color LCD screen	7-inch IPS screen
Wireless reception	Built-in 2.4G wireless receiver
Picture mode	1/2/3/4 Split Mode
working frequency	2400~2483.5MHZ
Receiving sensitivity	≤-86 dB
Receiving distance	Open ≤100m
Multi-frequency automatic frequency hopping channel code ion	80
Resolution	1024(H) X 600(V)dot
Color system	PAL/NTSC (AUTO)
Brightness(cd/m2)	600
Load dump	DC24+174V(Td350mS) 5pulses
Vibration resistance level	5G (conforms to GB-T2423056-2006 standard)
Working temperature	-20ºC to +70ºC
Storage temperature	-30ºC to +80ºC
Working voltage	DC8-32V
Dimensions	(L x W x T) (216 x 150 x 80mm)

7 inch 2.4GHz digital wireless monitorMulti-frequency hopping frequency automatic code matchingOpen transmission distance 100 metersAutomotive industrial grade digital video processorHigh temperature resistant ABS+PC plastic shellDetachable sun hat to prevent sunlightU-shaped bilateral fastened seismic metal support1024RGBX600 high resolutionAnti-load-dump pulse voltage designDC8~32V wide range working voltageBuilt-in reverse polarity, LED constant current, load dump pulse voltage suppression protection
1080P 2.4GHz Digital Wireless Integrated Battery Laser Light Positioning Camera (CWHD-23B2M)
Features
♦Car regulation DSP million high-definition pixels♦Stainless steel anti-collision chassis♦Built-in green word laser positioning♦Waterproof grade IP69K♦PVC cold-resistant tail cable, fast snap-on waterproof interface

Car regulation DSP million high-definition pixelsStainless steel anti-collision chassisBuilt-in green word laser positioningWaterproof grade IP69KPVC cold-resistant tail cable, fast snap-on waterproof interface

1080P Wireless All-in-one Battery Laser Positioning Forklift Camera (CWHD-23B2M)
Image sensor	1/2.9 Color DSP
Wireless transmission	Built-in 2.4G digital wireless transmitter
Transmit power	18dBm
Launch distance	Open area≤100m
Resolution	1080P
effective pixels	1920(H) X 1080(V)
Viewing angle	52°
Laser positioning	Green word laser
shell material	304 stainless steel, anti-collision design
Waterproof rating	IP69K
Working voltage	DC12V(Battery pack power)
Working temperature	-20ºC to +60ºC
Storage temperature	-30ºC to +70ºC
Vibration resistance level	5G (conforms to GB-T2423056-2006 standard)

304 Stainless Steel Integrated Smart Battery
Large capacity lithium battery 5000maHBuilt-in overcharge, overdischarge, short circuit protection circuitBuilt-in power-saving mode design. Vehicle running battery-powered camera, no output when the battery sleeps in a stationary state304 stainless steel housing, waterproof grade IP66
Product Application
