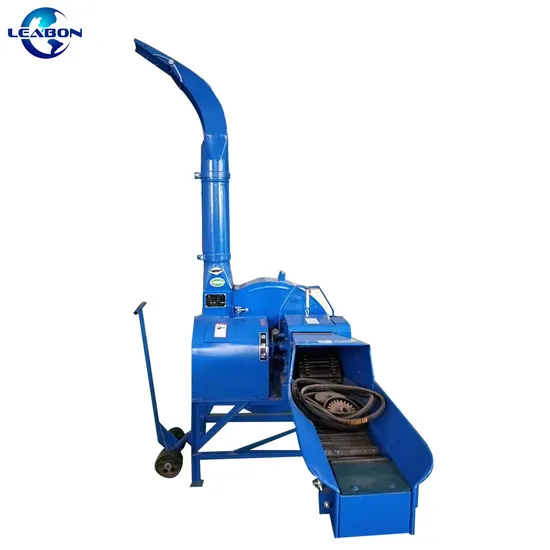

Integrated Crusher Chaff Cutter Chopper Electric Chaff Cutter Machine Chaff Cutter for Sale

Product Description

Integrated Crusher Chaff Cutter Chopper Electric Chaff Cutter Machine Chaff Cutter for Sale
Product Description
The grass cutter is an agricultural animal husbandry machinery grass cutter used to cut green (dry) corn stalks, straw and other crop stalks and forage grass. Working principle of grass cutter: The motor is used as a supporting power to transmit the power to the main shaft. The gear at the other end of the main shaft transmits the speed-regulated power to the grass pressing roller through the gear box, universal joint, etc. When the material to be processed enters between the upper and lower grass pressing rollers, it is clamped by the pressing roller and sent into the cutting mechanism at a certain speed. After being chopped by the high-speed rotating tool, it is thrown out of the machine through the grass outlet.
Product Parameters

Model	Power(KW)	Weight(kg)	Dimension(mm)	Capacity(T/H)
LB9Z-3.0	5.5	180	1250*1150*1670	2.5-3.5
LB9Z-5.0	5.5	350	2690*1210*2390	4.5-5.5
LB9Z-8.0	7.5	480	3110*1500*2860	6-8
LB9Z-10.0	15	1000	3510*1800*4210	8-10
LB9Z-12.0	18.5	1285	3810*1900*4230	12-18
LB9Z-15.0	22	1500	4100*1950*4350	15-20
LB9Z-20.0	30	2000	4350*2050*4550	20-30
LB9Z-30.0	45	3000	4850*2350*4550	25-38

More Pictures
Related products
Company Profile
Our Advantages
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can provide you the different mould to meet your different requirements.
5.We can also meet the special voltage demand. 6.The engineer is available to service machinery oversea.
