Competitive Price 20-1200mm Plastic HDPE PPR PP Irrigation Pipe Extrusion Machine Water Supply Pipe Extrusion Line Drainage Pipe Extruder Machine

Product Description

Product Description
Competitive Price 20-1200mm Plastic HDPE PPR PP Irrigation Pipe Extrusion Machine Water Supply Pipe Extrusion Line Drainage Pipe Extruder Machine HDPE PE PP PPR Fully Automatic Plastic Pipe Extrusion Production Making Machine Line Plastic PE PP PPR Extruder Machine, Single Screw Extruder Manufacturer. Qingdao Yiertai Machinery Technology Co.,Ltd is a proffesional manufacturer for plastic extruder machinery production. We could produce various pp pe pvc extruder machine, like plastic pipe extruder, wood plastic extruder,board machine etc. PPR PE pipe production/extrusion line / PPR PE pipe making machinery is used to produce PPR pipes for cold and hot water supply in house. It's composed of vacuum feeding machine, hopper dryer, single screw extruder, mould, make line co-extruder, vacuum calibration and cooling tank, extended spraying cooling tank, haul off machine, printer, cutter and stack bracket. By adding on machine components, this extrusion line can also produce wall spiral pipe, hollow pipe, PP-C/PE-X pipe, and other types of polyolefin pipe.
Main advantages:
1. Barrier type screw, by which the material can get good plasticizing at low temperature but high extrusion output.
2. Barrel with feeding groove, material is 38CrMoAl and nitrogen treated, surface hardness is HRC 65-68, which can has a long use life.
3. Millipore type mould with suitable inner compression ratio which can guarantee to produce high quality PPR PE pipes.
4. High automatic level. The production line is controlled by PLC(touch screen). All parts, like extruder, haul off unit, cutter etc can be controlled by touch screen synchronously.

Specification

Model	Pipe Diameter(mm)	Screw diameter(mm)	Max.output(kg/h)	Motor power(KW)	Total power(KW)
PE-63	16-63	SJ65/33 SJ25/25	120-180	45	110
PE-110	16-110	SJ65/33 SJ25/25	150-200	55	130
PE-160	50-160	SJ75/33 SJ25/25	150-220	75	150
PE-250	75-250	SJ75/33 SJ25/25	180-250	90	280
PE-315	110-315	SJ90/33 SJ25/25	250-350	132	350
PE-450	160-450	SJ90/33 SJ25/25	350-450	160	400
PE-630	315-630	SJ120/33 SJ25/25	550-850	200	500

Application
---------------------------------------------------WHAT CAN THE MACHINE PRODUCE----------------------------------------------
PE/PP/PPR pipe production line,can be used to produce PPR hot and cold water pipes,PE pipe,silicon core tube,the production line can be used to produce a single extruder monochrome tube,can also be used to produce multiple extruders through the co-extrusion head multi-layer color tube. 250mm HDPE water supply drain pipe extruder making machine A-B-A three layers HDPE pipe agricultural irrigation pipe tube production machine Buy HDPE irrigation pipe machine LDPE HDPE irrigation pipe extruder machine PE pipe making machinery.

Detailed Photos
Products process:PPR/PE pipe production line PPR pipe extrusion machine line Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → discharging rack
PE PPR Plastic Pipe Making Machine
Single Screw Extruder.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PE PPR Plastic Pipe Machine
Markline Extruder.
Always PPR pipe, HDPE water pipe needs the markline extruder to produce a blue or red markline on pipe surface.

PE PPR Plastic Pipe Machine
Extrusion Die Head.
The die head is made by 40Cr moulds materials.Using mica heating way.Can choose single layer die head or multi-layer die head to produce pipe with single layer or multi layer.Extrusion mould design and optimization of double-stent flow of the design to make pipes with strong shock resistance. Mould combined with concentric,cone distibuter, suitable for any cross section of single-or multi-extrusion.
PE PPR Plastic Pipe Making Machine
Vacuum Tank.
Which main used for shape and cool pipe, so as to reach standard pipe size. Used unique groove technology and water-loop cooling method, ensure the accurate shape and size of the pipes. It is adopted stainless steel materials, high quality vacuum and water pumb. There is flow stabilization system for better pipe surface.
PE PPR Plastic Pipe Making Machine

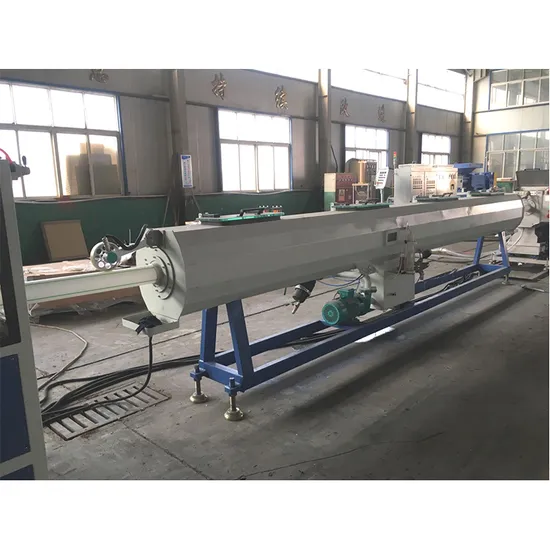

Cooling tank.
it is stainless steel materials. It could be water leaching cooling way or water spray cooling way according pipe diameters and extrusion speed.
PE Plastic Pipe Making Machine
Haul off unit.
Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed, also avoid deformation of pipe during traction.

PE Plastic Pipe Making Machine
Cutter. Cutter controlled by Siemens PLC, working together with haul off unit to have precise cutting. Customer can set the length of pipe they want to cut. Multi-feed-in actions for the accomplishment of one cutting process (protect blades and saws, prevent from blade and saws stuck for thick pipe and cut face of pipe is smooth).

PE Plastic Pipe Making Machine
Stacker.
Pipe surface protection Central Height Adjustment
To support and unload pipes. Length of stacker can be customized.

PE Plastic Pipe Making Machine
Coiler.
To coil pipe into roller, easy for storage and transportation. Usually used for pipe below size 110mm. Have single station and double station for choice.
Company Profile
Our company is professional plastic products extrusion line manufacturer. We already have 20 years experiences in this industry. We mainly produce PP/PE/PC hollow sheet machines, pipe extrusion line,board extrusion line ,profiles extrusion line, sheet extrusion line, and auxiliary machines. Our company could supply turn-key project as feasibility report, workshop planning,technical support , testing, installation, training and after-sale service. We would like to supply high-class products and satisfy every customer's needs. The products sell well all over the country and exported to more than 50 countries like Southeast Asia, Australia, Russia, Middle East, African and South American. Our equipment to create the greatest value for customers is our constant pursuit. Customer Photos
Our Advantages
1.We are China Leading Plastic Machine Manufacturer.
2.Inspected by the Inspection Institution of SGS Certification.
3.100% QC inspection Before Shipmeng.
4.Best Quality & Best Service with Competitive price.
FAQ
Q: Your company is an industrial manufacture factory or a transactional company ?A: Yiertai Company is an industry manufacture of Extrusion Machines.Q:All of your products are made by your self or compacted via purchasing the others?A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products aremade by our technical team.Q:Annual Production Capacity( Previous Year)A: About 80 lines and total revenue is about USD 2500000Q: Is there quality control on all production lines?A: Yes, all production lines have adequate quality control Q:Do the QA/QC inspectors work independently from the production line?A: YesQ:How many QA/QC inspectors in total?A: 4Execellent Service-Turnkey Project (Pre-Sale and After-Sale Service)
