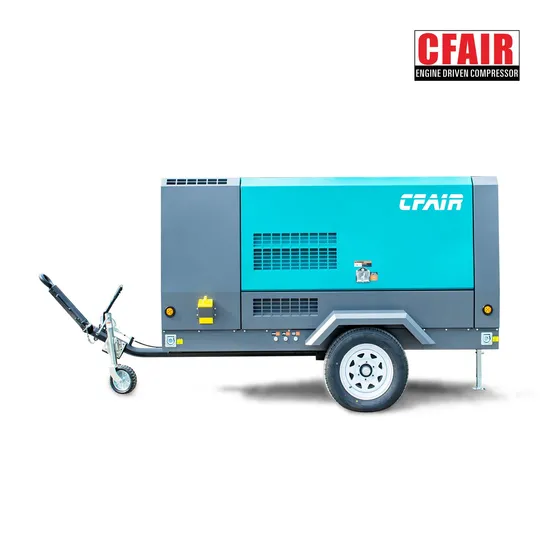

430cfm -12 High Pressure Portable Diesel Air Compressor
| US$18,229.00-21,874.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CF430M-12
Power Source
Diesel Engine
Cylinder Position
Horizontal
Structure Type
Closed Type
Installation Type
Movable Type
Type
Twin-Screw Compressor
Free Air Delivery
430 Cfm / 12.1 M3/Min
Working Pressure
12 Bar / 174 Psi
Air End Brand
Germany Brand
Air Outlets
1 X 3/4′′ + 1 X 2′′
Dimensions
4567*2027*2000 mm
Trailer
Suspension Axle with 4 Wheels
Weight
2070 Kg
Tyre
Tubeless Type
OEM
Available
Color
Green/Blue/Yellow/Red
Delivery Time
30 Days
Transport Package
International Export Standard
Specification
430CFM @12bar
Trademark
CFAIR
Origin
China
HS Code
8414804100
Production Capacity
1000
Packaging & Delivery
Package Size
456.00cm * 202.00cm * 200.00cm
Package Gross Weight
207.000kg
Product Description
| MODEL | CF140M-15 | CF460M-12 | CF750M-21 | CF850M-22 | CF1150M-25 | CF1600M-17 |
| Air End Type | Rotary Twin Screw, Single stage | Rotary Twin Screw, Single stage | Rotary Twin Screw, Single stage | Rotary Twin Screw, Single stage | Rotary Twin Screw, Single stage | Rotary Twin Screw, Single stage |
| Air Outlets | 3/4'' x 2 | 3/4'' x 2 + 1-1/4'' x 1 | 3/4'' x 2 + 1-1/4'' x 1 | 3/4'' x 1 + 2' x 1 | 3/4'' x 1 + 2' x 1 | 3/4'' x 1 + 2' x 1 |
| Free Air Delivery | 140 CFM / 3.9 m3/min | 460 CFM / 13 m3/min | 750 CFM / 21.1 m3/min | 850 CFM / 24 m3/min | 1150 CFM / 32.3 m3/min | 1600 CFM / 45 m3/min |
| Working Pressure | 15 bar / 217.5 psi | 12 bar / 174 psi | 21 bar / 304.5 psi | 22 bar / 309 psi | 25 bar / 362.5 psi | 17 bar / 246.5 psi |
| Fuel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel |
| Emission | China Stage II | China Stage II | China Stage II | China Stage II | China Stage II | China Stage II |
| Engine Type | 4 cylinder, Direct-injection | 4 cylinder, Direct-injection | 4 cylinder, Direct-injection | 4 cylinder, Direct-injection | 4 cylinder, Direct-injection | 4 cylinder, Direct-injection |
| Displacement | 2.771 L | 5.9 L | 8.9 L | 11 L | 12 L | 13 L |
| L X W X H | 3530*1760*1850 mm | 4567*2027*2000 mm | 4370*1950*2355 mm | 4688*1900*2340 mm | 4683*2200*2535 mm | 4683*2200*2535 mm |
| Weight | 1380 kg | 2070 kg | 4400 kg | 4400 kg | 6850 kg | 7355 kg |
| Note: Please feel free to contact us if any more customized requirements ! | ||||||
Hangzhou Caifull Precision Machinery Co.,ltd. (CFAIR COMPRESSOR), headquartered in Hangzhou, is a professional engine driven air compressor manufacturer dedicated to offering the world-leading diesel compressors in the world. Since 45 years of industry accumulation, we serve customers world wide. We maintain the close relationship with customers and market. With your valuable suggestions, we keep on growing and innovation for making diesel air compressor on top.
Developers travel around the world to investigate the market and develop machines that reflect the needs of the global market according to the research results. In recent years, compliance with new emission standards and regulations, taking into account environmental impacts has become the basis for this research and ensuring that all compressors meet the re-established standards for each standard.
In addition, we develop environmentally friendly and user-friendly, safe and durable machines that are easy to maintain at the front line of design.
