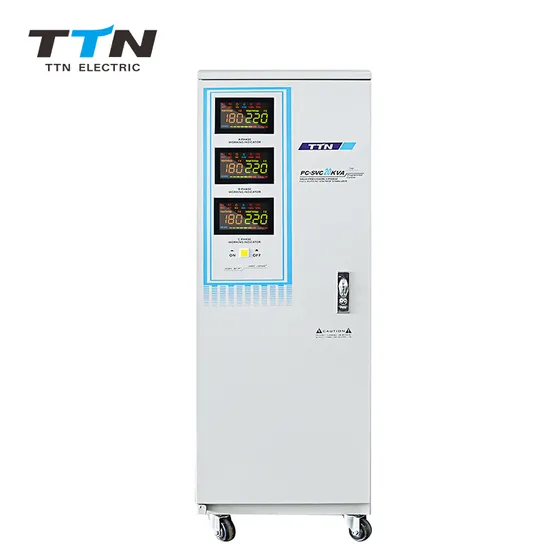

Ttn Voltage Regulator/Stabilizers Pcsvc10000va Automatic Voltage Servo Motor
| US$230.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
PCSVC-10000VA
Frequency Characteristics
Intermediate Frequency
Usage
Triac
Frequency
Intermediate Frequency
Size
Medium
Iron Core Shape
U
Power Source
Switching Regulated Power Supply
Application Range
Electricity Unstable Area
Brand
Ttn
Input Voltage
AC270-430V
Weight
65kgs
Info
Input Voltage/Output Voltage/Load Usage/Time Delay
Technology
Servo Control+Micro Computer Ptogramed Control
Output Voltage
380V+/-3% Adjustable
Transport Package
Stardard Exporting Carton
Specification
CE, ISO: 9001
Trademark
TTN
Origin
Wenzhou, Zhejiang, China
Production Capacity
50000units/Month
Product Description
Advantages:1.AC Automatic Voltage Stabilizer
2.LED Display:Display various protection data
3.Protection Function:Over Voltage Protect;Low Voltage Protect;Over Loading Protect;Over Temperture;Short Circuit Protect
4.Wide input voltage range
5.Efficiency more than 90%
6.No additional waveform distortion
Specifications:
1.Model:PCSVC-10000VA
2.Input Voltage:AC270-430V
3.Output Voltage:380v±3% adjustable
4.Frequency:50HZ/60HZ
5.Phase: Single Phase
6.Packing Size:45.0*45.0*90.0cm
7.G.W.:65kgs
Application:
1.Computer
2.Test equipment
3.Lighting equipment
4.Alarm and security system
5.X-ray equipment
6.Medical equipment
7.Duplicator
8.Boadcasting equipment
9.Numeric control machine tool
10.Industrial robot
11.Hi-Fi equipment
| Model | PCSVC-6000VA | PCSVC-10000VA | PCSVC-15000VA |
| PCSVC-20000VA | PCSVC-30000VA | PCSVC-45000VA |
| TECHNOLOGY | Servo Motor Control System+Micro computer ptogramed control | |||||||
LED DISPLAY | Info | Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection | ||||||
Protection | Over voltage | Output Voltage≥243±4V | ||||||
| Low Voltage | Output Voltage≤188±4v | |||||||
| Over Loading | More than 120% | |||||||
| Over Temperture | 120ºC±10ºC | |||||||
| Delay Time | Long time(255 seconds)/Short time(5 seconds) | |||||||
| Circuit Breaker | Regulator/Bypass | |||||||
| Language | English/Russian/Chinese | |||||||
| INPUT VOLTAGE | AC270V-430V | |||||||
| OUTPUT VOLTAGE | 380V±3% adjustable | |||||||
| FREQUENCY | 50HZ/60HZ | |||||||
| PHASE | Single Phase | |||||||
| EFFICIENCY | ≥90% | |||||||
| AMBIENT TEMPERATURE | -15ºC-45ºC | |||||||
| RELATIVE HUMIDITY | <95% | |||||||
| WAVEFORM DISTORTION | No additional wave from distortion | |||||||
| INSULATING RESISTANCE | Normally more than 2MΩ | |||||||
| SPECIFICATIONS | ||||||||
| POWER | 6000VA | 10000VA | 15000VA | 20000VA | 30000VA | 45000VA | ||
| PACKING SIZE(CM) | 45.0*45.0*90.0 | 45.0*45.0*90.0 | 50.5*50.0*106.0 | 50.5*50.5*106.5 | 59.0*60.5*115.0 | 75.0*65.5*132.0 | ||
| PACKING(pcs) | 1 | 1 | 1 | 1 | 1 | 1 | ||
| G.M(kgs) | 55.00 | 65.00 | 80.00 | 90.00 | 115.00 | 185.00 | ||
