CE Approved Desktop Sumore China Cheap Turret Bench Drilling Fresadora Milling Machine New
| US$550.00-980.00 | 5 set (MOQ) |
Basic Info.
Model NO.
SP2217-IV
Object
Gear
Structure
Desktop
Milling Cutter Type
End Mill
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Drilling Capacity
25mm
End Milling Capacity
20mm
Face Milling Capacity
63mm
Z-Axis Travel(Headstock)
380mm
X-Axis Travel(Cross)
280/480mm
Y-Axis Travel(Longitudinal)
175mm
Spindle Taper
Mt2
Weight(Net/Gross)
113/138kg 125/150kg
Packing Size
670/870X550X860mm
Processing Material
Copper,Aluminium,Metal,Glass
Key Word
Universal Vertical Drilling and Milling Machine
Transport Package
Wooden Box
Trademark
SUMORE
Origin
Shanghai
HS Code
8459619000
Production Capacity
1000set
Packaging & Delivery
Package Size
67.00cm * 55.00cm * 86.00cm
Package Gross Weight
150.000kg
Product Description

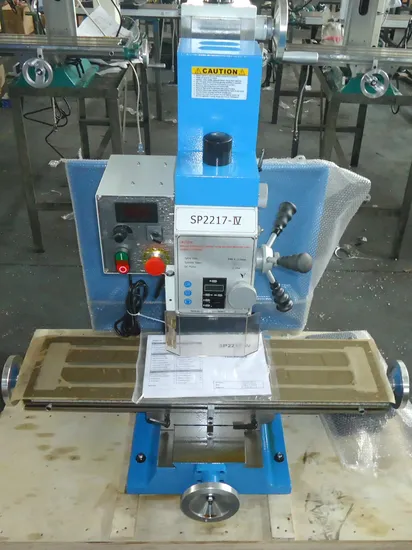

Product DescriptionVertical small manual Milling drilling Machine power 750W SP2217
Quick detais
1.Drilling capacity:25mm
2.End mill capacity:20mm
3.Face milling capacity:63mm
4.Head tilt left & right:+90°
4.Spindle taper:MT3 or R8
5.Spindle speed: 50-2250rpm
7.Working tabel:500*180/700*180mm
7.Power:750W
Features/Advantages
Tapping Function
Brushless Motor & Variable Spindle Speed
Fine & Smooth Feeding Movement on Every Directions
High Precision for Model Engineering
Changable Table Length for Different Workpieces
Optional Table Auto Feed
Rigid cast iron construction with dovetailed slideways
Easy function change makes a versatile machine
Perfect for slotting, grooving, splines and gear cutting
Product Parameters
| Model | SP2217-IV |
| max drilling capacity | 32mm |
| Max tapping capacity | 12mm |
| max end milling capacity | 20mm |
| max face milliing capacity | 76mm |
| table size | 840 x 210mm |
| number of spindle speed | variable |
| range of spindle speed | 50 - 3000 rpm |
| spindle taper | MT3 |
| Y travel | 220mm |
| X travel | 625mm |
| Z travel | 370mm |
| spindle travel | 70mm |
| T slot size | 12mm |
| Slot number | 3 piece |
| headstock tilt left and right | -+90o |
| Machine size | 850x890x1120mm |
| Motor | 1.5KW/220V Brushless Motor |
| NW/GW | 220/260KG |
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
