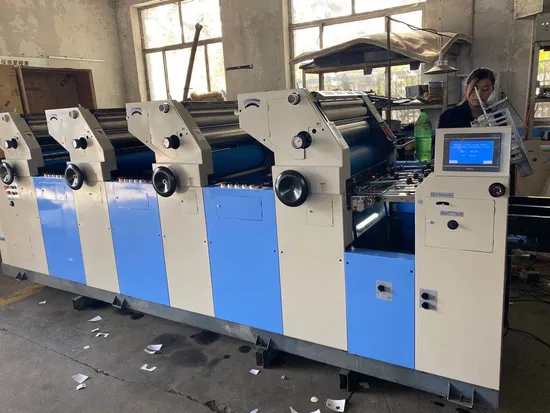

Four Colors Offset Press Printing Machine Vkd462

Product Description

four colors offset press printing machine VKD462
Capability: Inking device of each unite has 14 ink rollers including 3 ink form rollers, guarantee the high precise printing quality, and can print double color, which can improve the efficiency and reduce the cost.
Advanced ink feeding system, consisting of 14 ink form rollers including 3 ink rollers, ensure top quality prints
Easily operate: Water supplying, ink supplying and platform pressing each unites can be finished at different lever with the same handle. Joint pressure of printing rollers is controlled with an electric eye, which is more reliable and easy to be regulated.
Accurate orientation: Adopt front lay and double side pull guide for orientations, also install with tune-up devices for feed table, its side lay, plate cylinder, and No. 2 unit.
Adopt independent ink system and damping system, can freely adjust feeding, best meeting various demands of different printing matters, more suitable for color printings.
Presetting counter: Automatically stop feeding paper once preset quantity task are completed.
Double detect device: Detect double sheets and multiple sheets, and automatically eliminate double and multiple sheets.
Double turn-around function: Ensure the sufficient dryness of ink demanding of special printing matter.
Sprayer device: Make spraying and printing run in synchronization, prevent printing matter from dirty
Centralized oil feed system: More convenient for maintenance
Touch device: Realize rapid loading and unloading plate, easier operation and better safety

	four colors offset press printing machine VKD462
	Model	VKD462
	Max. sheet size	620 × 450mm
	Min. sheet size	260 x 180mm
	Max. print format	605 × 440mm
	Plate size	620 × 485 × 0.15mm
	Blanket size	616 × 505 × 1.95mm
	Paper size	45-250gsm
	Max. speed	7000 sheets/hour
	Speed adjustment	Frequency converter
	Gripper margin	8-10mm
	Inking rollers	14pcs per unit(3 forme)
	Dampening rollers	4pcs per unit(1 forme)
	Power supply	380v/50Hz
	Main motor	4kw
	Air pump motor	1.5kw
	Machine dimension	4350(L) × 1040(W) × 1460(H)mm
	Net weight	3200kg
	Package dimension	4650(L) × 1150(W) × 1720(H)mm
	Gross weight	3540kg
