Hospital Surgical Autoclave Vertical Pressure Steam Sterilizer

Product Description

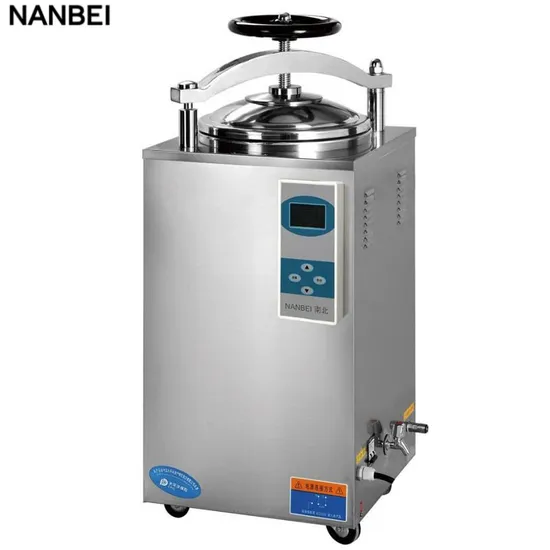

Digital display steam sterilizer autoclave
Product Description The vertical steam sterilizer is a safe, reliable, and automatic controlling sterilizing equipment, which is equipped with heater, disinfection tube, container tube, safety valve, releasing steam valve, pressure temperature indicator, and sterilization end alarm, and the device of automatically cutting off the power ect. The container has the advantages of reliable disinfection and sterilization, easy operation, safe use, energy saving and excellent price. It is the ideal equipment for disinfection and sterilization of surgical instruments, dressings, utensils and medium for medical and health research.
Characteristics:
1.Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Pressure safety lock
4.Indicator light indicates working state
5.Over temperature & over pressure auto-protection
6.Double scale indication pressure gauge
7.Self inflating type seal
8.Safe protection of water lacking
9.Automatically shut off with beep reminding after sterilization
10.Easy to operate,safe and reliable
11.With two stainless steel sterilizing baskets
Detailed Photos
Product Parameters

Model technical data	NB-35HD	NB-50HD	NB-75HD	NB-100HD
Chamber volume	35L(φ318×450)mm	50L(φ340×550)mm	75L(φ400×600)mm	100L(φ440×650)mm
Working pressure	0.22MPa			0.14MPa
Working temperature	134ºC			126ºC
Max working pressure	0.23 Mpa			0.165MPa
Heat average	≤±1ºC
Timer	0~60min
Adjustment temperature	105~134ºC			105~126ºC
Power	2.5Kw/AC220V.50Hz	3Kw /AC220V.50Hz	4.5KW /AC220V.50Hz
Overall dimension	450×450×1010(mm)	510×470×1130(mm)	560×560×1120(mm)	540×560×1250(mm)
Transport dimension	570×550×1150(mm)	590×590×1280(mm)	650×630×1280(mm)	680×630×1370(mm)
G.W/N.W	72Kg/56Kg	88Kg/68Kg	100Kg/80Kg	110Kg/85Kg

Related Product
Packaging & Shipping
Company Profile
Certifications
FAQ 1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
