Mini 13.5ton Crawler Excavator for Sale

Product Description

Product Description

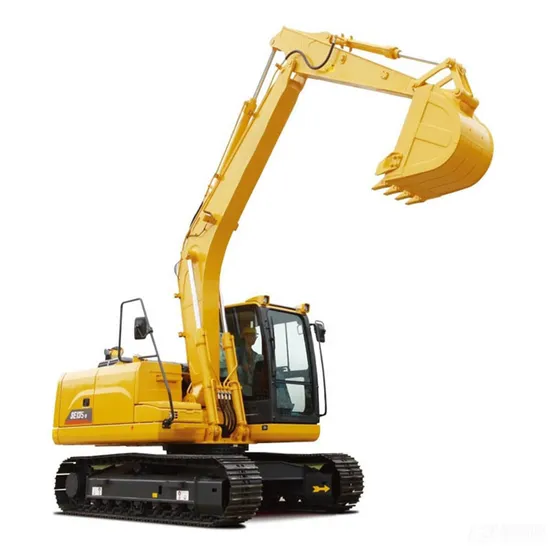

Mini 13.5Ton Crawler Excavator for Sale
High performance
A top engine and powerful hydraulics give you the power to move your material with speed and precision. A brand-new design cab equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.
Operator comfort and convenient control
Work comfortably and safely in a spacious and quiet cab which provides superb visibility from the operator seat to keep you aware of surroundings. An adjustable suspension seat can increase comfort and reduces operator fatigue.
Reliable and durable design
Using advanced engineering and software, we carefully analyze each structure to create durable, reliable machines for tough applications.
Built-in safety features
ROPS and FOPS certified cab provides a safe work environment. The hydraulic activation level locks out all the hydraulic functions. Enter and exit the cab and walk on the upper structure safely with handrails, anti-skid plating and countersunk bolts which are meant to reduce slipping and tripping. Rear-view camera is also optional to protect working from all around.
Less maintenance costs
Less time for greasing and more time for working. 3 levels of fuel filtration protect the engine from dirty diesel fuel. Check and service your machine faster with many ground level routine service and maintenance points
Versatile attachments
Fast and easily change attachments with optional auxiliary hydraulics. Enhance your work capabilities with a variety of attachments including buckets, hammers, grapples and couplers dealer can install hydraulic kits to properly operate attachments, maximizing machine uptime and profits.
Product Parameters

SE135
Engine
Engine model	QSF 3.8T
Rated power	86kw/2200rpm
Max.torque	470N·M/1100~1700rpm
Displacement	3.76 L
Emission standard	Tier 3
Operation Range
Operating weight	13500 kg
Max. digging height	8495 mm
Max. dumping height	6060 mm
Max. digging depth	5490 mm
Max. vertical digging depth	4625 mm
Max. digging reach	8300 mm
Min. swing radius	2445 mm
Dimensions
Overall length	7860 mm
Overall width	2500 mm
Overall height	2855 mm
Tail swing radius	2380 mm
Min. ground clearance	425 mm
Counterweight ground clearance	915 mm
Undercarriage/Working Device
Std. track shoe width	500 mm
Bucket capacity	0.55 m³
Carrier roller(per side)	1
Track roller(per side)	7
Track gauge	2000 mm
Boom length	4600 mm
Arm length	2500 mm
Performance
Travel speed	3.25/5.2 km/h
Gradeability	35°
Ground pressure	41.5 kPa
Tractive force	118 kN
Bucket digging force	97 kN
Arm digging force	70 kN
Service Refill Capacities
Fuel tank	220 L
Engine coolant	20 L
Engine oil	12 L
Hydraulic tank	177/205 L
Hydraulic System
