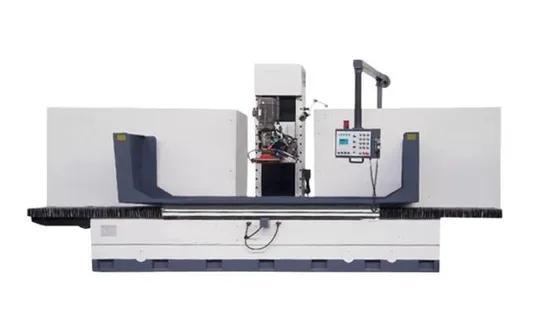

Gt Series Column Moving Surface Grinder Sgt60160SD/Sgt60220SD

Product Description

Model No.		SGT60160SD	SGT60220SD
Item No.
General capacity
Table size (WxL)		610X1600 mm	610X2200 mm
Maximum Grinding size (transverse xlongitudinal)		610X1600 mm	610X2200 mm
Maximum grinding height		600 mm	600 mm
Speed of table longitudinal movement	Speed	5~25 mm/min	5~25 mm/min
	Rapid speed	0.05~2 mm/min	0.05~2 mm/min
	Electronic handwheel feed	0.005 mm/gra	0.005 mm/gra
Wheelhead vertical movement	Rapid speed	0.05~2 mm/min	0.05~2 mm/min
	Electronic handwheel feed	0.005 mm/gra	0.005 mm/gra
	Vertical wheel head	±30°,±5°	±30°,±5°
Grinding wheel	rotation Speed	1450 rpm	1450 rpm
	Size(ODxWxID)	According to technique request	According to technique request
Spindle motor		5.5 kw	5.5 kw
Max loading capacity of table(include magnetic chuck)		1230 kg	1690 kg
Total rated power		17 KW	17 KW
Height of machine		2720 mm	2720 mm
Floor space( LxW)		4700x3000 mm	6000x3000 mm
Weight		8500 kg	9500 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
