Fully Automatic Travelling Rotary Head Cutting Machine

Product Description

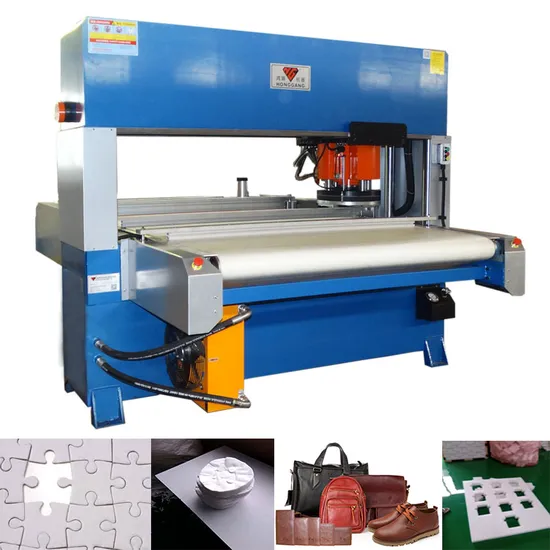

Fully Automatic Travelling Rotary Head Cutting Machine
The computer-controlled cutting machine can rotate and cut at any angle during cutting, and it is suitable for shoes, masks, and other materials cut with a small knife die. Because of the flexibility of cutting, it is more suitable for mass production in factories, and the work efficiency is doubled compared with the original machine.
1.Parameter:

Model	HG-CA30T
Cutting Force	30 tons
Dimension D*W*H(mm)	3000*2200*1900mm
Cutting area	2000*610mm
Cutting belt width	1600mm
Moving Cutting Plate W*D(mm)	300*300mm
Motor (Kw)	4
Stroke (mm)	40-160mm
Net Weight	3500kg

2.advantage:
1. Computer control one button start, computer typesetting
2. The cutting speed is fast, and can be cut 60-80 times per minute. And the machine is equipped with a cooling system
3. The moving head can rotate continuously at any angle, which saves material.
4. One machine with multiple machines, saving labor, saving electricity and worrying
5. The machine's unique limit switch prevents machine failure and damages the machine.
3.Detail of rotary head cutting machine:
4.Scope of application:
a range of coils such as masks, non-woven fabrics, shoes, pearl cotton, and automotive interiors.
5.Production process
6.FAQ:
1)What's your after-sales service?
->Engineer available to serve machines over seas; Email and calling service in working hour; 24 hours door to door in domestic.

2)Can we test the our material by your machine free?
->Yes, please contact us to send your matrial.

3)Are you a factory or trading company?
->We are a factory and manufacturer

4).What is the guarantee of product quality?
->We offer our customers a one-year free maintenance service. In general, our technical staff will identify the cause of the problem based on customer feedback.

Don't know how many ton you need?
Please contact us!
If you are not sure if your material can be cut by this cutting machine,we want to know the product information:

Material:
Max. material width:
Max. material thickness:
Max.cutting length:

Send your Inquiry Details in the Below,Click "Send"!
we will reply within 24h!
