Extrusion High Speed 20 L Jerry Can Blow Molding Making Machine
| US$37,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ABLD90
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Screw Diameter
75mm
Screw Drive Power
7.5kw
Screw Heating Capacity
7-8kw
Oil Pump Drive Power
7.5kw
Clamping Force
80kn
Max.Size of Mold
400*430mm
Template Size
380*420mm
Mold Stroke
170-520mm
Max.Die Diameter
170mm
Weight of Machine
7.5 Ton
Transport Package
Film Packing
Specification
ISO9001
Trademark
APOLLO
Origin
Zhangjiagang City, Jiangsu Province, China
HS Code
847730100
Production Capacity
55-60 PCS/H
Product Description
Company ProfileProduct Description

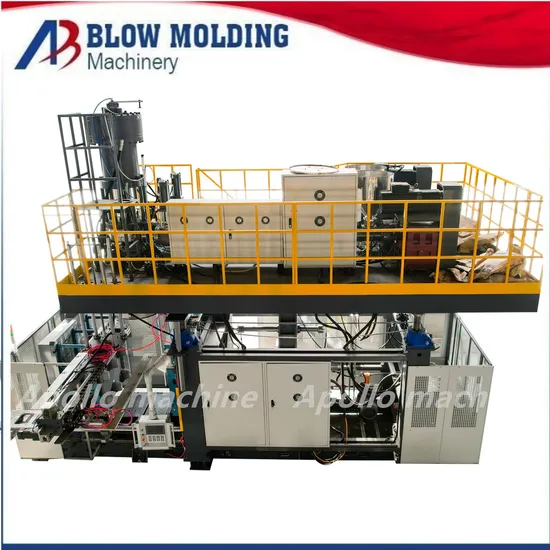

60 Liter HDPE Oil Barrel/ Drum blow molding Making Machinery
ABLD75 extrusion blow moulding machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 25L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 60L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC. Product Parameters
Max. Product volume | 60 liters |
Dry cycle | 450pc/h |
Screw diameter | 90mm |
Screw L/D ratio | 25 L/D |
Screw drive power | 37 KW |
Screw heating capacity | 18 KW |
No.of heating zone | 4 zones |
Output of HDPE | 130 KG/H |
Oil pump drive power | 30 KW |
Clamping force | 260 KN |
Max.size of mold | 450-1000mm |
Mold stroke | 700X950mm |
Max.die diameter | 340mm |
Die heating power | 7.6 KW |
Die heating segments | 4 zones |
Blowing pressure | 0.8mpa |
Air volume | 1.0 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 90 L/MIN |
Certifications
Our Advantages
After Sales Service
