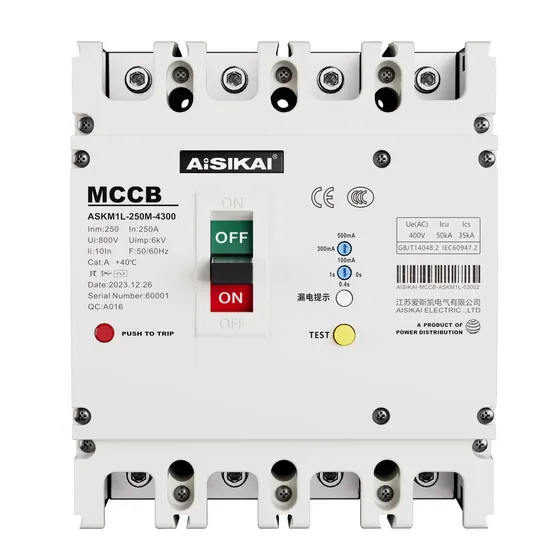

250A Residual Current Circuit Breaker RCCB CE/CCC MCCB

Product Description

AISIKAI MCCB Normal working conditions and installation methods
Category	Requirements
Elevation	Installation site not exceeding 2000 meters above sea level
Ambient air temperature	The upper limit does not exceed+ 40 ºC; the lower limit does not exceed - 5 ºC; the average value of 24 hours does not exceed + 35 ºC
Pollution Level	Level 3
Installation Category	Installation Category Ill, Circuit Breaker 1600A IV
Atmospheric conditions	Atmospheric relative humidity does not exceed 50% when the ambient air temperature is + 40 C. It can have a higher relative humidity at a lower temperature. The average maximum relative humidity of the wettest month is 90%, and the average minimum temperature of the month is + 25 C. Considering the condensation occurring on the surface of the product due to temperature changes.
Installation Conditions	Installed in places without significant shaking and shock vibration, the magnetic field near the installation site should not exceed 5 limes of the magnetic field in any direction, and leakage circuit breakers should generally be installed vertically.
Installation	Circuit breaker can be installed vertically (i.e. vertically) or horizontally (i.e. horizontally).
Input mode	Circuit breaker can't go down, that is, only 1,3,5 power lines, 2,4,6 load lines

AISIKAI MCCB molded case circuit breaker is a new type of the circuit breaker that the company has designed and developed through adoption of a combination of international advanced technologies.
Circuit breaker with overload, short circuit and under voltage protection device to protect the power lines and equipment from damage.
The circuit breaker can be installed vertically (ie, vertical loading), or horizontally (ie, cross-loaded). According to the level of its rated ultimate short circuit breaking capacity, it is divided into three categories, namely L type(standard type), M type(comparatively high breaking type),H type(high breaking type),the product is small volume, high breaking capacity, short arcing and anti-vibration characteristics,it is ideal for land and marine use.
Rated insulation voltage 800V,suitable for AC 50HZ, rated working voltage 690V and below the circuit for infrequent start with.

Model		ASKM1-63			ASKM1-125			ASKM1-250			ASKM1-400			ASKM1-630			ASKM1-800		ASKM1-1600
Frame rating current Inm(A)		63			125			250			400			630			800		1600
No. of poles		3P/4P			3P/4P			3P/4P			3P/4P			3P/4P			3P/4P		3P/4P
Rated current In(A)		10 16 20 25 32 40 50 63			16 20 25 32 40 50 63 80 100 125			100 125 140 160 180 200 225 250			225 250 315 350 400			400 500 630			630 700 800		800 1000 1250 1600
Rated insulation voltage Ui(V)		1000V
Rated impulse withstand voltage Uimp(V)		12000V
Rated operational voltage Ue(V)		AC400V/415V AC660V/690V
Arc distance (mm)		50(0)**			50(0)**			50(0)**			100(0)**			100(0)**			100(0)**		100(0)**
Breaking capacity level		L	M	H	L	M	H	L	M	H	L	M	H	L	M	H	M	H	M
Ultimate short-circuit breaking capacity Icu(kA)	AC400V/415V	25	35	50	35	50	65	35	50	65	50	65	100	50	75	100	85	100	85
	AC660V/690V	10	12	12	12	20	20	12	20	20	15	20	20	20	30	30	20	30	20
Service short-circuit breaking capacity Ics(kA)	AC400V/415V	18	22	35	22	35	50	25	35	50	35	50	65	35	65	75	75	85	65
	AC660V/690V	10	12	12	12	20	20	12	20	20	15	20	20	20	30	30	20	30	20
Use category		A			A			A			A			A			A		A
1) Electrical service life(times of operation)	AC400V/415V	8000			8000			8000			7500			7500			7500		5000
	AC660V/690V	1500			1500			1000			1000			1000			500		500
1) Mechanical service life(times of operation)	without maintenance	20000			20000			20000			10000			10000			10000		8000
	with maintainable	40000			40000			40000			20000			20000			20000		16000
Outline dimensions (mm)	W(3P/4P)	78/101			92/122			107/142			150/198			182/240			210/280		210/330
	L	130			150			165			257			270			280		280
	H(including handle)	90			88			112			155			160			160		197.5

AISIKAI MCCB DIMENSION SHEET
Dimension	M1-63L	M1-63M	M1-125L/M	M1-125H	M1-250L/M	M1-250H	M1-250L/M
Overall Dimensions	C	85	85	87.5	87	102	102
	E	51	51	55	55	55	55
	F	22	22	22	22	22	22
	G	14	14	17.5	17.5	23	23
	G1	6.5	6.5	7.5	7.5	11.5	11.5
	H	76	76	73	90	89	106
	H1	90	100	87	105	112	127
	H2	18.5	18.5	24	24	23	23
	H3	8	8	8.5	9	7	7
	L	136	136	150	150	166	166
	L1	170	170	255	255	292	292
	L2	118	118	131	131	144	144
	W	78	78	92	92	106	106
	W1	25	25	30	30	35	35
Mouting Dimensions	A	25	25	30	30	35	35
	B	117	117	129	129	129	126
	Φd	4.5	4.5	4.5*6	4.5*6	4.5*6	5.5
