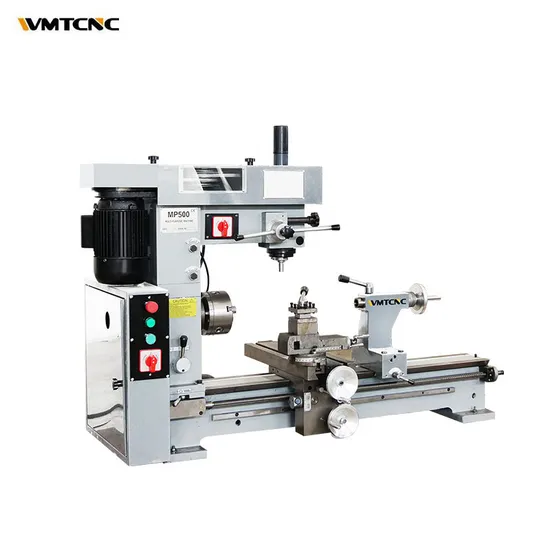

Lathe machine mini combo MP500 multi purpose lathe machine

Product Description

Product Description
Main features of lathe mill combo MP500:
1. Turning, milling, drilling and threading.
2. Metric or imperial thread cutting.
3. Suitable for processing metal, wood and other materials.
4. Excellent advantage of various functions, small occupation and economic.

Specification	MP500/800
Max. swing over bed	420mm
Max. distance between centers	500/800mm
Max. longitudinal travel	400mm/740mm
Max. cross travel	200mm
Spindle taper	MT4
Spindle bore	28mm
Step of spindle speed	7 steps
Range of spindle speed	160-1360rpm
Barrel travel	70mm
Barrel taper	MT3
Metric thread range	0.2-6mm
Inch thread range	4-120T.P.I
Longitudinal range of automatic feeding	0.05-0.35mm/0.002-0.014''
Cross range of automatic feeding	0.05-0.35mm/0.002-0.014''
Max. drilling capacity	22mm
Worktable size(L×W)	475×160mm
Max. end mill	28mm
Max. face mill	80mm
Distance between spindle center and column	285mm
Distance between spindle and worktable	306mm
Headstock travel of up and down	110mm
Spindle taper	MT3
Step of spindle speed	16 steps
Range of spindle speed	120-3000rpm
Swivel degree of headstock	±360°
Motor power	0.75kw
Packing size	1130/1430×580×1100mm
N.w/G.w	245/280kg 275/325kg

Machine Show
Machine Details
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
