Factory supply 1 gallon automatic water filling bottling machine for low price

Product Description

Product Description

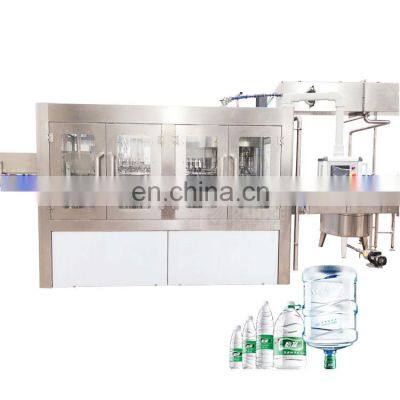

Factory supply 1 gallon automatic water filling / bottling machine for low priceProduct DescriptionMachine description:This machine is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines. It is applicable for mineral water and pure water filled in plastic bottles and capped with plastic caps, with optional capacity from 3000BPH to 20000BPH. It uses frequency changer to control the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output. Features1.Bottle travels on neck to neck from in-feed till out-feed resulting scratch free movement of bottle.2.Pressure filling nozzles deliver fast, efficient, and accurate dispensing with minimal dripping and leakage.3.No Bottle No Filling, no caps no capping, no caps auto stops4.When bottle jam auto stop, machine accident auto stop5.Open the window when machine running, machine auto paused6.Heavy duty stainless steel filling pump & rinsing pump7.Food grade 316L or 304stainless steel contact parts, smooth & fine polish,no dead angles8.Adopted first class component from Mitsubishi, OMRON, SIEMEN, With PLC, invertors control, touch screen, sensor, switch and other electric parts.9.Machine and cable arrangement designed according to CE standard and all safety standard Machine show:DetailsWashing Part:The bottle enters into the rinsing part of three-in-one machine through air conveyor. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position againFilling part:Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder. High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. Capping Part: Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.Air conveyor: Air conveyor is fixed on the floor, with fan installed on the top. Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are held on the neck in the conveyor and transported into filling machine by blowing power. All are made of stainless steel SUS304/316 Rack made by high quality carbon steel welded. Conveyor system Energy saving. High efficient. Adapt to customer factory layout Special lubrication system, keep products clean, health, safety Electric eyes design keep whole line running safety and quickly Main technical parameter:Product output500-600BPH for 5L bottleWashing heads9pcsFilling heads9pcsCapping heads4pcsSuitable for PET bottle sizeDiameter Φ140~Φ180mm Highness:300~410mmSuitable for cap48mm plastic screw caps or other diameterWashing water required1000liter per hourWashing pressure required0.25MPaCompressed air pressure (for caps arranger)0.7MPaCompressed air consumption (for caps arranger)0.7m3/minFilling pressureNormal pressure (gravity)Total weight4500kgsMachine dimension3100*2100*2400mmTotal power5.5kwRelated productRO System This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank.This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised. Semi Automatic Blowing Machine 1. Semiautomatic Blowing Machine for 300BPH-650BPH from 3-10L bottle with 1 or 2 cavities. Automatic PVC sleeve labeling machine Capacity: 100-350bottles/min can be chosenLabel material: PVC PET OPS, etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max) Automatic PE film shrink packing machine Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ coolingSpeed: 8-12packages/minPower (rated/real): 26kw / 16kwMax. packing size: 420*300*350mm(LxWxH)Max. sealing size: 650mm Company InformationFAQQ1: How to find suitable water filling machine or complete water production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cnQ2: How to start a water factory business? What's my budget?A2: First confirm the source water, send the water samples to your local department and get an water analysis report, then tell us how many tons or liters per your you want to make, like 2000liters/hr, 4000liters/hr, 10000liters/hr, etc.Q3: How to confirm the bottle shapes that is very attractive for your customer?A3: Confirm the plastic bottle size is 355ml, 500ml, 1000ml, 1500ml or 2000ml, then our engineer can design the bottle shapes for you.Q4: Which kinds of machines included in one complete water production line?A4: PE Resin, injection molding machine, automatic or semi auto plastic blowing molding machine, water filling machine, sleeve shrink labeling machine or self adhesive labeling machine or OPP labeling machine or rotary labeling machine, semiautomatic or full automatic L type shrink packing machine, high speed shrink packing machine, laser or ink printer, palletizer, pallet wrapping machine.Q5: Are you a trading company or a manufacturer?A5: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .Q6: Do you have technical support after we purchased your machines?A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.Q7: If you buy our machines, can you offer us wear-out spare parts?A7: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing. Why choose Grandee machinery
