High Quality Fully Automatic Steel Roof Color Steel Glazed Tile Pressing Machine

Product Description

Product Description

Model NO	1100
Condition	New
Usage	Roof
Feeding Width	Feeding Width
machine frame	350H steel frame
Forming Speed	4-5M/min
Color	Custimized
Type of Driven	Chain drive
Transmission Method	Electric
Number of rolling mill sets	16 row molding
Spindle diameter	Φ70mm(Solid shaft)
Customized	Customized
Feeding method	Double hand rocking feeding rack (with pressure roller)
Specification	9000mmx1800mmx1700mm
Electrical Control System:	Industrial Computer PLC
Origin	Cangzhou, Hebei
Warranty	1 year
Transport Package	Plastic Film & Steel Wire Fixed
HS Code	8455221000

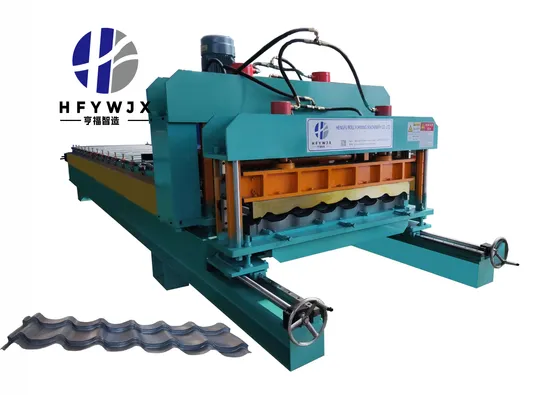

The roller table forming part of the 1100 partial arc roll forming machine is driven by a motor, and the chain drives each roller to rotate. In the pressing part, a hydraulic cylinder drives the mold to move up and down, which can press the colored steel into many sections, shaped like glazed tiles. The cutting knife part of the 1100 type arc Glazed Roll Forming Machine is driven by a hydraulic cylinder to move up and down, which can cut off colored steel tiles.
The antique glazed tiles rolled by the 1100 type partial arc equipment and die-formed have the characteristics of beautiful appearance, simple and elegant, unique shape, taste, etc., and can be widely used in garden-style factories, tourist attractions, pavilions, hotels, villas, exhibitions Buildings and outdoor decorations such as hotels, resorts, homes, etc.

Raw materials	Galvanized steel plate, color steel plate
Machine frame	350H steel frame
Feed width	1200mm

Pattern diagram:

Detailed Photos
1. Framework: 350H steel frame
2. Number of rolling mill units: 16 rows for forming
3. Roll material:45 # steel rough lathe fine lathe outer circle grinding and electroplating treatment
4. Spindle diameter: Φ 70mm
5. Feeding method: Double hand rocking feeding rack
6. Cutting: Cut after molding, hydraulic double linear guide rail follows the cutting pattern
Workshop
Packaging & Shipping
Company Profile
Hebei Hengfu Roll Forming Machine Co., Ltd. is a professional manufacturer of cold-bending forming equipment and its complete set of automated production lines. With advanced production equipment and product development and design capabilities, the products are at the leading level in the industry with the advantages of high rate, high precision, high flexibility, and low processing loss, and the products are favored by industry customers.
Our company's main products include: color steel plate equipment, glazed tile equipment, floor decking equipment, CIZ steel forming equipment, composite sandwich panel assembly line equipment, car compartment panels, dust removal anode plates and other equipment. We can design and manufacture special models according to user requirements, provide users with technical guidance, production installation, commissioning, and after-sales one-stop service.
In recent years, a large number of products have been sold to more than 50 countries and regions including Russia, India, the United Kingdom, Australia, Kazakhstan, etc., and have been well received by customers at home and abroad.
Certifications
FAQ
Q:- Are you a manufacturer?A:Yes absolutely. Welcome a lot for your visiting to us.Q:- What's the delivery time?A:Normaly will take 45daysQ:- What service can you provide before order?A: About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price,payment terms, ect.If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.Q:- Can you finish the machine during the delivery time?A: We will finish the machine in time according to determined lead time.Q:- Do you have after-sale support?A:Yes, we're always here for giving you advice and support for technical details since we have senior technician. Q:- Any other service?A: We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
