High Position Discharge Combine Harvester Paddy Wheat Farm Equipment
| US$15,000.00-22,000.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
CAG-100+
Application
Rice, Corn, Wheat, Soybean, Paddy
Power Source
Diesel
Harvest method
Cutting
Drive Type
Hydraulic Transmission
Transmission
Belt
Portable Harvester Type
Self-Propelled Rubber Track Full Feed
Certification
ISO9001:2008
Color
Red
Condition
New
Application Field
Agriculture
Warranty
12 Months
Feed Capacity
5 Kg/S
Fuel Tank Capacity
210 L
Rated Power
102 HP
Cutting Width
2200 mm (2000/2500 mm Optional)
Grain Tank
1.4 Cbm
Transport Package
Complete in Container
Specification
5080mm*2600mm*2705mm
Trademark
Cagri
Origin
China
HS Code
843351009
Production Capacity
10000 Pieces/Year
Product Description

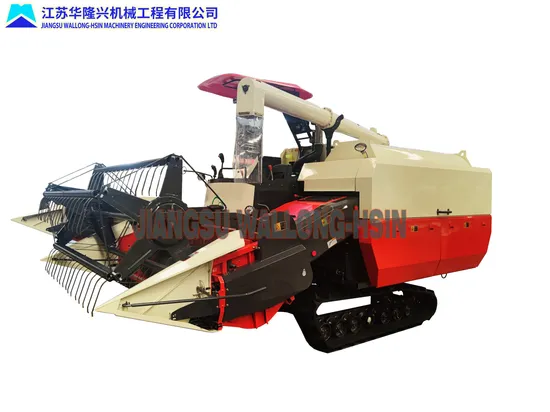

Product DescriptionCAG-100+ is new generation of full-feed combine harvester with the characteristics of comfortable driving, low noise, high reliability, excellent operating performance, and strong paddy field passing ability.
The threshing system is Spiked Tooth Axial Flow. The combine harvester is mainly used for the harvesting of rice and wheat. With optional accessories, it can also be used to harvest soybean and maize.
The horse power of diesel engine: 88hp / 100hp / 110hp; cutting width: 2000mm / 2200mm; Hydrostatic Transmission(HST); The width of rubber track: 450mm / 500mm / 550mm; Top swing type discharging pipe; AC Cabin is optional.
Detailed Photos
Product Parameters
| Model | CAG 100+ | ||
| Type | Crawler Self-propelled Full-feed | ||
| Engine | Type | Water-cooled, 4stroke, Direct Injection, Turbocharged Vertical Diesel | |
| Rated Power(kw/ps/rpm) | 75 / 102 / 2400 | ||
| Starting system | Electric Start | ||
| Dimensions | Overall Length(mm) | 5080 | |
| Overall Width(mm) | 2600 | ||
| Overall Height(mm) | 2705 | ||
| Feed Capacity(kg/s) | 5 | ||
| Fuel Tank Capacity(L) | 210 | ||
| Fuel Consumption(kg/ha) | ≤30 | ||
| Min. Ground Clearance(mm) | 330 | ||
| Operation Weight(kg) | 3800 | ||
| Driving System | Crawlers | Rubber Track | 500 x 90 x 53 |
| Track Gauge | 1150mm | ||
| Transmission | HST Capacity | 45cc | |
| Working Speed(km/h) | Lower: 0-4.45 | ||
| Medium:0-6.07 | |||
| High: 0-7.6 | |||
| Cutting | Pickup Reel Diameter(mm) | 900 | |
| Height Adjustment | Hydraulic | ||
| Cutting Width(mm) | 2200 | ||
| Threshing Cylinder | Quantity | 1 | |
| Diameter x Length(mm) | Φ640x2041 | ||
| Grain Tank(m³) | 1.4m³ | ||
| Grain Unloading | High Positioned, Swing Type Discharge Auger | ||
| Operation Effeciency Estimated Value (ha/ hour) | 0.4-0.8 | ||
| Stalk Chopper | Optional | ||
