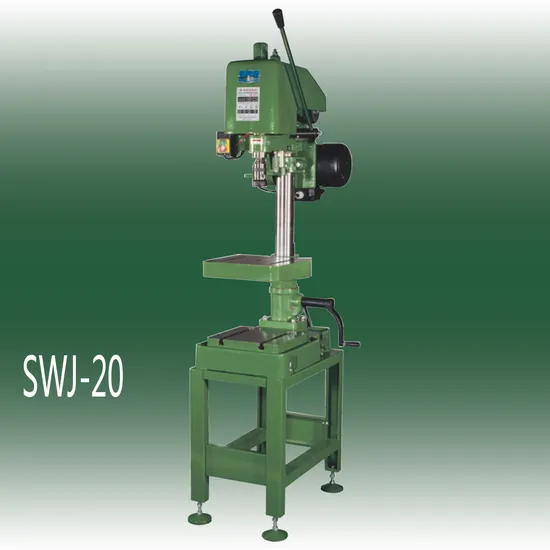

Swj-20 High Speed Vertical Tapping Machine Metal Heavy Duty Cast Iron Steel Tapper Machine M20 M16
| US$1,083.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SWJ-20
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
1100W
Max Drilling Capacity
20 mm
Transport Package
Wooden Case
Specification
85x60x128cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
| Model | SWJ-6/SWJ-12 | SWJ-6B/SWJ-10 | SWJ-6A/SWJ-12A |
| Max.tapping capacity(Cast iron/Steel) | M6/M5,M12/M8 | M8/M6,M12/M10 | M6/M5,M12/M8 |
| Distance spindle axis to column surface | 127mm | 140mm | 127mm |
| Max.distance spindle nose to worktable | 261/250mm | 300/265mm | 231/220mm |
| Spindle/Worktable travel | 40/45mm | 50mm | 40/45mm |
| Spindle taper | B12/B16 | B12/B16 | B12/B16 |
| Spindle speeds range | forward:480.850rpm/260-750rpm | forward:350-1310rpm/250-800rpm | forward:480.850rpm/260-750rpm |
| reverse:580,1050rpm/320-930rpm | reverse:480-1790rpm/340-1100rpm | reverse:580.1050rpm/320-930rpm | |
| Dimension of worktable surface | 196x196mm/230x230mm | 200x200mm | 230mm/245mm |
| Overall height | 815/825mm | 767mm | 815/825mm |
| Motor | 370W | 370/550W | 370W |
| G.W./N.W. | 63/43kg,72/48kg | 73/60kg | 63/43kg,72/48kg |
| Ship measurement | 61x44x93cm | 60x40x72cm | 61x44x93cm |
| Model | SWJ-16B | SWJ-16/SWJ-16A(K) | SWJ-20 |
| Max.tapping capacity(Castings/steel parts) | M16/M12 | M16/M12 | M20/M16 |
| Diameter of column | 70mm | 73mm | 73mm |
| Spindle speeds range | forward:240,380,570r/min | forward:240-570rpm | forward:160,250,380rpm |
| reverse:275,440,650r/min | reverse:275-650rpm | reverse:170,280,420rpm | |
| Max.distance spindle nose to worktable | 492/450mm | 400mm | |
| Max.distance spindle nose to base | 500mm | 676mm | 676mm |
| Distance spindle axis to column surface | 184.5mm | 183mm | 183mm |
| Spindle taper | B18 | B18 | B18 |
| Spindle travel | 50mm | 50mm | 50mm |
| Head stock vertical travel | 395mm | 300mm | |
| Dimension of worktable surface | 270x280mm/320mm | 300x310mm | |
| Dimension of base worktable surface | 250x300mm | 254x237mm | 270x280mm |
| Overall height | 1030mm | 1230mm | 1235mm |
| Motor | 750W | 750W | 1100W,910rpm |
| G.W./N.W. | 118/90kg | 120/102kg | 199/161kg |
| Ship measurement | 83x49x87cm | 79x46x134cm | 85x60x128cm |
