Corn Soybean Feed Pelletizing Mill Feed Pellet Making Machine Processing Line for Animal

Product Description

Corn Soybean Feed Pelletizing Mill Feed Pellet Making Machine Processing Line for Animal
Product Description
Leabon has many years of experience in the production of feed machines and now has three line feed machines: small capacity feed pellet machine (flat die poultry feed pellet machine, 200-1100kg/h),medium capacity feed pellet machine(CM series ring die pellet machine) and large capacity feed pellet machine (SZLH series ring die feed pellet machine, 1-30t/ h). Large capacity feed pellet machine is mainly composed of: feed hammer mill, feed mixer, ring die feed pellet machine, cooler and screener, feed pellet packaging machine
Technical parameters of livestock feed processing machine
Flat Die Feed Pellet Machine Parameters

Model	Power (kw)	Capacity (kg/h) Animal feed	Weight (kg)	Package size(cm)
PM-200B	7.5	200-300	240/270	100*43*95
PM-230B	11	300-400	290/320	114*47*97
PM-260B	15	400-600	330/380	120*50*107
PM-300B	22	600-800	410/450	127*52*107
PM-360B	22	800-900	470/500	127*52*107
PM-400B	30	900-1100	630/660	147*60*115

Ring Die Feed Pellet Machine Parameters
CM Series

Parameter/Model	CM-25A	CM-25B	CM-30B
Output(kg/h)	1000-1200	1000-1500	1500-2000
Power (kw)	22	22	30
Feeding motor(kw)	/	0.75	0.75
Revolving Speed of ring die (r/min)	306	306	330
Inside diameter of ring die(mm)	250	250	304
Pellet diameter(mm)	Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8	Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m)	1.1*1.15*1.25	1.1*1.15*1.25	1.35*1.3*1.6
Weight(kg)	625	710	960

SZLH Series

Model	Main power(kw)	Out-put(t/h)	PowerofConditioner(kw)	Power of screwfeeder(kw)	In-side of rind die(mm)
SZLH320	37	2-3	2.2	0.75	320
SZLH350	55	3-5	3	0.75	350
SZLH400	75/90	3-10	5.5	1.5	400
SZLH420	90/110	3-14	5.5	1.5	420
SZLH508	110/132/160	6-15	7.5	2.2	508
SZLH558	180/200	10-20	11	2.2	558
SZLH678	220/250	25-30	18.5	3	678

Product Line
1.this production line including hammer mill, feed mixer, feed pellet machine, counter flow cooler&screen,packing machine in one, advanced design, simple structure, wide applicability, small area, low noise.
2.The particles are suitable for feeding rabbits, cows, ducks and other animals, and can achieve higher economic benefits.
3.The machine can be used to granulate different materials to achieve the best effect.
4.Adapt to different materials to ensure the pressing effect.
1.Hammer Mill
1)Widely used in feed mills,food factories,livestock farms, etc;
2)Used for crushing various kinds of pellet raw materials such as corn, sorghum, wheat, bean, wood chip, etc; it' an ideal general type hammer mill;
3)Rotor has passed high precision balance test;small vibration and long service life.

2.Feed Mixer
1)HJJ series of horizontal ribbon mixer is suitable for concentrated feed, the full price of powdered feed mixing.
2)Specially designed nesting institutions open angle rapid discharge, fast discharge, small residues.
3)Double helix ribbon hybrid mixed in no dead ends,short cycle. Designed with liquid oils to add pipe.
4)Pneumatic or manual door opening mechanism,convenient and reliable.

3.Feed Pellet Machine
Small Capacity&Home Use Flat Die Feed Pellet Production Line
1.This feed pellet machine is used to produce pellet feed for pig, cattle, sheep, rabbit, chicken, duck, fish, etc;
2.The raw material could be corn, soybeans, fish h meal, wheat bran, grass, alfalfa, straw etc materials.
3.The moisture content of material could be:12-16%.
4.The size of materials could be: 6mm.

Medium Capacity&Farm Use CM Series Ring Die Feed Pellet Production Line
1)Drive mechanism adopts high strength belt, with steady running and low noise;
2)Drive mechanism adopts high quality bearing to ensure high speed and stable operation;
3)Feeding part is equipped with a permanent magnet to remove Metallic impurities; this prolongs the service life of main parts and meanwhile reduce the use of auxiliary equipment.

Big Capacity&Farm Use SZLH Series Ring Die Feed Pellet Production Line
SZLH series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for chemical industry, fertilizer industry and sugar industry.

4.Cooler & Screener
1)Adopt counter-flow cooling theory, the pellets cooling fully and evenly;
2)Adopt unique vibrate materials discharging institution, discharging evenly, no residue;
3)The pellets after cooling, the temperature not higher room temperature 3-5 degree;
4)Unique arc-shaped cooling bin, no cooling g dead corner.

5.Packing machine
1)New controller with high precision can display the total weight, number of package, easy operation.
2)The adaptive software, having the function of automatic control parameters setting,automatic drop revising, over-weight warning and auto-diagnosis.

Production Line Display
Small Capacity Feed Pellet Production Line Display

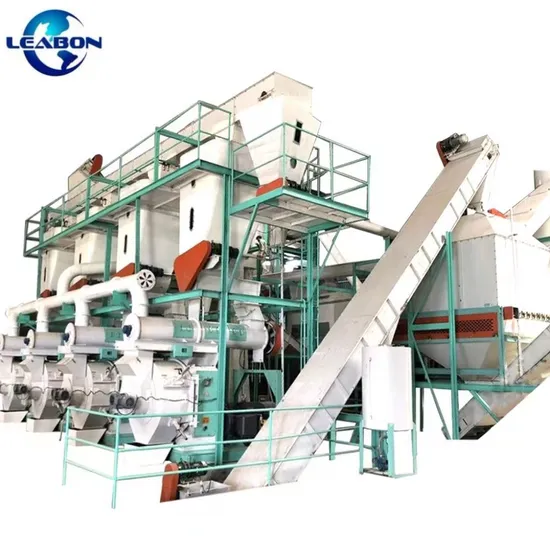

Medium and Large Feed Pellet Production Line Display
Raw Materials & Final Products

Application

Packaging & Shipping
Normally, we adopt wooden case or container.If export to European countries,the wooden box will be fumigated.If container is too small,we will use PE film for packing or pack it according to customers special request.
Our transport operators & delivery facilities are ready on time and when the contains arrive at the factory , they are guaranteed to ship according to the scales .
After Sales Service
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can provide you the different mould to meet your different requirements.
5.We can also meet the special voltage demand.
6.The engineer is available to service machinery oversea
Company Profile

FAQ

Q1:what's raw material suitable for making feed pellet? ------Corn,soybean,wheat,rice,wheat bran,fish meal,bone powder,meat, alfafa,silage,straw,grass, hay etc.

Q2:What's the capacity of your feed pellet machine can be choose? ------The SZLH series have 0.5-1.5T/H,2-3T/H,3-5T/H,3-10 T/H,3-14 T/H,6-15 T/H,10-20 T/H,25-30 T/H to choose from; the CM series have 100-200kg/h, 500-700kg/h, 1000-1200kg/h, 100-1500kg/h, 1500-2000kg/h to choose from.

Q3:What's the certification of your feed pellet machine? ------CE Certification.

Q4:What's the warranty of feed pellet machine? ------Warranty:1 Year(except spare parts).

Q5: What's your payment terms? ------Payment terms: T/T; L/C; Western Union; Money Gram.
