Kc310 Tfo Yarn Twisting Machine for FDY DTY PP Yarn in High Tpm

Product Description

Product Description

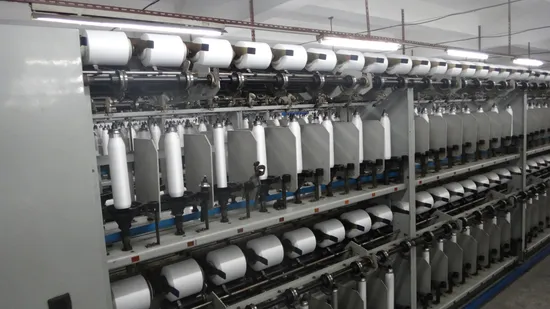

KC310 Yarn Twisting Machine Two For One Twister For Filament Fibers
It is applied to make twisting of filament yarns such as DTY, FDY, rayon yarns, pp yarns and other yarns in high TPM.
Features
A. The small-diameter spindle for yarn bobbins in cannonball type can obtain high-speed but stable twisting, and also obtain high production efficiency.
B. Double-layer design makes machine have double production capacity on just one machine.
C. To choose the servo motor yarn guide or the gear box mechanical linkage yarn guide, according to different customers' production conditions or requirements.

Product Parameters
KC310: make twisting of filament yarns in high TPM;

Number of spindles	256 (32spindles per section)
Twist direction	S or Z
Twist range	350-3989T/M (need to be selected)
Power motor	7.5KW*2
Overall size	16410*750*1895mm

Spindle gauge: 225mm;
Normal spindle quantity: 8000~14000rpm (according to different yarns)
Max. spindle quantity: 15000rpm;
Form of spindle driving: belt circulating drive;
Take-up tension: adjust the yarn in roller angle;
Spindle fixture: magnetic fixture;
Tensioner: ball tension device;
Size of yarn winding bobbin: L240~320*φ42*φ110
Size of winding bobbin: φ160*φ89*L165*L173
After Sales Service
For demo machine set:
32 spindles/section+Machine head;
Wooden case packing;
*provide the spare parts;
*Gurantee: one year;
*Provide remote installation or door-to-door installation service;
*Provide after sales service;
*Welcome to visit our factory;
Certifications
ISO9001; ISO14001; ISO45001; CE;
Company Profile
Zhejiang Kaicheng lntelligent Machinery Co., Ltd. is a national high-tech enterprise dedicated to manufacturing intelligent winders and twisters, and also researching, developing automation control software for high-end textile machinery. Kaicheng insists on technological innovation as its core competitiveness of the enterprise. We focus on researches in the field of twisting and winding technology, and keep up with international level especially some famous brands from Europe. We are the best choice and replacement for European brands. Kaicheng products are being sold not only in China but are exported to Southeast Asia, West Asia and North-America, Central and South America, as well as Europe. Kaicheng has set up full set of advanced processing equipment and technology research centers to take its research activities. Moreover, Kaicheng has established long-term cooperation relations with Donghua University, Wuhan Textile University and other universities; "Modern Textile Machinery Research Institute" and "Postgraduate Training Base" was co-established by Zhejiang Kaicheng Intelligent Machinery Co., Ltd.& Zhejiang Sci-tech University in year of 2020.
