Factory Price High Quality Commercial Spot Light Narrow Angle Anti Glare COB 7W 9W 13W 30W Spot Down Light LED

Product Description

Founded in 2018, Yifeng Lighting Technology Co., Ltd. is headquartered in Jiangmen City, Guangdong Province. It is a high-tech enterprise integrating research, development, production and sales of LED lighting products. The company has a scale of 3,000 square meters, equipped with 4 production lines suitable for lamps and lamps, professional lamp aging lines, testing equipment, 50 employees, and is constantly growing.
Since its establishment, the company has set up a complete R&D team of engineers, complete procurement process, quality management and production process. The company has always been focusing on foreign trade business and has won unanimous praise from customers in domestic and foreign markets. The products sell well in the Middle East, Asia and South America markets, forming a series of professional lamps suitable for these markets. Based on the current, the company's purpose is "professional, high-quality, and being a strong self"
It is hoped that in the future, the company will further invest in the research and development of more high-quality products based on the lighting industry. Provide customers with more high-quality lighting solutions.
Best sales products:
LED Tube light.
LED Linear batten
LED tri-proof light ( water proof)
LED panel light
LED down light.
Product Features:
1. Aluinnum white body, efficient heat dissipating, enable a long-life time to the products.
2. Energy saving, 90% savings compared to traditional incendescent tube. 40%-50% compared to fluorescent tube.
3. Long life 2 years warranty. 180° beam angle.
4. More environmentally friendly: No mercury lamp harmful substances, can be recycled to protect the green earth.
5. Easy to install: Recessed /surface-mounted to the ceiling or wall.
Material: aluminium body + PC cover
Power: 5w, 7w, 9w, 13w 30w.
Lumens: 75-80LM/W
Voltage: AC176-264V 50/60Hz
CCT: 3000K/ 4000K/ 6500K
Application: For all indoor dry locations.
Parameter of Full set of LED Slim panel light Recessed Round (LED Panel light)

No

Type

Item

Units

Data

DYF-SDL01-30

DYF-SDL01-05

DYF-SDL01-07

DYF-SDL01-09

DYF-SDL01-13(ABCDEF)

1

Electronic Data

Supply Voltage

V

AC165-265V

AC165-265V

AC165-265V

AC165-265V

AC165-265V

2

Supply Frequency

Hz

50/60

50/60

50/60

50/60

50/60

3

Power Consumption

W

30W±10%

5W±10%

7W±10%

9W±10%

13W±10%

4

Power Factor

-

0.9

0.5

0.5

0.5

0.5

5

LED Data

LED Model

-

COB

SMD

COB

COB

COB

6

Chromaticity Data

Color Temperature

K

2700K/3000K/4000K/6000K

7

CRI

-

Ra>80

Ra>90

Ra>90

Ra>90

Ra>80

8

Luminous Flux

lm

3840Lm±10%

350Lm±10%

400Lm±10%

570Lm±10%

850Lm±10%

9

Luminous Efficiency

lm/W

128Lm/w

70Lm/w

57Lm/w

63Lm/w

65Lm/w

10

Angle

°

15° / 24° / 40°

15° / 24° / 36°

15° / 24° / 36°

15° / 24° / 36°

15°/ 24°

11

Dimming

-

NO

NO

NO

NO

NO

12

Structure Data

SIZE

mm

Φ135*H119 (outcut Φ125)

Φ55*60(outcut Φ48)

Φ63*77(outcut Φ55)

Φ90*100(outcut Φ75)

Φ80*95(outcut Φ70)

13

Material

-

aluminium

aluminium

aluminium

aluminium

aluminium

14

Install

-

Recessed

Recessed

Recessed

Recessed

Recessed

15

Colour

-

White

white ring+black heat sink

white ring+black heat sink

white ring+black heat sink

white ring+black heat sink ( 6 types of ring)

16

Operating Condition

Rated Lamp Life

H

25000H

25000H

25000H

25000H

25000H

17

Working Temperature

ºC

-20ºC~40ºC Indoor

-20ºC~40ºC Indoor

-20ºC~40ºC Indoor

-20ºC~40ºC Indoor

-20ºC~40ºC Indoor

18

IP

-

IP20

IP20

IP20

IP20

IP20

19

Use Environment

-

Hotel, office, shops, supermarket etc.

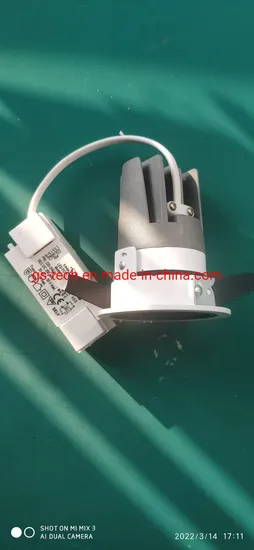

Product image
To support buyers and lower their import tax, S.K.D delivery is available.
