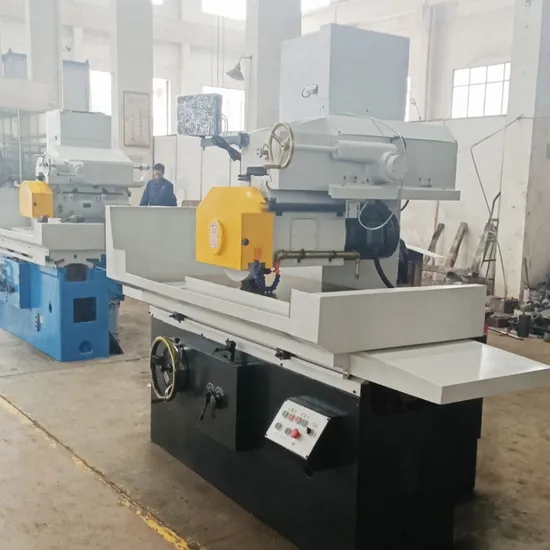

M7140 Metal Surface Grinding Machine for Sale From China Factory

Product Description

Product Description
Wheel head moving surface grinder Features:This series of surface grinder is most suitable for the grinding steel, casting and non-ferrous parts of machine manufacturing industry.The accuracy of the machine has reached the National Standard for horizontal spindle & rectangular worktable surface grinder.The longitudinal movement of the worktable is driven by vane pump, which makes the movement smooth and low noise.The bearings of the wheel head spindle adopt bimetal shell bearing, which can afford heavy impact and make the machine able to carry out heavy load grinding.The cross movement of the wheel head can be driven by hand or by hydraulic oil automatically. It is easy to operate. The vertical feed of the wheel head is driven by hand. It is also assembled with rapid elevating motor, which can reduce the intention of work labor as well as enhance the work efficiency.The machine moves smoothly and has reliable performance, low noise and stable accuracy. It is easy to operate and deeply welcomed by the customers.
Product Parameters

Model

Unit

M7130

M7140A

M7140A

M7140A

M7150A

M7150A

M7150A

M7163

M7163

M7163

x1600

x2200

x1000

x1600

x2200

x1250

x1600

x2200

Worktable size(WxL)

Mm

300x1000

400x1000

400x1600

400x2200

500x1000

500x1600

500x2200

630x1250

630x1600

630x2200

Max matching dimension(W x L)

Mm

300x1000

400x1000

400x1600

400x2200

500x1000

500x1600

500x2200

630x1250

630x1600

630x2200

Max distance between spindle center

Mm

575

600

700

lineand worktable surface

Longitudinal moving speed of worktable

m/min

5//25

3//27

T-slot number x W

Mm

3x18

3x22

Wheel head

Continuous

m/min

0.5-4.5

feed speed

Cross moving

Intermittent

Mm/t

3//30

feed speed

Hand wheel

Mm/gra

------

0.02

0.01

feed

Vertical

Rapid

Mm/min

400

Moving

speed

of wheel head

Hand wheel

Mm/.gra

0.005

feed

Wheel Head

Power

Kw

5.5

7.5

7.5

motor

Rotation

Rpm

1440

speed

Total power

Kw

8.63

11

13.5

12.25

13.75

15.75

13.75

15.75

Max loading capacity

Kg

470

620

1000

1380

700

1240

1410

1010

1290

1780

of worktable

(with chuck)

Chuck size(WxL)

Mm

300x680

400x1000

400x800

400x1000

500x1000

500x800

500x1000

630x1250

630x800

630x1000

x1

x1

x2

x2

x1

x2

x2

x1

x2

x2

Wheel size

Mm

350x40

400x40

400x40x203

(ODxWxID)

x127

x127

Machine

Cm

286x154

311x182

494x182

674x182

311x190

514x190

674x190

399x220

514x220

674x220

dimension(LxWxH)

x203

x223

x223

x223

x242

x242

x242

x242

x242

x242

Machine Weight

t

3.49

5.01

6.51

7.6

5.78

7.32

8.78

6.86

7.85

9.65
