Paper Product Line Machine Making N Fold Hand Towel Paper Making Machine

Product Description

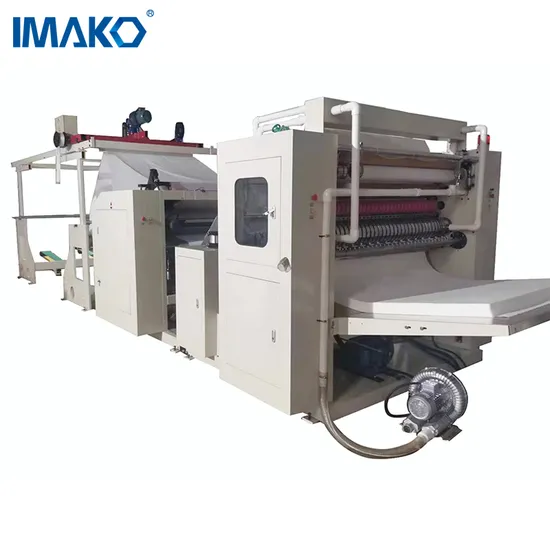

Hand Towel Machine
Max. working speed:
600-800sheets/min/line for laminated hand towel;
800-1000sheets/min/line for common hand towel.
output Style and Specification


Machine Performance and Parameters

YY-N Hand Towel Machine with Lamination
1. Jumbo roll	(1) Jumbo roll size:Maxφ1500mm×1400mm (jumbo roll diameter×width); (2)Jumbo roll material:20-26g/m^2 single-ply hand towel paper(wet-strength),suitable for glue lamination; 36-45g/m^2 single-ply wood-pulp paper; (3) Jumbo roll core inside diameter:3"(φ76m) (4)Floor standing wall plate with thickness of 30mm. (5)Two unwinding stands, two wide and flat belts for each unwinding stand. (6)Paper tension is controlled by independent motor frequency conversion, It is slightly adjustable on the touch screen. (7)Electric travelling crane.
2. Product size	(1)Transverse cutting size: 225±2mm;(Other sizes please order) (2)Folded size: 75±2mm; (3)Product sizes:225x230mm (4)Production speed: 600-800sheets/min/line for laminated hand towel; 800-1000sheets/min/line for common hand towel. (5)Product folding finished very smooth and neat, no wrinkles.
3. Common Embossing Part	(1)One set of steel to steel emboss. Steel emboss roller is made by Laser engraving(Buyer provides the emboss pattern and confirm with seller) (2) Upper and lower structure, Wall plate thickness 55mm, Pneumatic cylinder pressure control, Equipped with limit device. (3)Paper dust removal and lubrication by felt; Safety device; (4)The steel roller diameter is 240mm, roller thickness 40mm, The roller material is high frequency processed by special 40CR round steel.
4. Glue lamination	(1)Two sets of steel-to-rubber emboss for lamination hand towel, steel emboss rollers are made by Laser Engraving(buyer provides the emboss pattern and confirms with seller); (2)The embossing rollers can be synchronized with paper feeding unit and folding unit to ensure stable paper tension. (3)Cylinder lever pressure, Easy to do web threading, paper dust removal by felt. (4)The glue application parts will automatically open while the machine stops or while paper breaking; The glue roller will automatically rotate to avoid glue drying. (5)Automatic glue washing by Push button(finish in 2 mins); (6)Bell alarming while the glue is not enough. (7)The steel embossing roller diameter is 290mm, the roller thickness is 40mm, The roller material is high frequency processed by special 40CR round steel. (8)Initiative rolling cleaning device for steel glue application roller, ensuring no paper sticking on the roller(Invention patent) (9)Wall plate thickness 55mm.
5. Folding and Cutting part	(1)Vacuum absorption type; (2)Transverse fixed knives can go up and down independently by cylinder , ensuring cut off (3)Transverse rotary knives angle is adjustable. (4)Floor standing wall plate with thickness of 55mm. (5)Paper spreading by adjustable Arc-shape rollers.
6. Power needed	(1)Vacuum pump: 22KW(Longtech brand); Crane: 4KW; Paper feeding motors: 1.5KW*2; 0.75KW(left and right moving); (2)Main motor:7.5KW, Glue lamination unit:11KW (3)380V, 50HZ (4)Air pressure:≥0.5Mpa. (5)Main motor frequency speed regulation, independent electric cabinet with air ventilation and cooling function. (6)Movable Emergency stop switch box.
7.Others	(1)PLC: Siemens brand; Inverters: Siemens brand. (2)Baking paint for metal, machine drive in yellow color, main machine in creamy-white color, safety cover in creamy-white color; (3)Export packaging; (4)Safeguarding: All driving and nipping parts have safe covers and danger signs. (5)All driving rollers adopts expansion sleeve.

Company Profile IMAKO is a company entirely focused on the manufacture and design of automated package equipment for household paper industry. We always aim at developing user-oriented innovative solutions for worldwide tissue paper manufacturer to solve their production needs and efficiency problem. To become a global advanced machine manufacturer , we also designed and developed full automatic toilet paper production line, tissue napkin production line, handkerchief production line, hand towel production line,with rewinder, folder, cutter, single packer, bundling packing machine, case packing machine and robot palletizer.we also provide packaging solutions for personal care products like baby diaper packaging machine, wet wipes packaging machine and sanitary pad packaging machine that are built to deliver easy operation, high productivity, quick size changeover and simple maintenance.
Our mission is to innovate our technology to meet the future market changes and challenges, continuously improve efficiency to help customers solve production problems. From design, production, solutions to services, we strive to provide you with satisfactory experience and to become your long-term partner. We will become a first-class brand of toilet paper machine manufacturer with first-class system and outstanding talents.We remember that without the trust of our customers, we would not be here we are today.
IMAKO has been dedicated to household paper packaging machinery industry for years, and has accumulated much experience. Value-added service to our client is our sole goal, mutual benefit is our base for development, solution is our answer to project.

Paymentterm:T/T,L/C,30% down payment when placing your order, 70% balance payment before shipment.

Delivery: FOB,CFR,CIF,EXW,FCA,CPT. Lead Time: It depends on the machine models and your requirement on packing sizes.Usually within 30 days of Off Season , within 50 days of peak season upon receiving deposit

After service: Seller would repair or replace the damaged parts free of charge caused by the machine poor design or manufacturing defects within this period.Guarantee period is not applicable for the consumables and once damaged, buyer can purchase the consumables from the seller at reasonable prices.
We would systematically train your engineers about the operation, maintenance and supervision and share the knowledge and experience regarding the machine operation and maintenance by fax or at each visit.
If buyer need our technician to fix the machine abroad,buyer shall be responsible for all costs of service like airtickets,accommodation and local transportation.
Besides buyer need paid for the technician USD50/person/day as salary when our Technician going to your country. FAQ

Q 1. Where is your factory located?

A: Our factory is located in Shantou city,Guangdong province,China.Which is a beautiful coastal city in the South-eastern of China.The airport name in our city is Jieyang Airport,airport code SWA and high-speed railway station is Chaoshan Station.It's very convenient to come from Guangzhou city or Shenzhen city.

Q 2. How to Guarantee transaction security?

A: Before delivery, we will send the pictures and videos to you to check the quality. Or you could arrange checking on your own. Also license and certificate could be provided for checking.

Q 3: What technical support can I get during the transaction?

A: We offer online technical support at any time you want. Instructional videos, the way of daily commissioning and maintenance also wil be provided. If you need installation service, our technicians can go abroad but this is not free. During warranty you could replace the failed parts for free.

Q 4:How could i contact you if any problem there?

A: Send us email or leave us message, we will contact you as soon as possible.
