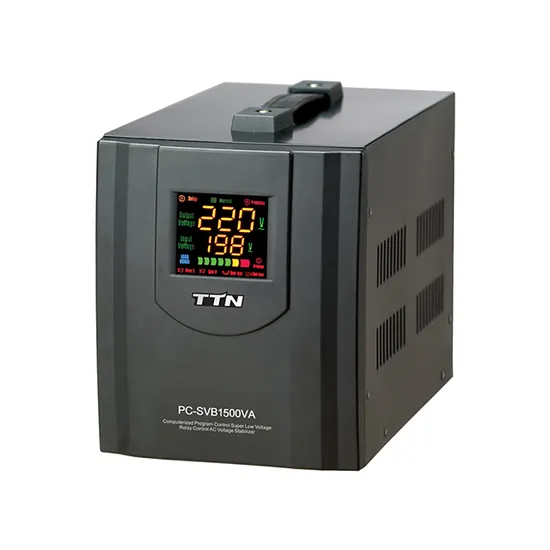

Ttn 2kVA 90% Effiency AC Voltage Regulator High Frequency Stabilizer
| US$25.55 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
PC-SVB-2000VA
Frequency Characteristics
Intermediate Frequency
Usage
SVC
Frequency
High Frequency
Size
Medium
Iron Core Shape
C
Power Source
Switching Regulated Power Supply
Application Range
Home Use
Brand
Ttn
Color
White and Black
Cetificate
CE, Soncap, ISO:9001...
Popular Market
Russia,South Africa, Vietnam, Thiland, Peru
Product Precise
220+-10%
Delay Time
255/5 Seconds
MOQ
100 Sets
Ambient Temperature
-15-45°
Relative Humidity
<95%
Effiency
>90%
Transport Package
Carton or Wooden Case
Specification
1000-15kva
Trademark
TTN, TINGLANG and customer brand
Origin
Wenzhou, Zhejiang, China
HS Code
8504401990
Production Capacity
2000kpcs/Month
Product Description
I. Advantages of our products
1. High technology: Relay Control + Computer Programmed Control Computerized
2.Unique design: LED display which can show all protection functions.
3.Quality ensurance: every spareparts is made by ourself,for example,transforma,PCB.
4.Perfect protection function:over/low voltage protection,over-heat,over-load protection
5.High efficiency:more than 90%
6.experienced manufactory: more than 20 years
II. Specifications(technical data):
Model: PC-SVR Series e
Capacity: 500-15000KVA
Input voltage: AC135-270V/105-270V/90-270V/80-270V
Output voltage: 220V+/-10%
Key service: support odm&oem
III. Taking part in Overseas fair
Canton Fair
HK Electric Fair
Moscow Electric Fair
India International Trade Fair
Nigeria Electronic Fair
IV. SERVICE OCCASIONS:
Appliable environment:
Computer
Test equipment
Lighting equipment
Alarm and security system
X-ray equipment
Medical equipment
Duplicator
Broadcasting equipment
Numeric control machine tool
Industrial robot
Photographic processing equipment
Laboratory instrument
Hi-Fi equipment
V. Product Paramter
| Model | PC-SVB500VA | PC-SVB1000VA | PC-SVB1500VA | PC-SVB2000A | PC-SVB3000A |
| PC-SVB5000VA | PC-SVB8000VA | PC-SVB10000VA | PC-SVB12000VA | PC-SVB15000VA | |
| Technology | Servo Motor Control System+Micro Computer Programmed Control | ||||
| Led Display | Info | Input voltage/output voltage/Load Usage/Time Delay/Normal Working/Protection | |||
| Protection | Over voltage | output voltage>=243±4v | |||
| Low voltage | output voltage<=188±4v | ||||
| Over loading | More than 120% | ||||
| Over temperature | 120°±10% | ||||
| Delay time | Long time(255 second)/Short Time (5 seconds) | ||||
| Circuit beaker | Regulator/bypass | ||||
| Language | English/Russian/Chinese | ||||
| Input Voltage | AC150-260v/120-240v/100-240v | ||||
| Output Voltage | 220V±3% | ||||
| Frequency | 50/60 HZ | ||||
| Phase | Single Phase | ||||
| Efficiency | >=90% | ||||
| Ambient Temperature | -15°-45° | ||||
| Relative Humidity | <95% | ||||
| Waveform Distortion | no additional wave form distortion | ||||
| Insulating Resistance | Normally more than 2MΩ | ||||
| Specification | |||||
| Power | 500va | 1000va | 1500va | 2000va | 3000VA |
| Package Size(cm) | 35.8*30.3*42.3 | 39.6*35.3*46.7 | 39.6*35.3*46.7 | 39.6*35.3*46.7 | 38.6*27.7*29.8 |
| Package(pcs) | 4 | 4 | 4 | 4 | 1 |
| G.M.(kgs) | 12.33 | 14.51 | 15.27 | 24.66 | 11.66 |
| Power | 5000VA | 8000VA | 10000VA | 12000VA | 15000VA |
| Package Size(cm) | 38.6*27.7*29.8 | 38.6*27.7*29.8 | 44.2*30.4*37.1 | 44.2*30.4*37.1 | 44.2*30.4*37.1 |
| Package(pcs) | 1 | 1 | 1 | 1 | 1 |
| G.M.(kgs) | 16.89 | 18.75 | 25.55 | 27.55 | 29.55 |
V. OUR TEAM
VI. OUR Certificate
