Automatic Industrial Rice Flour Milling Machine for Sale
Basic Info.
Model NO.
PI-UC40
Cutter Material
High-Speed Steel
Drive
Electric
Object
Seaweed Onion Powder
Type
Industrial Rice Flour Milling
Max Raw Material Size
20mm
Moc
Contact Parts in SUS304
fitness of Finished Products
10-200 Mesh
Type of Cooling System
Water Cooling
Safety Switch and Dust Collector
Optional
Capacity
According to The fitness of Finished Products.
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Adjustable Tongs
After-sales Service
Available
Warranty
1 Year
Principle
Rotated Disc
Transport Package
Standard Exprot Package
Specification
1750*1450*1650mm
Trademark
COBRO TECH
Origin
China
Production Capacity
300 Sets/Month
Product Description

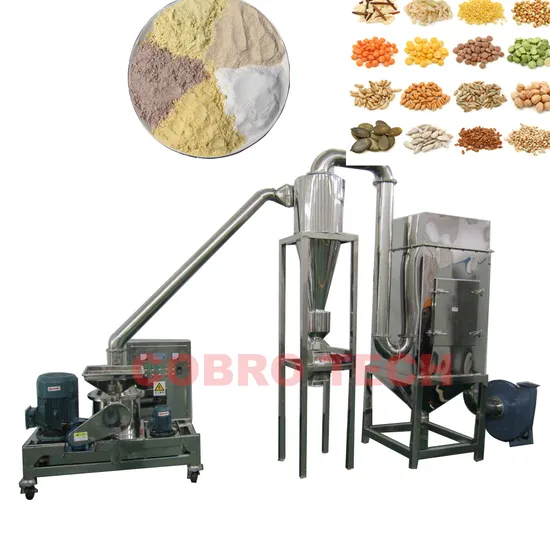

Product Description Automatic industrial rice flour milling machine for saleThe automatic rice flour milling machine consists of hopper,fixed discs,rotating discs,motor,dust collector (optional),control box and other related parts.It makes use of the high speed relative movement of the movable fixed disc and the rotating disc to crush the materials through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the materials.the crushed material can be discharged directly from the grinding chamber of the machine and the desired granule size can be obtained by installing screens with different apertures.Besides,the whole machine is made of stainless steel.The inner surface of the enclosure becomes smooth through processing,thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.As a result,the production of medicine,food and chemical products can better conform to the national standard and the GMP requirement. Product Parameters
| Model | PL-UC20 | PL-UC30 | PL-UC40 | PL-UC60 | PL-UC80 |
| Capacity(kg/h) | 30-150 | 30-330 | 50-450 | 80-560 | 120-750 |
| Speed of principle axis (rpm) | 4500 | 3800 | 3400 | 3000 | 2100 |
| Size of input granule (mm) | 10 | 15 | 18 | 20 | 25 |
| Finished products fineness (mesh) | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 |
| Power (kw) | 4 | 7.5 | 11 | 22 | 30 |
| Weight(kg) | 230 | 350 | 450 | 700 | 1200 |
Feature Automatic industrial rice flour milling machine for sale
1) Simple structure,easy in installation and maintation.
2) Adopting advanced world famous brand components in bearing,electric parts and operation parts.
3) Running in a high automatization and intellectualization,whole sealed design,no pollution
4) Apply a linker to connect with the air conveyor,screw conveyor ,which can directly inline with mixing machine,filling machine,packing machine .
Detailed Photos
Rotated Pin Screen Wator cooling inlet
Product Application
Best seller equipments
Vacuum conveyor Vibrating sifter Bag filler
Packaging & Shipping
