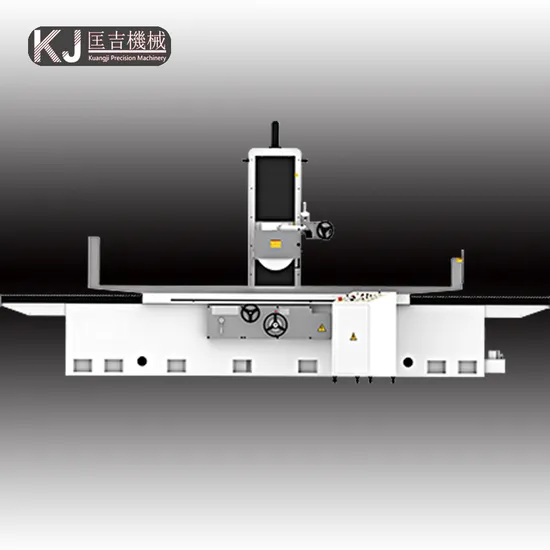

CNC Precision Surface Grinding Machine Psg-6020ahd Flat Grinder Movable Column Three-Axis Automatic Series Products
| US$69,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PSG-6020AHD
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Voltage
380V
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
PSG-6020AHD Standard model configuration: Three-axis automatic, up and down servo, water tank, electromagnetic chuck (magnetic strength can be adjusted), front and rear frequency conversion control, electrical cabinet 7-inch display, external handwheel| Technical parameters | |||||||||
| Item | Specification | Unit | PSG-5010AHR | PSG-5012AHR | PSG-6015AHR | PSG-7015AHR | PSG-6020AHR | PSG-7020AHR | |
| Capacity | Overall table working area | mm | 1000x500 | 1200x500 | 1500x600 | 1500x700 | 2000x600 | 2000x700 | |
| Longitudinal table travel | mm | 1140 | 1280 | 1600 | 1600 | 2230 | 2230 | ||
| Cross feed table travel | mm | 560 | 560 | 660 | 750 | 660 | 750 | ||
| Distance spindle center to table | mm | 600/(Standard)900/(Extended) | 600/(Standard)900/(Extended) | 600/(Standard)900/(Extended) | 600/(Standard)900/(Extended) | 600/(Standard)900/(Extended) | 600/(Standard)900/(Extended) | ||
| Table load including magnetic chuck | kgs | 1000 | 1000 | 1200 | 1200 | 1500 | 1500 | ||
| Table & Cross feed | T-slot | mmxn | 16x3 | 16x3 | 16x3 | 16x3 | 16x3 | 16x3 | |
| Longitudinal table speed | m/Min | 7-25 | 7-25 | 7-25 | 7-25 | 7-25 | 7-25 | ||
| Slide way | 1V1Flat | 1V1Flat | 1V1Flat | 1V1Flat | 1V1Flat | 1V1Flat | |||
| Cross feed on hand wheel | lgra | mm | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | |
| lrev | mm | 5 | 5 | 5 | 5 | 5 | 5 | ||
| Auto cross feed per stroke | mm | 0.5~12 | 0.5~12 | 0.5~12 | 0.5~12 | 0.5~12 | 0.5~12 | ||
| Power cross feed | 50HZ | mm | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | |
| 60HZ | mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | ||
| Grinding wheel | Wheel dimension | mm | 355~500x20~50x127 | 355~500x20~50x127 | 355~500x20~50x127 | 355~500x20~50x127 | 355~500x20~50x127 | 355~500x20~50x127 | |
| Spindle speed | 50HZ | R.P.M | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | |
| 60HZ | R.P.M | 1740 | 1740 | 1740 | 1740 | 1740 | 1740 | ||
| Vertical movement | Vertical on handwheel | lgra | mm | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 |
| lrev | mm | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||
| Spindle speedAuto down feed elevation | mm | / | / | / | / | / | / | ||
| Power head increment | mm/min | 250 | 250 | 250 | 250 | 250 | 250 | ||
| Motor | Spindle motor | HXP | 10x4 | 10x4 | 10x4 | 10x4 | 10x4 | 10x4 | |
| Power elevation motor | W | 1/2x4 | 1/2x4 | 1/2x4 | 1/2x4 | 1/2x4 | 1/2x4 | ||
| Hydraulic motor | HXP | 7.5x6 | 7.5x6 | 7.5x6 | 7.5x6 | 7.5x6 | 7.5x6 | ||
| Cross feed motor | W | 1/4x6 | 1/4x6 | 1/4x6 | 1/4x6 | 1/4x6 | 1/4x6 | ||
| Coolant motor | HXP | 180 | 180 | 180 | 180 | 180 | 180 | ||
| Dimension & Weight" | Machine height | mm | 2580/(Standard)3180/(Extended) | 2580/(Standard)3180/(Extended) | 2580/(Standard)3180/(Extended) | 2580/(Standard)3180/(Extended) | 2580/(Standard)3180/(Extended) | 2580/(Standard)3180/(Extended) | |
| Floor space | mm | 4200X2200 | 4200X2200 | 5366x2745 | 5366x2850 | 6240x2745 | 6240x2850 | ||
| Net weight | kgs | 5500 | 5700 | 6350 | 7000 | 8800 | 9500 | ||
| Gross weight | kgs | 6500 | 6700 | 7350 | 8000 | 9800 | 10500 | ||
