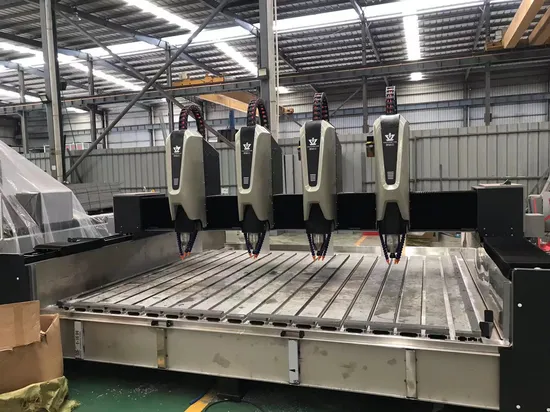

Multi Heads Stone Engraving Machine 3013t-2D/3D/4D for Marble and Granite
Basic Info.
Model NO.
3013T-2D/3D/4D
Application Material
Bluestone
Automation
Automatic
Control
CNC
Motor Power
High Power
Engraving Head Speed Adjustability
Wide Adjustable Range
Certification
CE
Current
AC
Application
Stone Industry
Customized
Customized
Voltage
AC220V/50Hz or AC380V/50Hz
Power
5.5kw-7.5kw
Control System
N60A
File Format
G-Code/Hpgl
Transport Package
Plastic
Specification
4300*2300*2300mm
Trademark
Jin Zuan
Origin
Fujian China
HS Code
8464909000
Production Capacity
10m/Hour
Product Description
| Model No. | 3013T-2D |
| Platform Dimension: | 3000*1300mm |
| Working Size: | 2500*1200mm for 1 piece; 1400*1200mm for 2 pieces |
| Machine Body: | Thickened Steel (10mm) |
| Working Table: | Aluminum T-Slot Table with PVC Plate |
| Linear Guide Rail: | Y Axis PMI-25 (Two Guide Rails); X Z Axis PMI-30 |
| Transmission: | X Y Axis Helical Rack; Z Axis Ball Screw with A Brake |
| Feed Height: | ≤400mm |
| Air Speed: | 20m/min |
| Processing Speed: | 20m/min |
| Spindle Power: | 7.5kw Water Cooling Spindle (Frequency Conversion) |
| Spindle Speed: | 6000-24000rmp/min |
| Drive: | Full Servo Drive |
| Motor: | Full Servo Motor |
| Reducer: | JZ8098 |
| Lubrication: | Automatic Lubrication |
| Coolant System: | Industrial Coolant System |
| Water Tank: | Stainless Steel |
| Operating Voltage: | AC220V/50HZ or AC380V/50HZ |
| Engraving Tool: | Φ6/8/10/12/14/16mm |
| File Format: | G code/HPGL |
| Positioning Accuracy: | ±0.02mm |
| Repeatability: | ±0.01mm |
| Control System: | NC Studio |
| Machine Dimension: | 4300*2300*2300mm |
| Weight: | 3200kg |
Company Profile
Certifications
Exhibitition
Packaging & Shipping
FAQ
F&Q
Q: Are you factory or trading company?
A: We are factory, located in Shuitou Town,Fujian Province, where is the stone center of China.
Q: What is the MOQ?
A: 1 set.
Q: What is the warranty time?
A: 1 year.
Q: This is the first time to use stone cnc router machine, is it easy to operate?
A: Yes, it is easy, we will support:
1).English guide video and instruction book are sent to you free together with the cnc router.
2).Free training course in our factory.Engineers are available to serve overseas but all the expense needs being paid by your side
