Hay Baling Machine for Straw Grass

Product Description

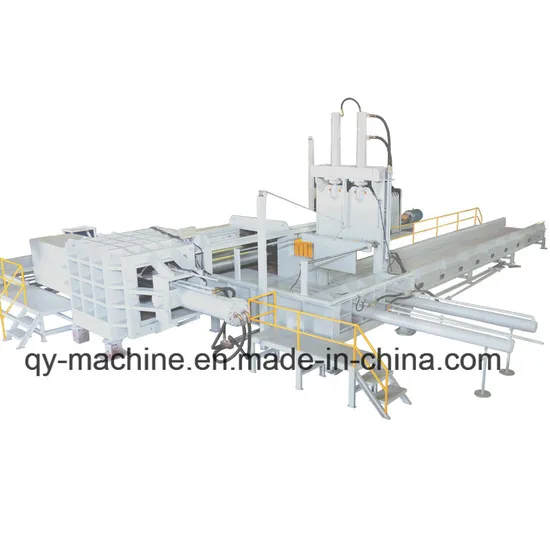

APB-500T automatic powerful forage straw baling machine(hay baler) is used in agriculture, animal husbandry and processing industry. The packaging sizes of various shapes such as square, square, etc. can be extruded by various kinds of loose objects, such as feed grass, etc., to reduce transportation and reduce storage cost. From feeding, transporting, packing, shearing, weighing, bagging, automatic operation, integrated control.
Photoelectric switch activates baler when charge box is full Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters Particular anti-slide design of the machine makes nicer bales Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals Equipped with rapid automatic tying system, easy for cleaning and maintaining Use differential technique for the hydraulic system, makes shorter cycle time so that improve the working efficiency and save electricity Automatic tension system ensures "brick-like" bales on all loose materials Adjustable bales length and bales quantity accumulating function make the operation of the machine more convenient Automatically detect and show the errors of the machine which improve the machine inspection efficiency International standard electric circuit layout, graphic operation instruction and detailed parts marks makes the operation been more easily understanding and improves the maintenance efficiency The press heads are specially processed by planomiller, ensures the precise running of the ram Use high quality hydraulic system from Taiwan, ensures the stable running of the machine The heavy duty machine body makes sure only flat ground is required by the installation
1. Model NO: APB-500T
2. Main Motor:45kw x 6
3. Pump Motor: 5.5kw
4. Conveyor Motor: 5.5kw
5. Cooling Tower Motor:1.5kw
6. Main Pressure: 500Ton
7. Side Pressure:150Ton
8. Bale Weight: about 450kgs/bale
9. Bale Size: W1067xH914xL1220
10. Feeding Hopper Size: L2250xW1450mm
11. Chamber Size: W926xH914xL1220mm
12. Overall Size: L15886xW12667xH4004mm
13. Total Weight: 65000kgs
