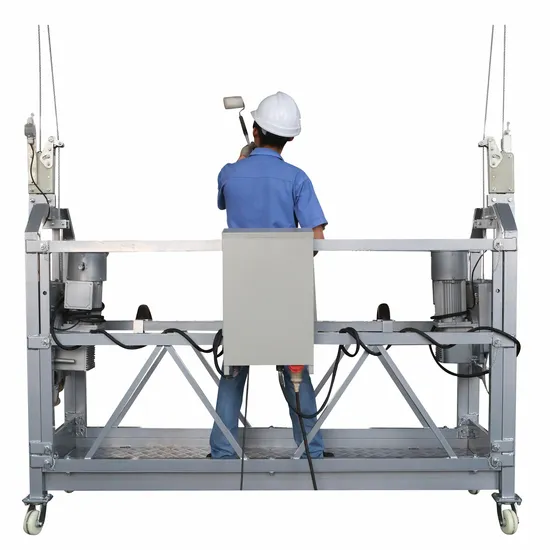

Pin Type Gondola with Adjustable Balustrade

Product Description

Shenxi is the largest and best manufacturer of supended gondolas in China with 33+ years history. Our supended gondolas have serviced for more than 80 countries all over the world.
Advantage of Pin type Platform:
1. Quick installed
2. Adjustable balustrade
3. Connection frame to easily adjust the platform length
4. Two types of bottom plate are available
5. Rated capacity range from 300kg to 1000kg.
Technical Parameters:

Model			ZLP300	ZLP500	ZLP630	ZLP800	ZLP1000
Rated Capacity			300kg	500kg	630kg	800kg	1000kg
Rated speed			7~9m/min	9~11m/min	9~11m/min	8~10m/min	8~10m/min
Platform Width			3m	5m	6m	7.5m	7.5m
Powered Unit: Hoist			LTD3	LTD5	LTD6.3	LTD8	LTD10
Steel Wire Rope			8.3mm	8.3mm	8.3mm	8.6mm	8.6mm
Weight	Counterweight		500kg	750kg	900kg	1000kg	1300kg
	Platform	Alu.	280kg	381kg	396kg	448kg	528kg
		Steel	310kg	440kg	480kg	594kg	630kg
	Suspension Mechanism		310kg
Electricity	Voltage		220/380/400/415/440V as option
	Frequency		50/60Hz
	Phase		Three Phase
Safety Device	Safety Lock		LSB30 Anti-titling
	Overload Device		As option
	Safety Harness		As option
Hanging Device	Suspension Mechanism		Projecting length 1.3m-1.7m
	Parapet Clamps		As option

Components photos:


Supended Gondolas Project Overseas:
Shenxi is a leading suspended platform manufacturer in China and with high reputation worldwide.
ZLP suspended platform is an ideal equipment for building facade construction, decoration, cleaning and maintenance, which are used for international projects such as Dubai Khalifa Tower, Jakata Mandarn Oriental Hotel, Guangzhou TV Tower and Beijing CCTV.
Long Lasting Lifetime: Intact after 18 Years of Use
1.The casting body is made of special aluminum material and it is processed by imported processing center by gravity casting process. The product has good precision and durabilitity. Castings are more drop-resistant than die-castings and are less prone to cracking.
2.The material of the driving disc is 40Cr, weight 5.4kg, after tempering and surface nitriding treatment, it is more wear-resistant and durable.
3.The worm wheel is made of tin-phosphor bronze 9-4 copper, 0.94kg, good toughness and wear resistance. The material of the worm and gear shaft is 38CrMoA1, of which the worm is 0.48 kg, which has good toughness and wear resistance.
4.Rope guide is made of special wear-resistant stainless steel material, which is not easy to be damaged and will not cause jamming. The cost of failure is extremely low and generally does not need to be replaced.
Long Lasting Cooperation: Reasons
1. 30+ years experience of manufacturing suspended platform
2. The suspended platform is used safely in 80+ countries
3. Professional foreign trade team with 12+ years average overseas sales experience
4. 20+ engineers' team offers customized solutions on suspended platfrom
5. Overseas representitive covers UAE, Saudi Arabia, Malaysia, Chile, Peru, Spain, Portugal, Russia, Ukraine, Belarus, Mexico, Uruguay, Thailand, Philippines and so on, which offers better after-sales service and back up
Package and Shipment: LCL (less than container load) shipment packages:
1. Hoist and safety lock will be packed together in carton and then pack on plywood pallet.
2. Loaded on a truck
3. Hoists and control boxes are packed by plywood case.
4. bottom plate package
5. end stirrup package
6. beam and upper colomn
7. 8 Loaded on a truck

FCL (full container load) shipment packages:
1. Hoist, control box, cable, components case load in front of container
2. components plywood case include heavy hammers, caster wheels, support rollers, hanging plates, reinforcing ropes and standard components for suspended platform.
3. end stirrup/installing frame for hoist
4. platform and beams
5. 6. 7. counter weights, platform pallets in the end of the container
8. suspension mechanism
International Certification: Shenxi Machinery, due to the high quality of our suspended platforms and the commitment of our employees, we have managed to obtain various certificates that can assure customers that they are cooperating with leading manufacturers in the industry. Below, we can see the ISO quality system certification, CE, EAC products' international certification on model ZLP630, ZLP800 suspended scaffolds; SGS, BV, TUV and other third-party international institutions auditing and certification of our company; Customs Authorized Economic Operator (AEO) certification, which helps move your freight delivers priority customs clearance treatment, faster, more efficient shipments, as well as enhanced security.
These certificates can provide excellent performance and most importantly safety for operators and materials.
