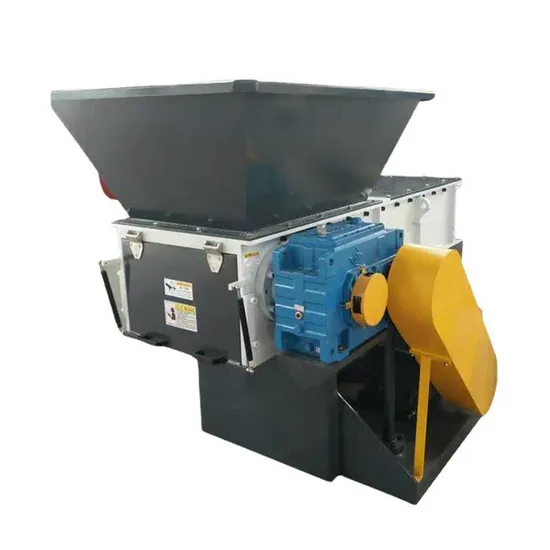

Single Double Shaft PVC Lump Plastic Recycling Machine Shredder for PT PE Scrap Waste Rubber Tire

Product Description

Brief introduction
The shredder is also known as the shredder crusher, reduces the size of the shredded material by cutting, tearing and squeezing.
How the shredder worksThe shredder uses a gear motor directly connected to the worm, directly mounted on the active shaft of the shredder. The speed of drive shaft is varied through the gear transmission, so that the main drive shaft spiral tooth plate forms a relative motion. The spiral tooth discs on the main drive shaft are staggered so that the material entered will be squeezed, torn and cut, thus broken to smaller particles.
Parts of the shredder 1. Body
The main body of the equipment is produced in the whole one, using high-quality steel plate welding to eliminate the stress, to ensure the stability of the equipment in the long heavy load.
2. Movable knife / fixed knife
The tool material is made of alloy tool steel forging blanks, precision machining through multiple heat treatment and low temperature frozen heat treatment technology, and the overall toughness hardness is consistent, can be repaired repeatedly to ensure the performance and service life. The fixed knife is mounted with hooks to optimize the tool replacement function and make tool maintenance replacement more efficient.
3. Bearings/seals
The housing is flattened and disassembled, can quickly remove movable knife, fixed knife, bearing and other components, easy to maintain and replace tools. The unique sealing structure effectively blocks the contact between broken materials and grease. Even if shredding liquid materials, the bearings and gears can also be protected.
4. Knife shaft
The knife shaft is made of high-strength heavy-duty steel material, more reasonably match with tools for cutting to provide a strong power. ApplicationThe shredding machine is used for shearing urban household waste, solid hazardous waste and industrial solid waste etc.

Shredder performance features
1. This product can shred large blocks of material, basket material, pipe, sheet, wood, tires, scrap metal barrels, large roll film which a shaft shredder is difficult to break.
2. The outer frame is of thick plate precision processing of the combination of the structure, with large angle hexagonal column of the powerful rotating shaft, large caliber solid input hopper. So you can rest to throw large-scale raw materials into the machine.
3. The rotary knife is designed and processed under consideration of the thickness, shape, order and other aspects, ensuring high strength, sharp blade with excellent work performance.
4. The machine is operated with low noise, less dust.
5. The tool blades are made by special alloy steel, durable.
Specification sheet

Model	Knife spec. (mm)	Power	Blade Qty	Transmission	Rotary speed	Overall size(m)
300 Type	Φ100*20	3kw	12	250	13-20	1.2*0.45*1.2
400 Type	Φ200*20	4kw	18	250	13-20	1.3*0.5*1.25
450 Type	Φ160*20	5.5kw	20	250	13-20	1.35*0.57*1.3
500 Type	Φ200*20	7.5kw	25	300	13-20	1.7*0.55*1.35
600 Type	Φ220*20	11kw*2	30	300*2	13-20	2.4*0.85*1.45
600D	Φ260*20	15kw*2	30	300*2	13-20	2.4*0.85*1.45
800 Type	Φ200*20	15kw*2	32	400*2	13-20	2.15*0.87*2.2
1000 Type	Φ300*25	30kw*2	32	650*2	13-20	3.4*1.25*2.2
1200 Type	Φ400*30	55kw*2	38	650*2	13-20	4.15*1.25*2.2
1500 Type	Φ400*30	75kw*2	48	750*2	13-20	4.15*1.25*2.2
2000 Type	Φ530*50	90kw*2	38	850*2	13-20	5.25*1.78*2.2

Remark
Above parameter sheet is just for your reference.
The final specification will be adjusted according to buyer's actual requirement, such as the dimension of the material to shred, the size of the particles, the capacity etc, which affect the selection of the model, the number of the shafts, motors, transmissions, knife specification and so on.
About us
JIANGSU XINMECHAN TECHNOLOGY CO., LTD is a modern enterprise, manufacturing waste recycling shredder, hydraulic press brake, CNC laser cutting machines, hydraulic shears, grooving machines, hydraulic angle notching machines and mechanical tools, blades and so on.

We have a group of knowledgeable and professional young team workers who are specialized in different subjects of mechanical industry, committed to serving for our customers. We can supply standard products as well as meet special order requirements of customers and provide an optimum plan for every user.
Service
Pre-sales services, supply customization
We provide customers with the best possible process solutions, technical advice, samples to test, model selection and other consulting service.
In-sale services, provide all aspects of technical support
We design tailor-made training programs for you, including equipment operation, product maintenance and maintenance, troubleshooting, safety operation and other aspects of training.
After-sales service perfectly and timely
We guarantee 10 hours to respond to customer demand, free maintenance during the warranty period, life-long maintenance, timely provision of spare parts, remote diagnosis, regular visits and other services.
Monument Strength
We are constantly involving in technique innovation and technical improvement to supply more advanced products for you. We had implemented the international quality system standards fully. Each process of production and delivery is in accordance with the requirements of national and industry standards as well as users need strictly. We can guarantee the products our customers received are of superior quality.
FAQ
Q1. How to get the most suitable machine and best price?
Please tell us what material you will shred, the input size, required work capacity, end granular size and other information.
Q2. If we don't know how to use the machine, can you teach us?
Yes, we will, English manual and video will come along with the machine. You also can contact our service team if you need any help during use our machines.
Q3. How about your after-sale service?
We offer you 24 hours service by mail, phone, Skype or Whatsapp etc.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control.
The complete machine will be tested to make sure they can work very well before being out of factory.
Our machines all have passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q5. How we pay you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price, shipment, payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on the proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment and 100% quality check before shipping.
F. Send your order by air or by sea.
