9 Color 180m Film Rotorgravure Printing Machine in China

Product Description

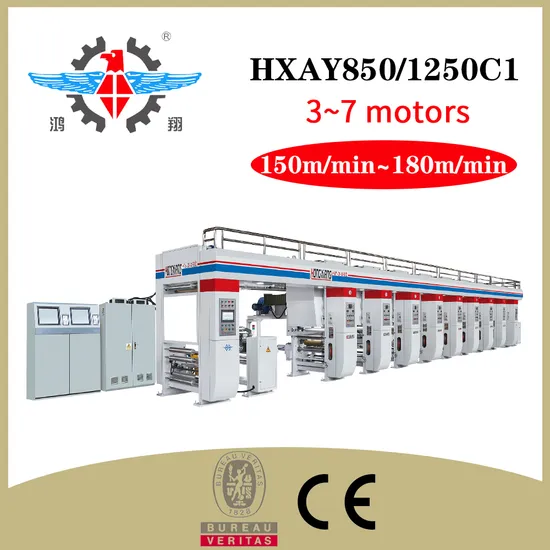

HXAY 850/1250C1 Full Automatic Multi-color Gravure Printing Machine(Seven Motor)
Product Description
This machine is suitable for BOPP,PET,CPP,PVCD and the same property composite film and paper etc.Its printing speed is 5-200m/min with the mechanical speed of 210m/min.
Features
Main Transmission
The main transmission adopts frequency conversion motor,drive each plate.
Features:Saving electricity.No Shaft Plate Mounting Mechanism
The plate mounting adopts air cylinder.It pulls the mandrel to realize plate mounting.The cross regulation adopts the screw movement.
Features:Reduce the plate changing time,ensure the concentricity, improve the product quality. Ink Scraper Mechanism
The scraper can be regulated up and down with angles at will.Its pressure adopts double air-cylinder.The cross movement is realized through three-phase asynchronous motor driving the scarper fulcrum.
Features:It extends the life of the plate.
Impressing Lifting Mechanism
The impressing adopts double air-cylinder with self-lock function.It protects the air cylinder from leakage and prevent the cylinder from falling off when machine is stop.
Features:Guarantee the average pressure and ensure the color difference.
Color Register Manipulator
It adopts the computer to control the synchronous motor and realize the regulation through the gearing-down driving the screw.Then the auto color register is finished.
Features:Flexible rotation,high color register precision.

Material collecting&Discharging Structure
It adopts double station collecting&discharging racks.It can change the roll and collect the roll automatically.The discharging tension and collecting/discharging traction tension adopts frequency vector control linear speed.Collecting adopts vector frequency control.
Features:Accelerate the color register and make it more stable.Ensure the cross printing plate will not run off tracking.It can save material for mass printing.When the feeding speed of ink,solvent and energy reaches 180m/min,the maximum waste of material is about 10 meters which saves 20 meters compared with three motor control model.The savings of ink,solvent and energy reaches about 15% and greatly reduce the cost of main products.
Drying Cooling Structure
The oven is blown and aspirated by centrifugal fan and the water cooling roller reduces film temperature.The air volume heat circulation is formed inside the oven.The temperature is controlled by an intelligent temperature controller,cooling roller adopts water cooling type to make sure the film cools down.
Features:Saving electricity.
Product Parameters

	Model	HXAY-850C1	HXAY-1250C1
	Printing Width	850m	1250m
	Printing Speed	Max.180mm	Max.180mm
	Plate Diameter	Φ100-350mm	Φ100-350mm
	Coil Diameter	Φ600mm	Φ600mm
	Plate Lateral Adjustment	30mm	30mm
	Main Control Mode	PLC Joint Control	PLC Joint Control
	Printing Accuracy	±0.08mm	±0.08mm
	Total Power	100kw	115kw
	Machine Weight	25000kg	29000kg
	Overall Dimensions	17580×2900×2700mm	17580×3200×2700mm
