Automatic Field Fixed Knot Cattle /Deer Grassland Mesh Fence Netting Machine Price

Product Description

Product Description

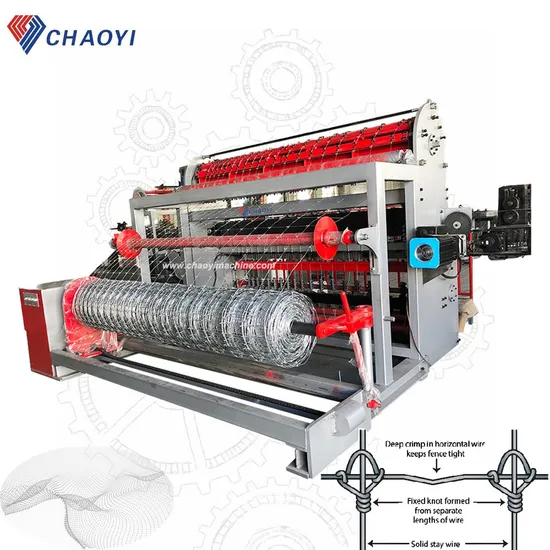

Automatic field Fixed Knot cattle /Deer Grassland Mesh Fence netting machine price

Fixed Knot field fence machine is used to weave wrap-around fence. it can weave the diameter wire and weft wire together automatically. lt is developed after many years since our company has independent intellectual property rights, self-made.lt uses sophisticated computer control, advanced production technology.With novelty, high degree of automation, operational safety and reliability,.

Model Parameters	18-2080	20-2438
Maximum Fence width	2080mm(82")	2438mm(96")
Maximum number of Line Wires	18	20
Line Wire Spacing	76mm(3")x6+100mm(4")x2+127mm(5")x2 +152mm(6")x3+178mm(7")x4	76mm(3")x6+100mm(4")x2+127mm(5")x2 +152mm(6")x3+178mm(7")x6
Line wire spacing	Min. 76mm (3''). It can be increased by a multiple of 25mm (1'')
Stay Wire Spacing	75mm.150mm.225mm.300mm.450mm
Edge Wire Size	ф2.5mm-3.0mm
Line Wire Size	$2.50mm
Stay Wire Size	ф2.5mm
Knot Wire Size	ф2.0mm,$2.2mm
Line Wire Tensile Range	850-1350N/mm2
Stay Wire Tensile Range	525-850N/mm2
Knot Wire Tensile Range	400-525N/mm2
Max Length of roll	100m/roll
No.Strokes (Stay Wires) Per Minute	25row/min
Control system	servo motor,PLC
Total Machine weight	8T	10T
Approximate Floor Area Required	10mx22m	11mx22m

Product Detail

Automatic feeding cross wire
Bening fence Part
Cylinder
Alarm sensors

Application

1 .Solid steel plate and gear boxes ensure levels of vibration are kept to a minimum in operation.
2.Precision running gear in all critical areas maintains reliability and quiet operation
3.Comprehensive level of sensing equipment in the tie feed, back frame, stay-feed and through-process sensors.
These sensors pick up faults and missing wire which allows the machine to be confidently run with minimal supervision.
4.Auto Wire-Stripping-Table releases finished rolls to the pickup zone and re-sets for windup allows for the easy removal of any type of roll.
5.Setup allows minimum line wire spacing of 3" and produces a tight strong fence highly suitable
for security,horse and pig fencing applications with the Fixed Knot, through to 48" for economy fences.
6.Replacement components available on request, with an extensive range of parts stocked and ready for direct shipment.
7.Automated Crimp Drum and Dual Stay Wire feed allows for rapid changeovers where frequent specification changes are required
8.Fixed knot fence machine specification (Special specifications can be made by your requests)
Company Profile

Factory Display

Certifications

Packaging & Shipping

FAQ
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for mchine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
