Hot Sells Handheld Fiber Laser Welding Machine with Good Quality

Product Description

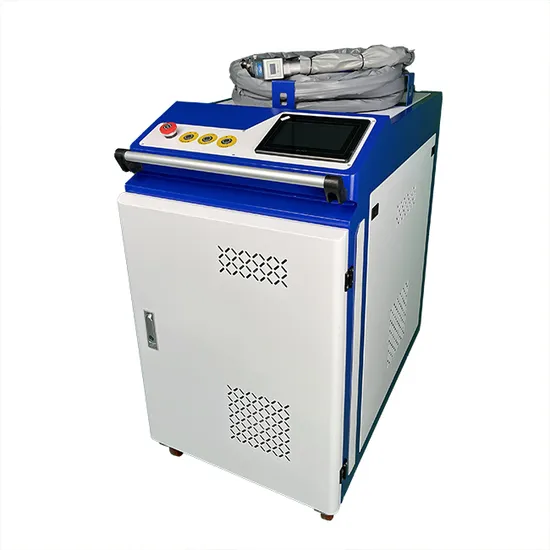

Machine pictures

Product Description
Hand-held fiber optic laser welding machine has a 10-meter-long fiber optic connection laser head, it can be long-distance welding on the product that is large and not easy to move, because the reasons for fiber transmission, laser energy is more concentrated, can be welded metal. It can do spot welding, butt welding, stack welding, sealing welding, and complete the complex plane straight line, arc and any trajectory welding. High welding efficiency, good effect, easy to operate

Detailed Photos

Product Parameters

Model	LW-1000,1500,2000,3000
Power	1000/1500/2000/3000 W
Machine type	Hand held type
Laser Power	220/380v, 50/60Hz Single /Three-phrase
Laser source brand	MAX / Raycus
Laser Welding head	SUP / QILIN / WSX automatic welding head
Laser Head weight	0.75KG
Laser Wave Length	1080nm
Laser light output type	Continuous linear model
Laser Cooling	water cooling
Laser head	Super laser wobble head
Water chiller	Hanli / S&A
Modulation frequency	1-20,000HZ
Fiber Core Diameter	50μm
Auxiliary gas	N2/Argon

Machine configuration
MAX / Raycus / GW / Reci laser source stable with low failure rate
Modular and redundant design
Small size, light weight
Easy to integrate; high power
Excellent beam quality
Low energy consumption; good stability
No gas, green and environmental protection
•Multiple security alarms, smaller size, flexible operation, easy to use
•All parameters are visible, monitor the status of the whole machine in real time, and avoid problems in advance
• Stable parameters and high repeatability
• The intelligent thermostat of the laser chiller has two temperature control modes, which are suitable for different use occasions;
• Dual temperature and dual control mode to meet the different cooling needs of the fiber laser body and lens;
• With multiple alarm protection functions: compressor delay protection; compressor over-current protection and so on.


Packaging & Shipping

Company Profile
Farin CNC Machine is a integrating stock group company in researching and developing, manufacturing and trading at Metal processing industry.
Our products including CNC metal drilling and milling machine, Angle steel making machine, fiber laser cutting machine, ultra-high power10,000-watt laser cutting machine, plate and tube integrated laser cutting machine, automatic loading and unloading laser cutting machine, hand-held laser welding machine and other equipment. They are mainly used for processing angle steel, metal plates, H-beam, channel steel, box steel, round steel, flange plates and so on in power towers, transmission tower, telecommunications tower, steel structures, central air-conditioners.automobiles, household appliances, petrochemicals and construction industry.
With the developing of the brand efficiency in the international market. Farin CNC Machine increase the investment constantly into the R&D department, in ensuring the stably of the existing products, we constantly absorb quintessence experience of the industry, so that ensure our technology always in the advanced position. Meanwhile, Farin CNC Machine constantly strengthen internal management, so as to realize much more benefit and make great development from the advanced manage method.
Therefore, our products has been exported to more than 100 countries and districts, such as Southeast Asia, North America, South America Africa and Middle East. And get high appreciated from all over the world.With our management idea "let's offer the excellent serves for you!", we created a newly development road and edged into famous brand of the world!
Sincerely hope to grow up hand in hand and have good future altogether.

After Sales Service
1. Pre-sale services
Before signing a contract, our company provides customers a variety of production technology proposal, technical advice of laser equipment, sample specimens, equipment selection, and price etc. all aspect of consulting and services. We sincerely welcome customers to visit our company and factory, and we provide customers reception staff, food, transportation and other facilities.
2. Sale of services
Based on the contract, we delivery laser machine to customers place safely within the specified time. We provide online technical training. The training as follows:
Ø Training operating instruction of turning on and off machine; Ø Meaning of panel and control parameters, Ø Training parameter selection range; Ø Training control software operation ; Ø Basic maintenance and cleaning of the machine; Ø Dealing with common hardware problem; Ø Noted question in operating ; Ø In addition to, we also provide users technical support related their producing products. 3. After-sale services
1. One years warranty of machine. Fiber optic cables and QBH interface are not warranted, as long as the fiber optic cable is not intentionally twisted, it can be used always. In the warranty period, if it breaks down or some parts damaged (Except the human factors and the factors of force majeure), the seller should be responsible for repair for free, the parts need to be replaced will be provided from seller for free (Except the quick-wear part).
2. Customer service will be feedback within 12 hour.
3. We provide machine lifetime maintenance services though warranty expires.
4. Offered a wide range of hardware and software support after the warranty expires, enjoy free upgrades
