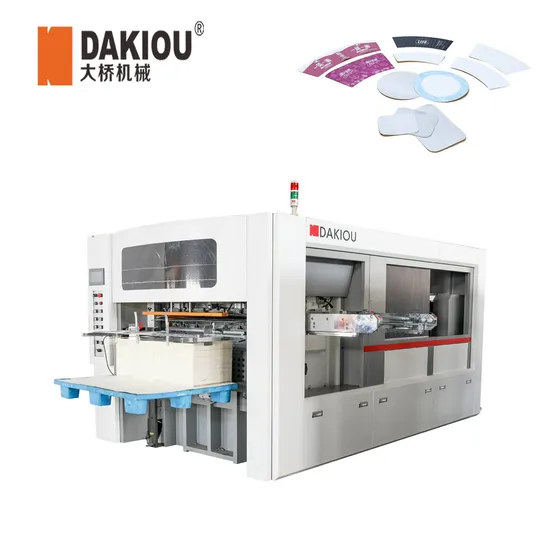

Dakiou Fast High Speed Full Automatic Popular Paper Cup Fan Card Roll Die Cutting Machine

Product Description

Type:	PY-950	PY-1200	PY-1300
Cut Precision:	± 0.10mm
Production capacity:	150-210times/min
Paper Convey Width:	250-950mm	250-1200mm	250-1300mm
Suitable Material:	120-600g/m2 coated paper, white cardboard
Total Power:	14.5KW
Total Weight:	7200kgs	8200kgs	9200kgs
Maximum cutting size:	950 x540mm	1200*640mm	1300*750mm
Maximum Pressure:	350T
Overall Dimension:	4200 x 2100 x 1850 mm	4200 x 2200 x 1850 mm	4200 x 2300 x 1850 mm

Main feature:
1.The working speed is 150-210times per minute,the level of the capacity in China is 120times per minute. It has the ability to die-cutting, creasing and embossing for various shapes.
2. Paper conveyed by servo motor to ensures steady and accurate conveying. photoelectricity sensor checks the color code of printing to ensure fix the paper position accurately.
3. Electric control system uses PLC and HMI. Equipped with safety refinements to make acoustic - optical alarming and auto stop when some faults.
4. Worm wheel and worm transmission system ensures the powerful and steady pressure;It is very convenient and accurate to adjust pressure through HMI.
5.Lubricating with oil circulation and alarming when lack of oil to ensure smooth running and prolong the machine life.
6. The die-cutting frame uses pneumatic locking system to convenient operation. Die-cutting down steel board from Taiwan is accurate and lasts forever.
7.It adapts electric control pneumatic clutch to protect the machine when start and emergency stop..The flywheel provides a mounting location to the clutch and also can increase the pressure.
Advantage and improvement:

1.Machine Host. New design: Worm and Worm wheel together with crankshaft same as the sheet die-cutting machine. The previous design: off-center shaft.
2.Pressure Adjusted. New design: The pressure is automatic adjusted through the motor to control the four feet by HMI.And the pressure can be shown in the HMI.It is very convenient and accurate. The previous design: manual adjusted through gear wheel or the screw.
3.Oil circuit. New design: The outside oil circuit adds a filter to clear the oil and a flow switch to monitor lacking oil. The previous oil circuit is crude and confused.(the first machinery equips with alarming of oil lacked)
4.Positioning block in movable platform we add one more positioning block in movable platform. It makes the pressure of the platform more stable, and endurable.
5.The main driving parts in host is protected by the lubrication system. If the data shows problem, the machine will stop and alarming. Then you must check the driving parts
6.Air cylinder paper pressure system. In front of the paper feeding platform, we add the air cylinder paper pressure system to ensure the paper convey more smoothly and quickly. We are the first one and the only one machinery who adds this system
7.PLC program:The new design: We make two PLC program to fit for the different quality of printing. Be more functional and accurate
8.Paper feeding balance regulator add new type paper feeding balance regulator to adjust he minor unbalance situation.
9.Paper damper. In order to avoid the paper shaking, we add one more damper to make the paper tractable. The paper leech on the damper when machine is running. So we can feed paper more stable and faster
10.Roll Paper Loading: The new design: the hydraulic cylinder pushes downward, so it is stronger than the previous design.
11.Paper blocked alarm system. The new design adds the alarm system to make the machine stop when paper feeding blocked.

FAQ:
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins,from Guangzhou is about 1hr 50mins and from Hongkong is about 2hrs.We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes, color, logo, package and so on.
3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit.
4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by FCL(full container loading) we might use the wooden pallet with plastic film wrapping, without plywood case.
