Secondhand Cat 320d2l Crawler Excavator Caterpillar 320/325/330 Excavator 20tons Diggers

Secondhand Cat 320d2l Crawler Excavator Caterpillar 320/325/330 Excavator 20tons Diggers

US$26,399.00
1-2 Pieces
US$25,399.00
3+ Pieces

Basic Info.

Model NO.
CAT 320D2L
Usage
Mining Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Size
Medium-Sized
Certification
ISO9001: 2000
Condition
Used
Model
320d2l
Work Condition
Used/Very Good
Previous Owner
Road Construction
Undercarriage
90%+
Price
26399
A/C
with
Leakage
No
Camera
with
Transport Package
Bulk Package
Specification
20tons
Trademark
CAT
Origin
Japan
HS Code
8429521200
Production Capacity
20 Unit/ Year

Product Description

Product Description

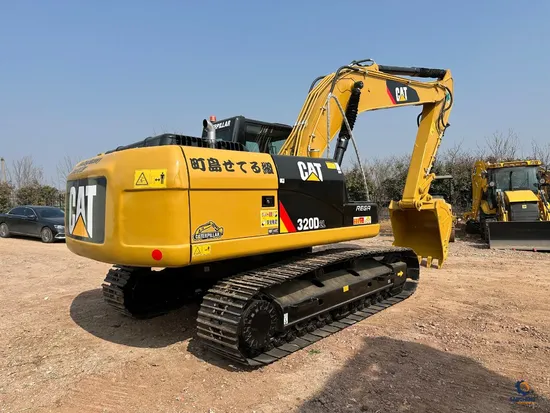

Used Caterpillar 320D2L Excavator For Sale
Brand: Caterpillar
Model: 320D2L
Origin: Japan
Condition: Used/ Very good
A/C:With
Leakage:NO
Hydraulic system powerful and smooth
High working efficience
Well maintained and serviced

Product Parameters
Dimensions Operational
Shipping Length Of Unit 9460mm Operating Weight 20330kg
Width To Outside Of Tracks 3017.52mm Fuel Capacity 410L
Height To Top Of Cab 2950mm Cooling System Fluid Capacity 25L
Undercarriage Hydraulic System Fluid Capacity 260L
Track Gauge 2200mm Engine Oil Capacity 30L
Shoe Size 600mm Operating Voltage 24V
Max Travel Speed 5.7km/h Swing Drive Fluid Capacity 8L
Drawbar Pull 205kN Alternator Supplied Amperage 50amps
Engine Hydraulic System Relief Valve Pressure 35000kPa
Engine Model C7.4 ACERT Hydraulic Pump Flow Capacity 205L/min
Net Power 110kw Buckets
Power Measured 1800rpm Reference Bucket Capacity 1m³
Displacement 6.4L Minimum Bucket Capacity 0.5m³
Bore 102.2mm Maximum Bucket Capacity 1.2m³
Stroke 130.1mm Hydraulic System
Net Flywheel Power 110.4kw Pilot System - Maximum Flow 9 gal/min
Swing Mechanism Pilot System - Maximum Pressure 566 psi
Swing Torque 61841.6Nm Maximum Pressure - Travel 5076 psi
Swing Speed 11.5rpm Maximum Pressure - Swing 3553 psi
Operating Specifications Maximum Pressure - Heavy Lift 5076 psi
Maximum Bucket Capacity 2m³ Standards
Maximum Cutting Height 0.9m Brakes SAE J1026 APR90
Maximum Loading Height 6940.1mm Cab/Fogs SAE J1356 FEB88
Minimum Loading Height 1230.2mm Track
Maximum Vertical Wall Digging Depth 6970.1mm Standard With Long Undercarriage 700.1mm
Service Refill Capacities Ground Clearance - Fixed Gauge 17.72 in
Cooling System 25L Standard With Standard Undercarriage 600mm
Final Drive - Each 8L Drive
Hydraulic Tank 121.2L Maximum Travel Speed 5.7km/h
Hydraulic System - Including Tank 261.2L Maximum Drawbar Pull 20904.2kg
Engine Oil 30.3L Weights
Fuel Tank Capacity 408.9L Operating Weight 20330.1kg
Swing Drive 8L Operating Weight - Long Undercarriage 21570.2kg
Hydraulic Tank - Including Suction Pipe 136.3L Operating Weight - Standard Undercarriage 20330.1kg
Sound Performance Base Machine With Counterweight And 800 Mm Shoes 17470kg
Performance ANSI/SAE J1166 APR 90

Detailed Photos
Packaging & Shipping
Container: The cheapest and fastest one.Flat rack: Often used to ship two-wheel loader, max load-bearing is 35 tons.Bulk cargo ship: Better for bigger construction equipment.
Our Advantages
Our company do win-win business with good exporting business reputation which provide used/second hand construction machinery, for instance used wheel loaders,used excavators, used motor graders , used bulldozers ,road rollers ,dump trucks ,cranes ,forklifts ,tractor trucks ,and pump trucks.The above is the hot sale line for global market with the following advantages.
1>Original parts and good working condition;
2>Low working hours and well-test service for machinery;
3>Strong engine power;
4>Complete accessory and no oil leaking;
5>Competitive price , price is negotiable to some degree;
6>Good After-sales Service!
After Sales Service
1> maintainence and usage instruction
2> free spare parts
3> long time technical support on line
If you have any questions, please don't hesitate to send me your inquiry and I will solve all the problems for you! FAQ
1.How can we guarantee quality and does the machines are original? Yes ,all the machines are original ,and our engineers team will always do Inspection before shipment;2. What can you buy from us?Used Excavator,Used crane,Used Grader,Used Loader,
Used Bulldozer,
Used Roller,Used dump trucks,Used Forklift.3.What services can we provide?we can have meeting on-line video call to check these machines details and performance if necessary, you can visit our factory.and we can provide all the details and vedios to present the machines to you.
4. Is it convenient to visit your factory? How to go there?
Welcome to visit our factory. It locates in Hefei City, Anhui Province, China. By taking high-speed railway or plane are both ok. We will pick you up anytime you arrive!
5. How can we make a deal done?Inspecting the machine-->if satisfied-->30% Down payment For Booking Shipping -->40% Deposit Before Loading -->30% Balance Pay Against The Copy Of BL
6.How long will it deliver to your country?The estimation days for deliver to your country is around 15 - 45 days
