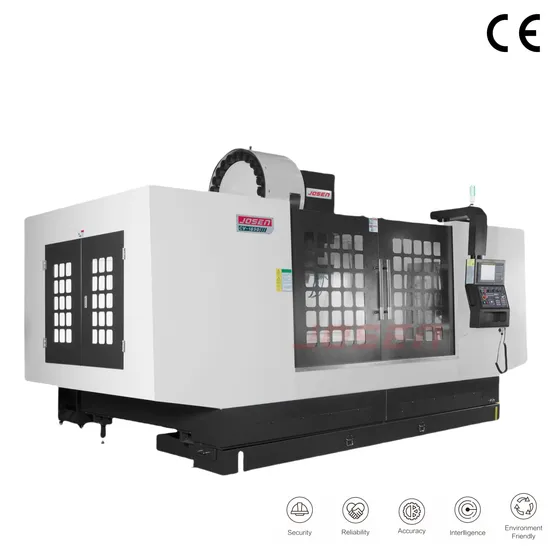

VMC1890 Advanced Technology Cost-Effective 3 Axis Metal CNC Machine Milling Cutting CNC Machine Tool Vertical Machining Center
Product Description
Basic Info
Number Name Number Name

1	FANUC 0I - MF CNC Controller (Japan)	10	Chip tray and water tank
2	Full - cover shield	11	Transformer
3	Automatic lubrication system	12	Spindle air - curtain dust - proof system
4	Anchor bolts and pads	13	Mechanical, electrical, and operation manuals
5	Toolbox	14	Rigid tapping
6	Work lamp	15	Electrical cabinet heat - cycle system
7	Warning light	16	Machine - cleaning water gun
8	M30 automatic power - off system	17	Three - axis guide - rail telescopic shield
9	Hand - held air - blowing gun for chip removal	18	24 - arm - type tool magazine

Product Specification
Description/Machine Model Unit CV - 1890

Travel
X - axis travel	mm	1800
Y - axis travel	mm	900
Z - axis travel	mm	800
Distance from spindle nose to worktable surface	mm	200 - 1000
Worktable
Worktable size (X * Y)	mm	2000 * 900
T - slot size (width * number of slots * distance)	mm	22 * 5 * 160
Maximum worktable load capacity	kg	2500
Spindle
Spindle motor power (continuous / 30 minutes)	kW	15 / 18.5
Spindle speed	r/min	10 - 8000
Spindle inner taper		BT50
Axes
X - axis motor power	kW	βis40 / 2000 (3.0 kW)
Y - axis motor power	kW	βis40 / 2000 (3.0 kW)
Z - axis motor power	kW	βis40B / 2000 (3.0 kW)
X - axis screw rod / ball screw		055 * C3 grade / MSR55E - 2Z - C3 ball screw /
Y - axis screw rod / ball screw		055 * C3 grade / MSR55LE - 4Z - C3 ball screw /
Z - axis screw rod / ball screw		055 * C3 grade / MSR55LE - 2Z - C3 ball screw /
Feed rate
Rapid feed rate (X / Y / Z)	m/min	20000 / 20000 / 20000
Maximum cutting feed rate	m/min	1 - 10000
Tool change system (optional)		set
Tool magazine capacity (standard / optional)		24 / 30
Tool magazine type		Arm - type
Tool clamping form		MAS - P50 - 1 (45°)
Maximum diameter of adjacent tool	mm	0110
Maximum diameter of empty - space tool	mm	0200
Maximum tool length	mm	350
Maximum tool weight	kg	15
Machine precision
Three - axis laser positioning accuracy (VDI3441 statistical method) Environmental requirements: Temperature change of machine environment within 12 hours before detection shall not exceed 4 °C, and temperature change during detection shall not exceed 2 °C
Positioning accuracy (full stroke)	mm	0.020
Repeat positioning accuracy (full stroke)	mm	0.010
System
Controller		FANUC 01 - MF
Pneumatic system
Water tank capacity	liter	350
Air pressure demand	kg/cm²	6
Electricity
Power specification		AC380 ± 10%, 3 - phase, 60Hz / 50Hz
Power demand	KVA	50
Others
Floor space (length * width)	mm	6000 * 5150 (including foot - plate pressure station)
Machine height (maximum)	mm	3465
Machine weight	T	16

Machine Features
1. This machine bed, column, spindle box and other key parts are used Meehanna (dense baking) castings, stable organization, permanent quality. The castings are analyzed by finite element analysis, reasonable structural strength and reinforcement of the matching, to provide high rigidity of the machine. The casting structure adopts one-piece molding technology, box structure, processing of large-scale pentahedral machining machine, a clamping processing is completed, the machine tool has a high rigidity, high strength, excellent geometric precision. And can ensure the long-term stability and high precision of the machine tool. In order to prevent deformation after machining, the castings are thoroughly annealed, which is favorable to eliminate internal stress.
2. Wide base, triangular box structure column, heavy load full support design, solid structure, can ensure the heavy load capacity during machining.
3. The symmetrical design of left and right, the weight balance of both sides of the column, can maintain the stability of machine accuracy. 4.
4. The spindle box is reinforced with ribs, and the contact length between the spindle box and column is appropriate to provide stable support for the spindle.
5. X/Y/Z axis adopts linear guideway with high rigidity, low noise and low friction characteristics, which can do fast displacement and obtain the best rounding accuracy. 6.
6. Rapid displacement X/Y/Z: 20/20/20m/min.
7. 3-axis servo motor adopts absolute value detection, no need to do home return every time when machining, which can improve the efficiency, and because there is no limit switch, it can reduce the failure rate and increase the reliability of the machine.
8. 3-axis servo motor and screw are directly connected by precision coupling, which can eliminate the connection gap and improve the transmission efficiency.
9. The cutting fluid capacity is up to 350L, which can quickly discharge the cutting heat. The water tank design adopts the double tank type and is placed on the inside of the machine to save space. 10.
10. the spindle adopts precision grade angled ball bearing high speed and high precision, the standard speed up to 8000rpm. the standard machine tool adopts high-horsepower spindle motor, with a higher torque output, you can choose high torque motor. 11. the front end of the spindle adopts labyrinth, which can quickly remove the cutting heat.
11. The front end of spindle adopts labyrinth design, and with air curtain protection function, which effectively prevents cutting fluid from entering into the spindle and damaging the spindle bearings. 12.
12. The electrical box adopts side-mounted design to save space and maximize the use of limited space.
Our Advantages
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
