Highway Guardrail Machine/Thrie-Beam Crash Barrier Roll Forming Machine Galvanized Steel Guardrail Forming Machine Factory Price

Product Description

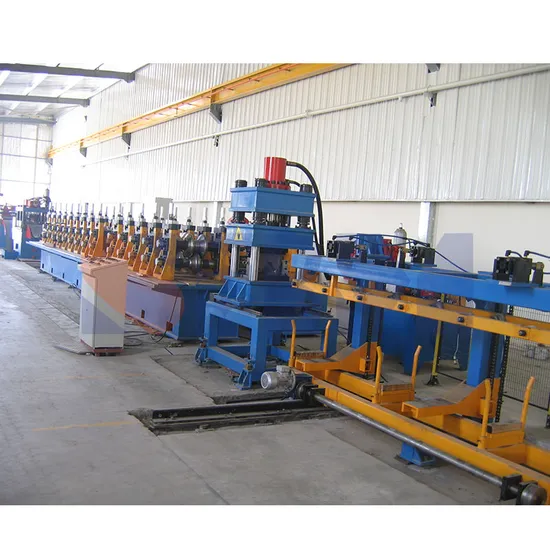

Guardrail Machine/Thrie-Beam Crash Barrier Roll Forming Machine
Product Description
This machine used for punching, forming and cutting of the highway guardrail corrugated plate, which widely used in bridge, highway construction, Power Culvert , highway culvert , infrastructure construction etc. Product Parameters
MAIN PARAMETERS

Material	Cold rolled mild steel
Raw material yield strength	235~355Mpa
Tensile strength of raw materials	420~550Mpa
Coils OD	≤Ф1600 mm
Coils ID	Ф508mm
Strips width	≤750mm
Strips thickness	2.3~3mm
Coils weight	≤10000 kg
Line speed	4 pcs/min(Length4320mm)

MAIN CONFIGURATION OF COMPONENTS

PLC	Mitsubishi, Japan
Servo system	Yaskawa , Japan
Transducer	Delta (Taiwan)
Touch Screen	WEINVIEW(Taiwan)
DC speed controller	Eurotherm (USA)
Encoder	Omron

Product Detail

WORKING PROCESS Uncoiling----- servo leveling feeding----looper(storage) ----400T multi-punching -----conveying roller -----roll forming---cutting ---finished material discharging

1.We adopts individual archway stands for rollers station, more strong and rigidity structure than other suppliers in china.
2.Individual gearbox for each archway rollers set, to assure the precision of the profile.
3.All of the machine main body and parts are quenched, with higher hardness(HRC58-62) and wear resistance, while other suppliers only rough steel welded.
4.The rollers material is American D2 and D3 standards, with long service life and low maintenance cost.
5.Professional Germany roller design software-Copra.
6.Our price is most reasonable based on the top quality in this field.
7.Long machine life, all of our machines can be used stable performance for more than 10-15 year, while other small and low
quality supplier's machine only can be used for 1-2 years.
Sample Display
WORKPIECE PICTURE

APPLICATION
Packaging & Shipping
We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by air or by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition.
We support online maintenance and offline engineer guidance at the factory.

Company Profile
Our workshop started since the year of 2008, built by a group of engineers, one of our founder member Mr. XU, who was worked as leader engineer for first-class roll forming department in SINOMRCH(China National Machinery Industry Corporation). After years of development, we have exported to many countries in the world such as Italy, Ecuador, America, India, Indonesia, Philipines, Brazil, Thailand, Vietnam, Russia, Malaysia, Peru, Korea etc., in order to service our clients overseas, we cooperate the local service agent to provide the after sale service; after more than ten years of running, we build the nice relationship with our clients and the local agent, those help us gain high reputation from our customers and the agents.

ENTERPRISE CERTIFICATE
INTERNATIONAL EXHIBITIONS
CUSTOMER VISITS
FAQ
♥1.How to operate the machine ?
We will deliver English manual and video with the machine to you. lf you still need our help,please contact us.
♥2.If some problems happen to this machine during warranty period, what should I do?
We will supply free charge of spare parts and regularly maintenance service during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.
♥3.Does the machine can be customized according to my requirements ?
Yes, we have a strong technical team and have rich experience.
♥4. What about the package and shipment ?
The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.
