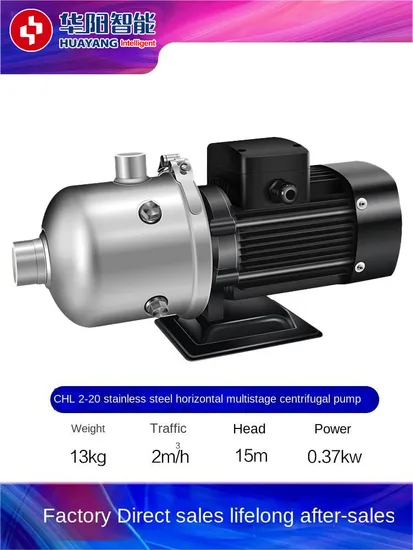

Chl2-20 Good Performance Horizontal Stainless Steel Centrifugal Multi-Stage Water Pump

Product Description

Horizontal Multi Stage Pumps
It have compact design, low-noise and long service life. They are easy to install and operate. Energy efficient Horizontal Multistage Pump design with stainless steel stamped-welded impeller and diffusers.
Our Horizontal Multi Stage Centrifugal Pump is reliable and service-friendly, space-saving, suitable for slightly aggressive liquids and is energy efficient.
Close coupled Horizontal Multistage Pump with stainless steel parts which be driven by a standard TEFC moto, pump has axial inlet and radial outlet.
Standard supply for liquid temperature up to 70ºC, high temperature pumps are available on request.Mechanical seal is Tungsten Carbide/Graphite, other material is available on request Pumps are available in SS 304
Products Name: CHL Stainless Steel Horizontal Multistage Sectional Type Centrifugal Pump
Conditions of use: Suitable for conveying the temperature under 120 celsius clean water and similar to that of liquid water, pump system working pressure of up to 5 bar.
The scope of performance parameter: This series a total of 26 species, 348 kinds of specifications and its
performance parameters range:
1 flow Q= 2~20m3/h
2. Lift H= 10 ~ 50 m
3. Speed n=2980 r/min
4. Power P= 0.37~ 4.4kW

fault phenomenon	failure cause	elimination methods
The manual is normal Automatic transmission failure	1.No power supply or one or two phase power supply is needed	Check all phases of power supply and restore power supply
	Water level is too low	Put water in the sink
	The motor burned	Repair or replace the motor
	1.Line is loose	Check wiring and tighten connectors
	2.Frequency converter malfunction	Check the fault content, check the cause according to the frequency converter manual, and restart after reset.Or disconnect the inverter power supply for a few seconds, the inverter fault reset before starting.
