CCS, BV, ABS, Dnv-Gl, Ec, Rmrs, Med Approved Solas Standard 16-90 Persons Free Fall Lifeboat

Product Description

Company Profile As a professional manufacturer and supplier of marine life boat, rescue boat from China, Chongqing Gohi Marine Equipment Co., Ltd. has more than 5000 square meters workshop for the production lines. And our life boat, rescue boat are approved by IACS members such as ABS, DNV-GL, BV, RINA, CCS, RMRS, KR, NK etc and in accordance with SOLAS regulations completely. There are free fall life boat and enclosed life boat available, the capacity is from 10 passenger to 150 passengers. We provide gravity luffing arm type davit, free fall launching appliance davit, platform davit for oil platform etc for the life boats..Our rescue boat are driven by outboard board petrol engine or inboard diesel engine with the speed from 8knots to 35 knots. The outboard engines are Mercury which is approved by class. The inboard diesel engine are Yanmar or BUKH which is with water jet pump.
Product Description SOLAS 10-90 Persons Freefall Lifeboat is made compliance with the SOLAS Standard, MSC272(85),MSC274(85).
The cover hull of the lifeboat is made of FRP, between the outside hull and inside is filled with polyurethane foam which will supply buoyancy for the lifeboat, which will help SOLAS free fall lifeboat afloat when it broken during the accident.
Freefall type Lifeboat has strengthened configuration to bear the strong impact when falls into the water and can escape from the vessel or offshore platform quickly. It is especially suitable for the dangerous places such as oil drilling platforms, Tanker ships etc.
Marine Free Fall Lifeboat is a model that aboard from the stern port designed and manufactured in accordance with the latest specification of SOLAS and international standards.It can falls into the water through the free fall slide way and keep the passenger in the boat, to ensure quick and safe evacuation.
Freefall Lifeboats are lowered depending on itself weight, and recovering the lifeboat and rescue boats using electric boat winches. Freefall Type Lifeboat is suitable in worse ocean conditions, for example the ocean ships.It is highly Fire-Resistant and can self-righting by itself when capsized.
Freefall Marine Lifeboat is designed and manufactured according to SOLAS amendments and New regulations, International Life-saving appliance code(LSA)&Resolution MSC.218(82) and IMO Resolution MSC.272(85) etc. The Lifeboats are approved by CCS,BV,EC,MED, ABS,RMRS, DNV-GL etc classification society. And widely used on Offshore Platform and different kinds of Vessels.
Product Parameters

Type	Size	Capacity	Height	Speed	Weight	Full Weight
GHB49FC/FF	4.9*2.18*0.7m	10-16P	3.0m	≥6	2580/2870kg	3900/4190kg
GHB52FC/FF	5.2*2.35*3.07m	16~20P	3.07m	≥6	2780/3120kg	4100/4440kg
GHB59FC/FF	5.9*2.36*3.1m	21-26P	3.1m	≥6	2774/3120kg	4919/5265kg
GHB60FC/FF	6.0*2.32*0.86m	20P	3.1m	≥6	3000/3300kg	4650/4950kg
GHB66FC/FF	6.6*2.75*3.1m	26-30P	3.1m	≥6	3520/3860kg	5995/6335kg
GHB675FC/FF	6.75*2.75*0.76m	31-32P	3.1m	≥6	3530/3840kg	6170/6480kg
GHB75FC/FF	7.5*2.75*3.2m	33-36P	3.2m	≥6	4140/4480kg	7110/7450kg
GHB85FC/FF	8.5*2.95*3.2m	37-50P	3.2m	≥6	4560/4900kg	8685/9025kg
GHB109FC/FF	10.9*2.95*3.30m	51-67P	3.30m	≥6	6508/6919kg	12036/12446kg
GHB145FC	14.5*3.25*3.4m	68-90P	3.4m	≥6	9135kg	16560kg
Note: FC: CARGO VERSION FF: TANKER VERSION

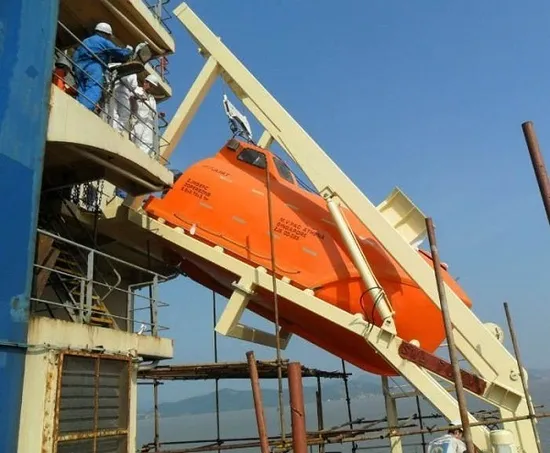

Detailed Photos
Product Feature
1. SOLAS free fall lifeboat is made in accordance with the latest specification of SOLAS and International standards
2. Have Enough working space in steering cabin inside of the Freefall Marine lifeboat
3. World-wide after sale services
4. Authorization for maintenance and Inspection servicing global.
5. Cargo version and Tanker version Freefall Type Lifeboat for your choice.
6. Free release system make the operation more easy.
7. Self-righting function make the Freefall Type Lifeboat afloat and turn over in any angle.
8. Get approval from BV,CCS,RS,ABS and EC.SOLAS free fall lifeboat is widely used on Different kinds of ships.
