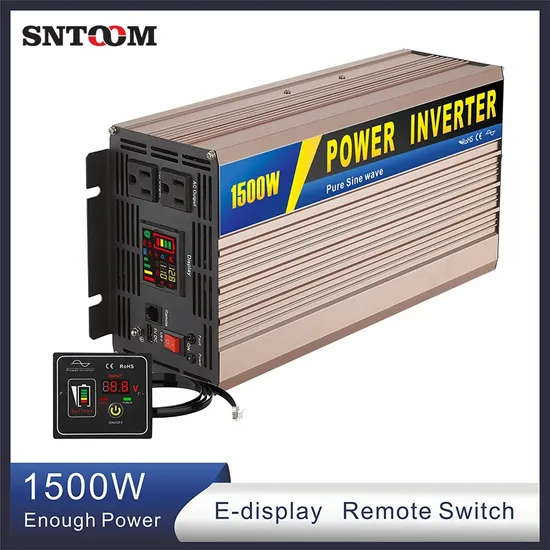

Intelligent E-Display UPS EU Us Plug Pure Sine Wave Power Inverter 1500W for Home/Camping/Car/Truck Solar Inverter

Product Description

Use occasion
1.Power failure emergency.
2.Office Supplies.
3.Convenience Store.
4.PICNIC CAMPING.
5.Night market stall
6.Security monitoring

Protection
1.Battery Low Voltage
2.Over Voltage
3.Over Load
4.Over Temperature
5.Stort Circuit
6.Reverse Polarity

Model	2500A-121	2500A-122	2500A-241	2500A-242	2500A-481	2500A-482
Rated Power	2500W
Surge Power	5000W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5V 1A
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD<3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	0.6A		0.3A		0.1A
DC Voltage Range	10-15.5V		20-31V		40-61V
Low voltage Alam	10.5±0.5V		21±0.5V		42±1V
Low voltage Shut Down	10±0.5V		20±0.4V		40±1V
Low Voltage Recovery	13±0.5V		24±0.5V		48±1V
Over Voltage Shut Down	15.5±-0.5V		31±0.5V		61±1V
Over Voltage Recovery	14.8±0.5V		29V±0.5V		59V±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage,Over Load, Over Temperature, Short Circuit,Reverse Polarity
Working Temperature	-10ºC±50ºC
Net Dimension	51.5*23.3*17.5cm(LxWxH)
Meas/Ctn	51.5*23.3*17.5cm/4pcs
N.W./Unit	4.76kg(5.7kg with inner box)
G.W/Ctn	22.52KGS
Packing	Colour Box
Warranty	2Years

PRODUCTS ALLICATION TABLE:

PRODUCTS	MODIFIED SINE WAVE			PURE SINE WAVE
Power	300W	5000W	1000W	300W	500W	1000W	2000W	3000W	4000W	5000W	6000W
PC	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Sounder	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Bulb 100W	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
LED Light 15W	×	×	×	×	×	×	✓	✓	✓	✓	✓
Fan 60W	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
TV 200W	There will be interference signal when it runs the TV			✓	✓	✓	✓	✓	✓	✓	✓
Computer 200W	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Electric cooker 800W	×	×	✓	✓	✓	✓	✓	✓	✓	✓	✓
Induction cooker 2500W	×	×	×	×	×	×	×	✓	✓	✓	✓
Electric kettle	×	×	×	×	×	×	✓	✓	✓	✓	✓
Fridge 2000w	×	×	×	×	×	×	×	×	✓	✓	✓
Electric driler	×	×	×	×	×	×	×	×	✓	✓	✓
Air conditioner 1P	×	×	×	×	×	×	×	×	×	✓	✓
Air conditioner 1.5P	×	×	×	×	×	×	×	×	×	×	✓
Air conditioner 2P	×	×	×	×	×	×	×	×	×	×	✓
Ice cream machine 2000W	×	×	×	×	×	×	×	×	×	×	✓

OEM Services 1. Logo
Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
2. Label
Please offer us your own model numbers.
3. Manual
Please offer us the finished manual file that can be printed directly.
Lead Time
1.Sample orders will be delivered from our factory within 3-5 working days.
2.General orders will be delivered from our factory within 7-15 working days.
3.Large orders will be delivered from our factory within 45 working days at most.
Shipment
1.By EMS,DHL,FedEx,TNT,UPS or other Express.
2.By our forwarding agent(by Air or by Sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
