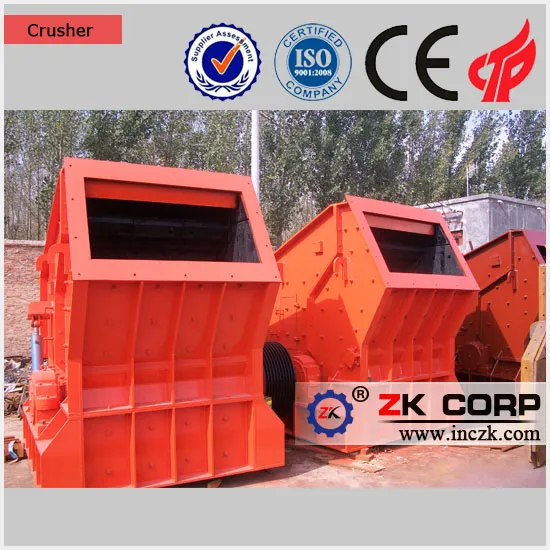

New Type Rock Impact Crusher/Impact Crushing Machine

New Type Rock Impact Crusher/Impact Crushing Machine

US$17,000.00-86,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PF Impact Crusher
Drive
Hydraulic
Crushing Style
Impact
Compressive Strength (For Crushing)
No More Than 350 Map
Crushing Degree
Intermediate Crusher
Finished Surface
Cut Off Tool
Certification
CE, ISO
Condition
New
Color
Multi-Color
Inlet Size
400X730-830X2050(mm)
Max Feed Size
300-950(mm)
Used for
Stone Crushing,Ore Dressing
Transport Package
Packing in Standard Containers or Meet Your Demand
Specification
ISO9001, ISO14000, CE
Trademark
zhengkuang
Origin
Henan, China (Mainland)
Production Capacity
15-550t/H

Product Description

Production introduction
The Impact Crusher is used for primary, secondary and fine crushing of all kinds of stones and rocks with compressive strength less than 350 MPa such as granite, marble, and limestone. The Impact Crusher is widely used for sand and rock production in the industry of roads, railways, reservoir, electricity power, building materials and so on.
Working Principle of impact crusher
When the crusher works, the motor drives the rotor to rotate with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won't stop till the material are crushed to the required size and then discharged from outlet.
Application:
Impact crusher spares often widely used in the secondary crushing and fine crushing. It is very suitable for open-pit crushing in quarries and it has wide materials applications. It can be used to crush feldspar, coal, quartz, calcite cement and other ore-bearing stones, etc. Nowadays, PFW Series impact crushers produced by ZK crop are widely used in the lacquer, cosmetics, building, paper, pigment industries, plastic and toothpaste, etc.
Features and Advantages:
1.Large feeding port and high crushing cavity, suitable to crushing the material with high hardness and big grain size, and less powder.
2.The gap between impact plate and hammer plate is adjustable, so the discharging grain size can be effective control and the grain shape is well.
3.The hammer, impact plate and lining plate are made of new type abrasion-proof material with long working life and impact protection, wear protection.
4.Because of the function of three-stage crushing and plastic, so the crushing ratio is high, and the product shape is cube and can optional crushing.
5.The multi-function hydraulic station has many function of hydraulic discharge gap with high speed, impact plate stable vibration and the body open automatically.
Impact crusher structures: Impact crusher is mainly compose of the rack, driving system, rotor, hammer and impact plate etc. The main feature including:
1.Rack: It composed by two parts of upper and lower with connection by bolt. All the parts contact the crushed material in the rack have set replaceable lining plate.
2.Driving System: The main shaft and rotor are driving by motor through belt then doing the high speed rotary motion.
3.Rotor: It adopts entire cast steel structure with high mass force, solid and durable, convenient to install the hammer.
4.Impact Plate: It is made from new type abrasion material and hanging freely inside the equipment. One end connect with the two sides of the rack through hanging shaft hinge, another end is bearing in the upper rack cone gasket through stay bolt which is adopt a sphere gasket, it can prevent the equipment damage by non-crushing material when crushing material.
5.Hammer: It is made from new type abrasion material and fixed on the rotor through wedge block
Technology Specifications:
Model
Specification
Inlet size
(mm)
Max feeding size
(mm)
Capacity
(t/h)
Power
(kW)
Boundary size
(mm)
Weight
(t)


PF-0807
φ850×700
400×730
300
15~30
30~45
2210×1490×2670
8.1

PF-1007
φ1000×700
400×730
300
30~50
37~55
2400×1558×2670
9.5

PF-1010
φ1000×1050
400×1080
350
50~80
55~75
2400×2250×2820
12.2

PF-1210
φ1250×1050
400×1080
350
70~120
110~132
2690×2338×2890
14.9

PF-1214
φ1250×1400
400×1430
350
130~180
132~160
2690×2688×2890
18.6

PF-1310
φ1300×1050
490×1170
400
80~140
110~160
2780×2478×2855
16.2

PF-1315
φ1320×1500
860×1520
500
160~250
180~260
3096×3273×3067
19.3

PF-1415
φ1450×1500
1145×1520
950
220~450
220~315
3745×3022×3519
27.0

PF-1520
φ1520×2000
830×2050
700
300~550
315~440
3581×3560×3865
36.5



Our service:
Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment,
according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory?level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with
you. We will provide you with the most suitable products with the reasonable price.
