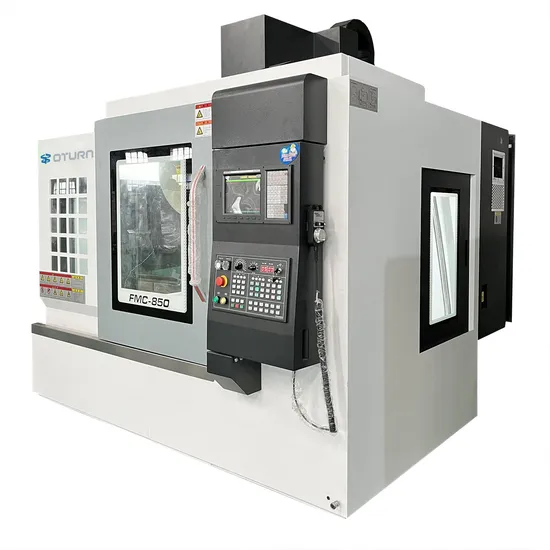

Fmc850 3 Axes Linear Rails High Speed High Precision Parts Machine CNC Machining Center CNC Milling Machine

Product Description

Product Description
This series of vertical integrated processing machines, advanced design concepts, solid mechanical structure, stability, smoothness, and movement combine to reflect high-precision, high-speed excellent performance, and high-capacity models. Suitable for high precision mold industry and precision metal processing industry.
The bed and herringbone column are made of densely baked castings with ribs. This casting has excellent stability and good shock absorption characteristics even under heavy cutting conditions. The worktable is fully supported by the integral saddle without any suspension. The four-rail design of the base ensures long-term rigidity and accuracy. The guide rails undergo induction hardening heat treatment and precision grinding. The plastic guide rails plus strong lubrication reduce surface friction and reduce wear.
Adopt well-known brands of high rigidity and precision linear slide rails, the process technology is like manufacturing bearings, with zero clearance and all-round bearing characteristics. Linear slide has low consumption, high precision and fast moving speed, up to 48m/min.
The servo motor is directly connected to the screw rod through a rigid coupling without backlash, which can ensure the processing accuracy. Even if it is a very complex task, it can also process sharp cut angles, which ensures the processing accuracy.
High-speed, high-precision, high-rigidity; excellent models for heavy-duty and heavy-cut, Y/Z axis adopts 45° roller linear guide, and Z-axis adopts heavy-duty six-slider design.
Each machine tool has undergone heavy-duty full-tool testing to ensure that even heavy-duty tools can run smoothly and change tools.

Product Parameters

Item	Unit	FMC-850
Machining range
X axis travel	mm	800
Y axis travel	mm	500
Z axis travel	mm	500
Distance from the nose of the spindle to the worktable	mm	150-650
Distance from the center of the spindle to the track surface of the column	mm	550
Worktable
Table size (X axis direction)	mm	1000
Table size (Y axis direction)	mm	500
Max. load of workbench	kg	500
T-slot	mm	5-18*90
Spindle
Spindle taper		BT40
Spindle transmission		Direct connect
Spindle speed	rpm	12000
Spindle power	kw	11/15
Feeding system
G00 rapid traverse (X/Y/Z axis)	m/min	X/Y/Z/48
Cutting feed movement	m/min	1-10000
Motor
Spindle motor	kw	11/15
Three-axis motor	kw	X/Y/Z/ 3.0
Lubrication motor	kw	0.025
Cutting motor	kw	0.46
Machine weight	kgs	5300
Machine size	mm	2700*2400*2600
Accuracy
Positioning accuracy	mm	0.003
Repeat accuracy	mm	0.002
Tool change time	s	1.6
