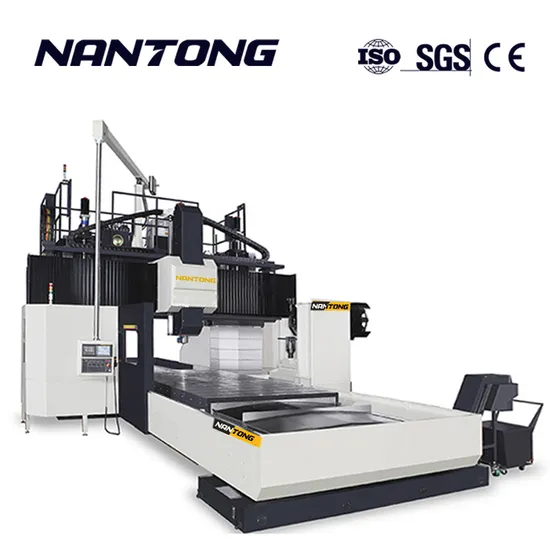

CNC 5-Axis with Moving Beam Milling Machining

Product Description

Machine Parameters

Model	Unit	DSK-6030	DSK-8030	DSK-10035	DSK-16040	DSK-20045
Travel
X axis	mm	6,200	8,200	10,200	16,200	20,200
Y axis	mm	3,100/3,600/4,100/4,600
Z axis	mm	1,000 (1,200 - opt.)
W axis		1,500 (2,000/2,500 - opt.)
Distance between columns (max. workpiece width)	mm	3,100/3,600/4,100/4,600
Work table
Length	mm	6,000	8,000	10,000	16,000	20,000
Width	mm	2,500 / 3,000/3,500/4,000
T slot (width x number x pitch)	-	28x11x180
Max. table load	kg	15,000	20,000	25,000	30,000	30,000
Spindle
Spindle motor	kW	22/26 (30/37 - opt.)
Spindle speed (gear type)	rpm	4,500 (6,000 - opt.)
Spindle taper	-	BT 50 / ISO 50 / CAT 50
Feed
Rapid feed-rate (X/Y/Z/W)	m/min	10/10/12/2		8/10/12/2
Cutting feed-rate	mm/min	7,000
Accuracy
Position accuracy	mm	±0.005/300; ±0.015/ full travel
		P0.035	P0.045
Repeatability	mm	±0.003
		Ps0.028	Ps0.03
ATC
Tool magazine capacity	pcs	32 (40/60/90 - opt.)
Max. tool length	mm	350
Max. tool weight	kg	20
Max. tool size (full tools)	mm	Ø125
Max. tool size (next pocket empty)	mm	Ø245
Others
Power consumption	kVA	65
Compressed air	kg/cm2	6.5
Machine weight (approx.)	tons	63	65	67	69	71
Floor space (LxWxH) (approx.)	m	13.0x 8.3(13.8x8.8)x 6.6	14.8x 8.3(15.8x8.8)x 6.6	17.3x 8.3(8.8)x 6.6	21.7x 8.3(8.8)x 6.6	26.1x 8.3(8.8)x 6.6

Machine Configuration

Automatic lubrication system

Spindle oil cooler

Air blast through spindle

Manual Pulse Generator

Working lamp

3-color alarm lamp

RS-232 interface

Heat exchanger for electrical cabinet

Water gun and air gun interface

Cutting coolant system

Twin auger chip removal system

Belt type chip conveyor with cart

X axis Heidenhain Linear Scale

Sub-table

3 axes manual pulse generator for mold processing

Coolant through spindle at 20/40/70 bar

Coolant through tool holder interface

Air conditioner for electrical cabinet

Transformer

Oil skimmer

Oil mist collector

Machine Property
An optimum main structure must be able to withstand the stresses from both the weight of the casting itself and
the reaction force generated during machining.
Nantong DSK Series is rigid enough to resist the deformation.
