Product Description

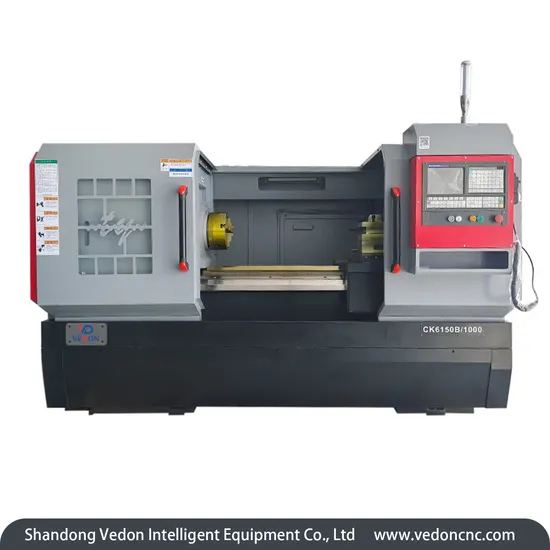

CK6150B Product Description
Introduction of the CNC lathe:
CK6150B machine tool is one of the series of CNC machine tools mass-produced by our factory. The machine tool has high economy and practicability. This series of machine tools is an ordinary CNC lathe developed and designed in accordance with the requirements of CNC machine tools on the basis of many years of production and development of CNC lathes in our factory. It has many excellent features such as good accuracy retention, strong rigidity, small thermal deformation of the spindle unit,good thermal stability, and maintenance-free. It can perform internal and external circle, arc, end face and thread turning processing for various disc and shaft parts. The machine tool has a wide range of versatility, and is especially suitable for batch roughing and finishing of parts in the machinery industry, automobile industry, and mold manufacturing industry. It is also suitable for teaching and research in educational departments.
Product Parameters

SPECIFICATION OF CNC LATHE MACHINE
Main specifications	Unit	CK6150B
Max. swing dia. over bed	mm	500
Max. swing dia. over carriage	mm	290
Bed width	mm	405
Z-axis travel	mm	1000mm/1500mm/2000
X-axis servo motor	NM	6
Z-axis servo motor	mm	10NM(1000mm/1500mm)15NM(2000mm)
X/Z rapid feed speed	mm/min	8/12
Spindle diameter	mm	Φ82
Spindle speed step		3
Spindle nose		A2-8
Spindle bore (dia)		Metric 90
Range of spindle speed	rpm	45-180 180-770 600-1600
Power of main motor	KW	7.5/11(2000)
Tailstock quill dia.	mm	75
Stroke of tailstock sleeve	mm	150
Tailstock quill taper		MT5
Chuck type		¢250 Manual
Section of tool shank		25*25
Turret type		4 Position electric 192*192
Workpiece accuracy		IT6-IT7
Workpiece surface roughness		Ra<3.2
Repeat positioning accuracy		X0.012 z0.016
Overall dimension (LxWxH)	mm	2900/3500/3900*1800*2100
Machine weight	KG	2700/3600/4200

Optional:
China Hydraulic 3 -jaw chuck;
China hydraulic station;
Movable thimble;
Sleeve: MT5/4.
Packaging & Shipping
Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd. is a comprehensive enterprise in China whois specialized in metal cutting machinery and tools, coming with selfimport and export rights. VEDONTOOLS supply a wide range of products and service to its global customers, including vertical machining center, milling machine, lathe, radial drilling machine CNClathe, HSS&TCT annular cutter, magneticdrill machine, diamond drill machine etc...
They are widely soldto morethan 50 countries and areas in Europe, South America, and Asia, relying on the reliable product quality, reasonable price and good after-sales service system. VEDONTOOLS follows the concept ofcredit management cooperation and win-win strategy, and it has good comments from society and clients. Here we sincerely hope to cooperate with you and create a bright future.
FAQ

Q1.Could I put my LOGO on it or paint my own color?
A:Yes, As long as the order quantity reach to the MOQ.
Q2.What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3.Could I order trail small order?
A:Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4.What points need to be confirmed before placing the order?
A:Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.
